16

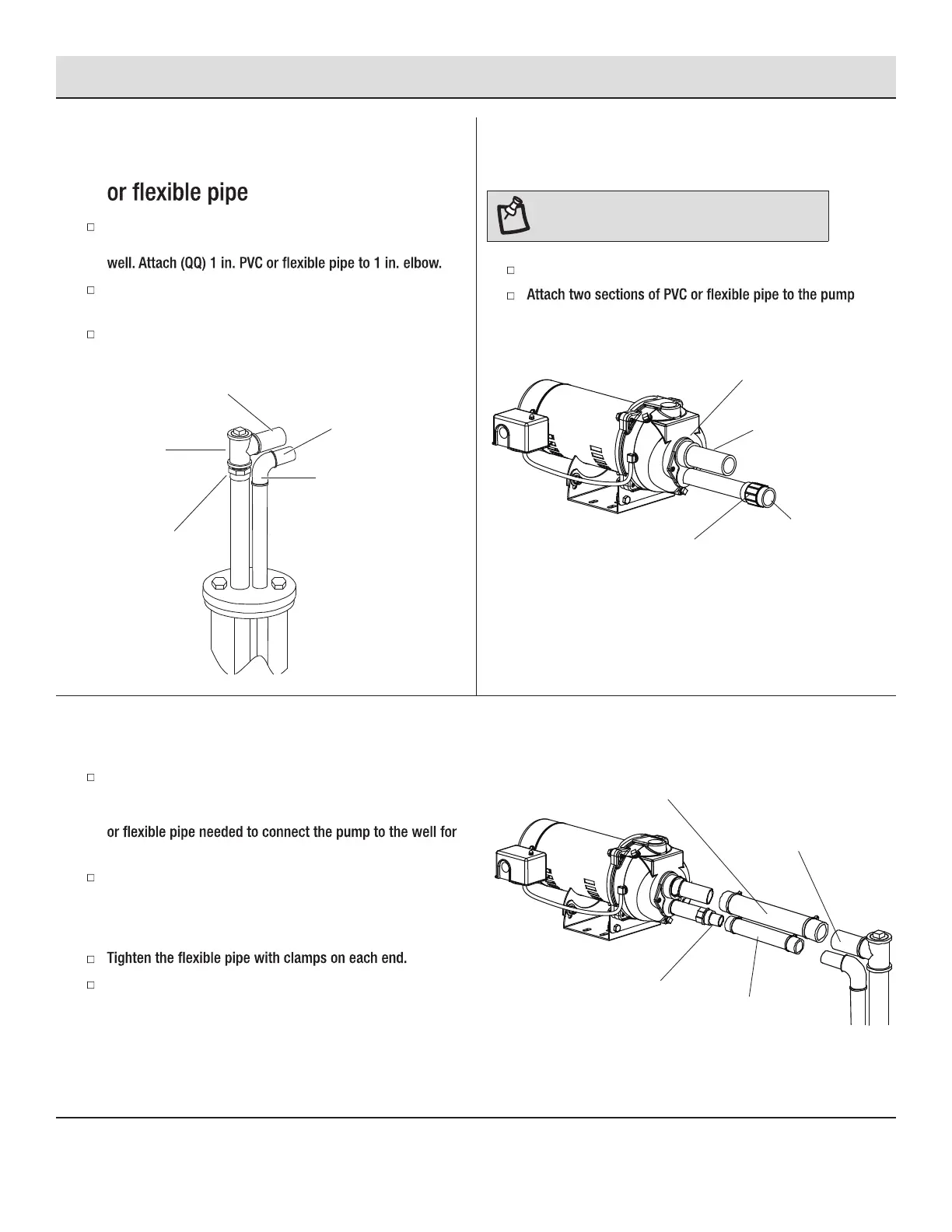

Deep Well Installation (continued)
6
Attaching a (RR) 1 in. PVC elbow and
(BB) 1-1/4 in. priming tee to the PVC
Attach a (RR) 1 in. PVC elbow and a (BB) 1-1/4 in. priming
tee (both facing the pump) to the pipes extending from the
Attach (PP) 1-1/4 in. Male adaptor to the 1-1/4 in. PVC pipe
from well.
Attach (EE) 1-/4 in. PVC or fexible pipe to (BB) 1-1/4 in.
priming tee.
(QQ) 1 in. PVC
or Flexible Pipe
(RR) 1 in. PVC Elbow
(PP) 1-1/4 in.
Male Adapter
(EE) 1-1/4 in. PVC Pipe
(BB) 1-1/4 in.
Priming Tee
7
Connecting rigid pipe to the
pump body
NOTE: If using PVC pipe to connect, a 1 in. x 3 in.
nipple is required.
Position the pump as close to the well as possible.
body (QQ) 1 in. pressure, and (EE) 1-1/4 in. suction.
8
Connecting the pipes from the well
to the pump
Measure the distance from the PVC pipe extended from the
check valve off the pump to the PVC pipe extending from
the priming tee from the well. This will be the length of PVC
both 1 in. and 1-1/4 in. pipe.
Using (II) Flexible PVC couplings or (FF) PVC couplings to
connect both ends of the 1-1/4 in. PVC pipe to the pump
and well end. Use the (SS) 1 in. PVC coupling to connect
both ends of the 1 in. PVC pipe to the pump and well end.
Ensure that the PVC or Flexible pipe slopes slightly
downward toward the well to prevent air trapping in the
pipe.
(QQ) 1 in. PVC or
Flexible Pipe
(PP) 1-1/4 in.
Male Adapter
(EE) 1-1/4 in.
PVC Pipe
(CC) 1 in. Female
Adapter
(II) Flexible Couplings or
(FF) PVC Couplings for
1-1/4 in. Pipe
(VV) 1 in. Flexible
PVC Couping
(EE) 1-1/4 in. PVC or
Flexible Pipe to connect
Pump piping to well piping
ro CVP .ni 1 ) S S(
Flexible pipe
