Discharge Pipe and Pressure Tank Connections (continued)

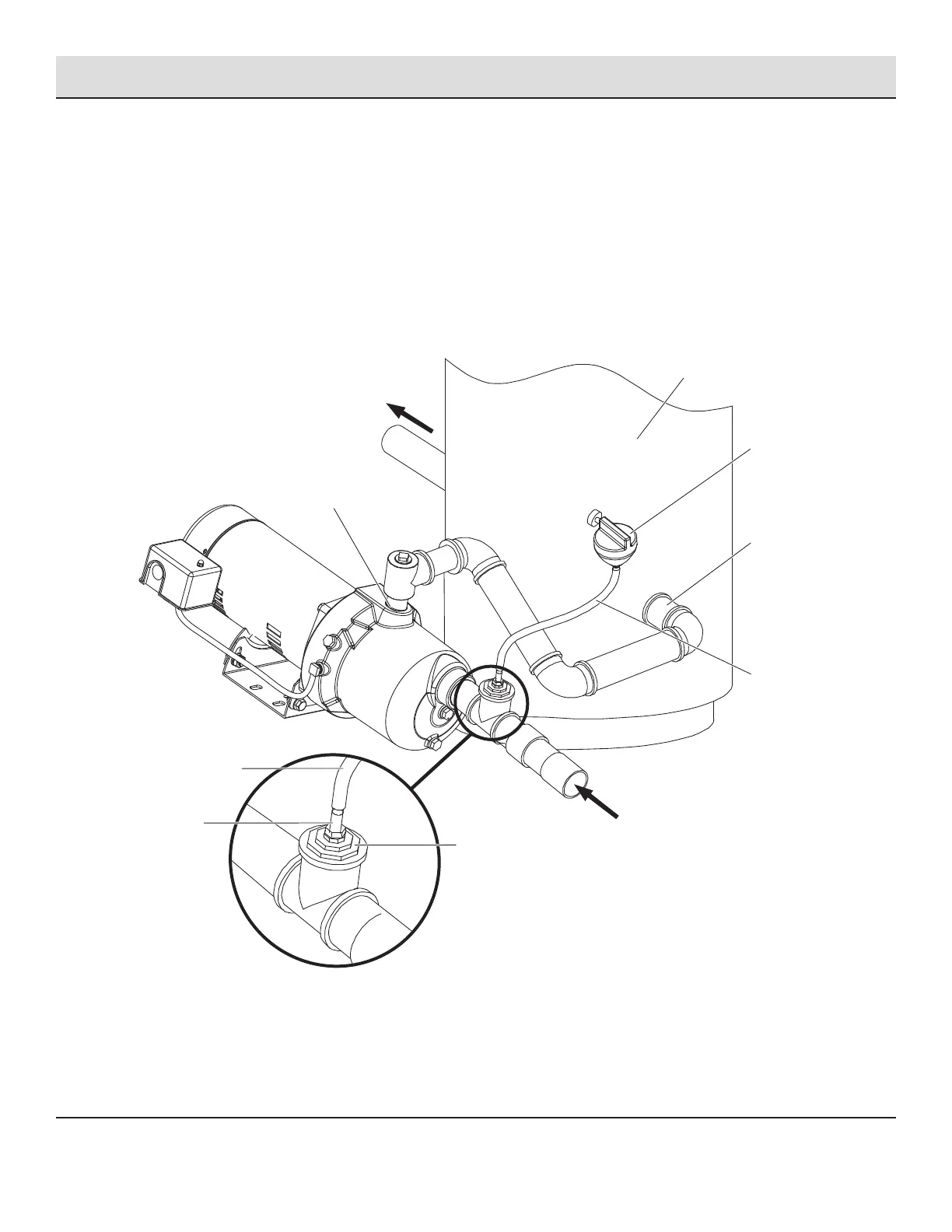

STANDARD TANK CONNECTION
□ Install a tee in the pump discharge port.
□ Run a pipe from the pump discharge port to the inlet port of your tank. The pipe size must be at least as large as the discharge port.
□ Install a tee with reducing bushings in the suction pipe as shown.
□ Install a barbed tting in the smallest bushing (1/8" NPT).
□ Run the AVG tubing from the barbed tting on the suction pipe tee to the port in the AVG mounted on the tank. See the instructions
provided with the tank and the AVG for details. The AVG port location may vary.
Congratulations! You have just completed the tank connection for your jet pump.
To Household
Water System
Tank
Suction Hose
From Well
Pump
Discharge
Port
Air Volume
Control (AVC)
AVC Tubing
Reducers
1/8 in. NPT
Barbed Fitting
Install a tee in the suction line.
Install reducing bushings down to 1/8 in.
NPT for the barbed tting. Install the AVC
tube between the barbed tting and the
port on the bottom of the AVC
(which is mounted on the tank).
AVC Tubing
Tank Inlet Port
