Installation (continued)

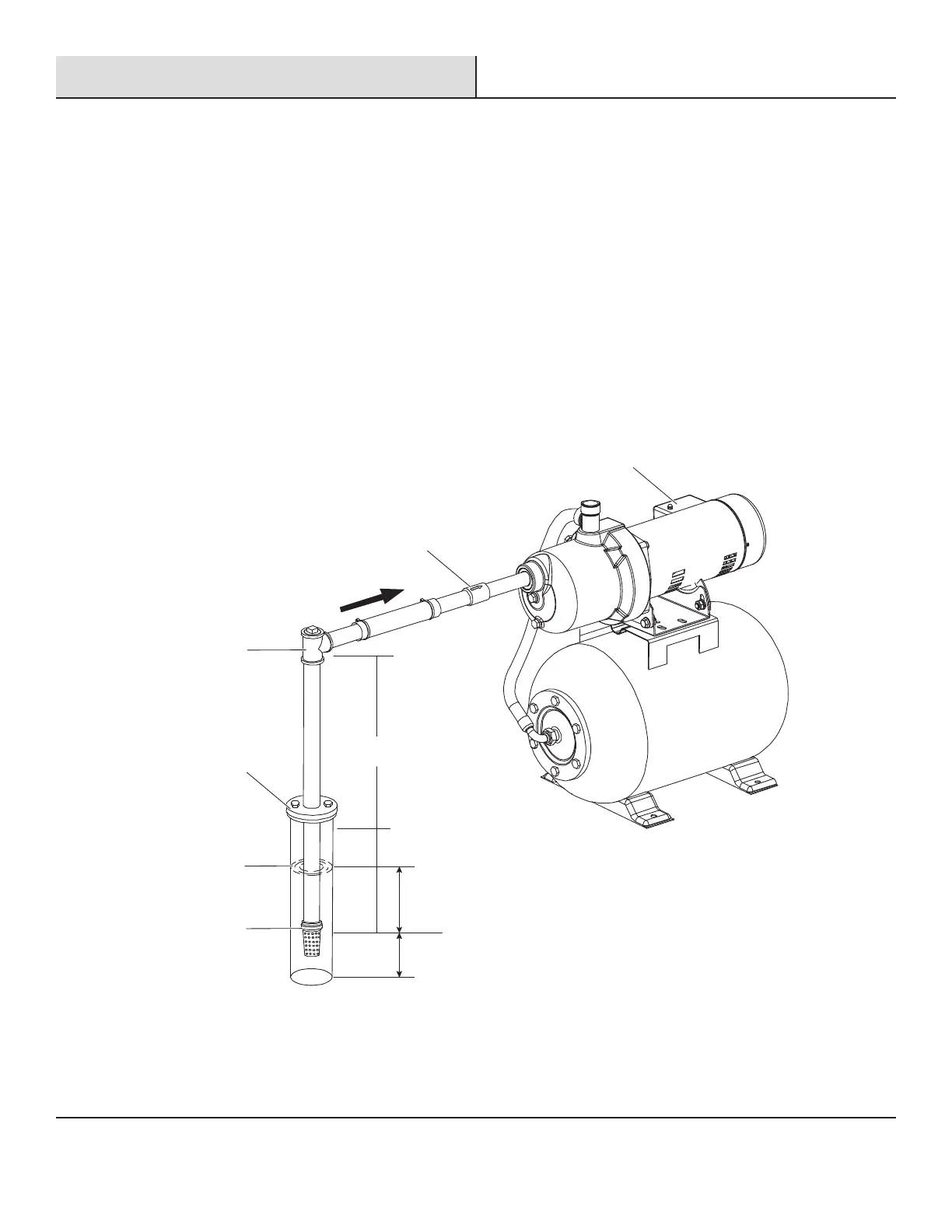

CASED WELL INSTALLATION, 2 IN. OR LARGER CASING
□ Install the pressure gauge in the pump housing.
□ Mount the pump as close to the well as possible.
□ Assemble the foot valve, strainer, and well pipe. Make sure that the foot valve works freely.
□ Lower the pipe into the well until the strainer is 5 ft. above the bottom of the well. It should also be at least 10 ft. below the well’s
water level while the pump is running in order to prevent the pump from sucking air. Install a sanitary well seal.
□ Install a priming tee, priming plug, and suction pipe to the pump. Connect the pipe from the well to the pump suction port, using the
fewest possible ttings - especially elbows - as ttings increase friction in the pipe (however, include a foot valve). The suction pipe
should be at least as large as the suction port on the pump. Use thread tape on threaded pipe joints. Support the pipe so that there are
no dips or sags in the pipe, so it does not strain the pump body, and so that it slopes slightly upward from the well to the pump (high
spots can cause air pockets which can air lock the pump). Seal the suction pipe joints with thread tape. Joints must be air-tight and
water-tight. If the suction pipe can suck air, the pump cannot pull water from the well.
You have just completed the suction piping for your new shallow well jet pump.
Please go to Pages 10 and 11 for discharge pipe and tank connections.
Water
Level
Priming Tee
and Plug
Check Valve
Suction Pipe
From Well
Pressure Switch
Sanitary
Well Seal
Well
Casing
Foot Valve
(Check Valve
on foot of
Suction Pipe)
25 ft Max.
10 ft Min.
5 ft Min.
To Next Page
