Exterior Equipment
into aft facing seats. Sliding bolt latches and a pull
to release latch secure the seats in the forward or
aft facing positions. To rotate the seats to the aft
facing position, release the sliding bolt latches on
each side of the seat by pressing the latch handle
and sliding the bolt down. Then pull the latch
handle at the center of the seat base to release
the automatic latch. Rotate the seats slowly to the
aft facing position. Release the center latch handle
as the seats rotate so the latch mechanism will
automatically engage when the seats reach the
aft facing position. With the center latch engaged,
secure the seat by sliding each bolt latch up until it
locks in the secured position. Repeat this procedure
to rotate the seats to the forward facing position
for the helm.
Aft Facing Seat Footrest
A folding footrest is located on the rear of the seat
base. Two sliding bolt latches on each side of the
footrest secure it in the closed position. To lower the
footrest, hold the it against the seat base with one
hand, then slide the latch bolts inboard to release
the latches. When the latches are released, the
footrest can be rotated down.
To stow the footrest, rotate the footrest up against
the seat base and slide the bolts to secure the
footrest. Rotate the bolts down to secure them in
the latched position.
Always make sure the footrest is secured with the
latches when it is folded in the stowed position.
Seat Base Storage
Boats not equipped with an optional Seakeeper
will have the engine and house batteries installed
in the compartment below the seats. There will
also be tackle and gear storage drawers accessed
through opening doors in the side walls of the
base.
Boats equipped with the Seakeeper option will
have the Seakeeper, Seakeeper control panel
and the cooling pump mounted in the helm base
storage compartment. Seakeeper components are
accessed through doors on each side of the base.
The engine and house batteries are mounted in
a storage area located in the forward head com-
partment bulkhead.

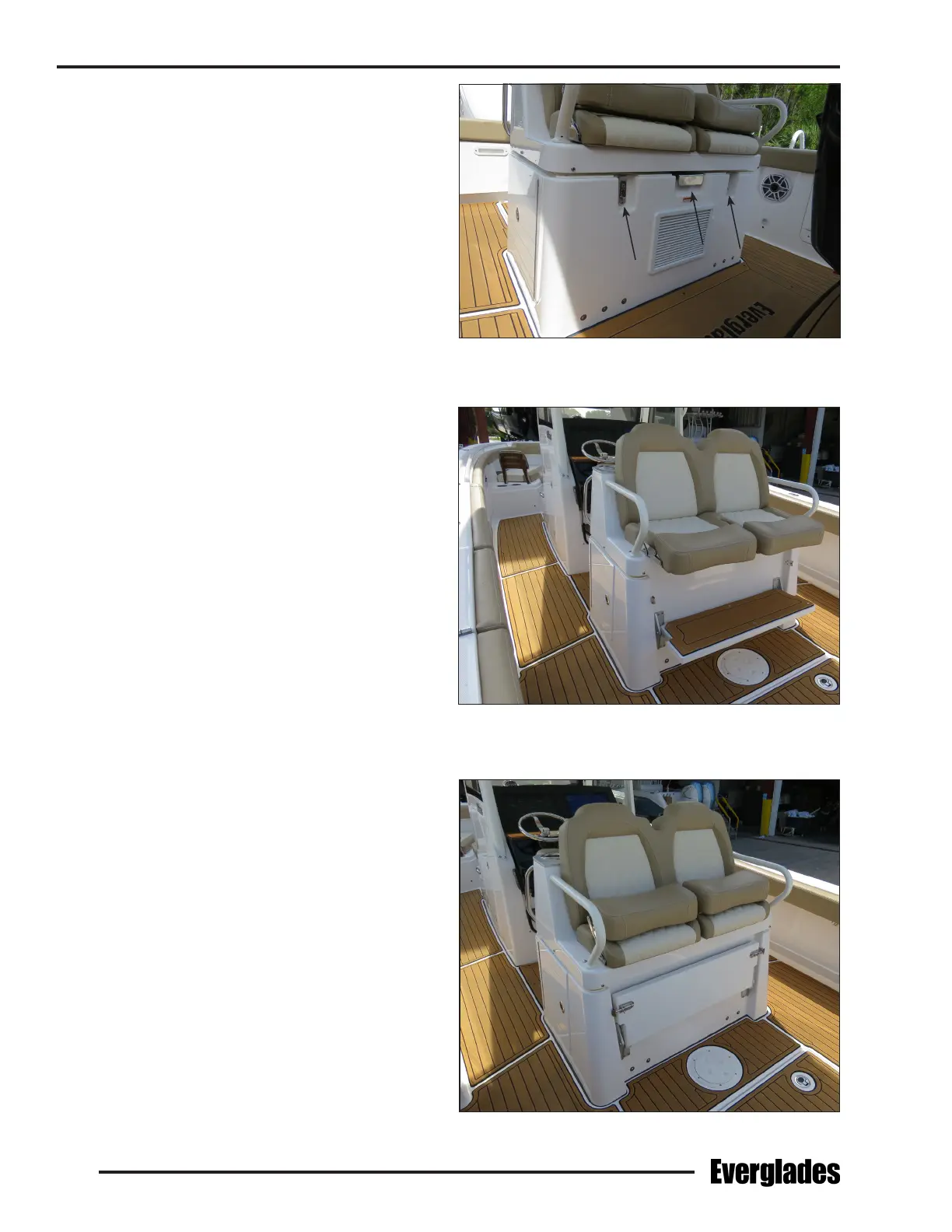

Aft Facing Seat Footrest Folded to Seat Base
Aft Facing Seat Footrest Deployed
Helm Seat Base Latches
