Exterior Equipment
11.6 Bow Area Seats & Compartments
Bow Seats and Storage Compartments
There are two storage compartments located in the
bow below the port and starboard seats that drain
to the cockpit sole. The hatches are equipped with
gas charged springs that help raise the hatches and
hold them in the open or closed position.
“Push to close” latches on the rear of each hatch
secure them in the closed position. The bow seat
cushions are removable and are secured to the
hatches with snaps. The cushions should be re-
moved and stored in the head compartment or
another safe location out of the weather when the
boat is not being used.
The bow seats are equipped with removable
backrest cushions that convert each bow seat to a
forward facing lounge. The backrest cushions are
equipped with supports that slide into receivers
at the rear of each bow seat. The backrests are
removed and stored when not in use.
To install the backrests, slide the backrest sup-
ports into the receivers in the bow seat base and
push rmly. Rock the cushion slightly if necessary
as you push until the supports seat against the
seat base.
To remove the backrests, slide the backrest sup-
ports out of the receivers in the seat base. Rock
the backrest slightly if necessary to work it out
of the receivers.

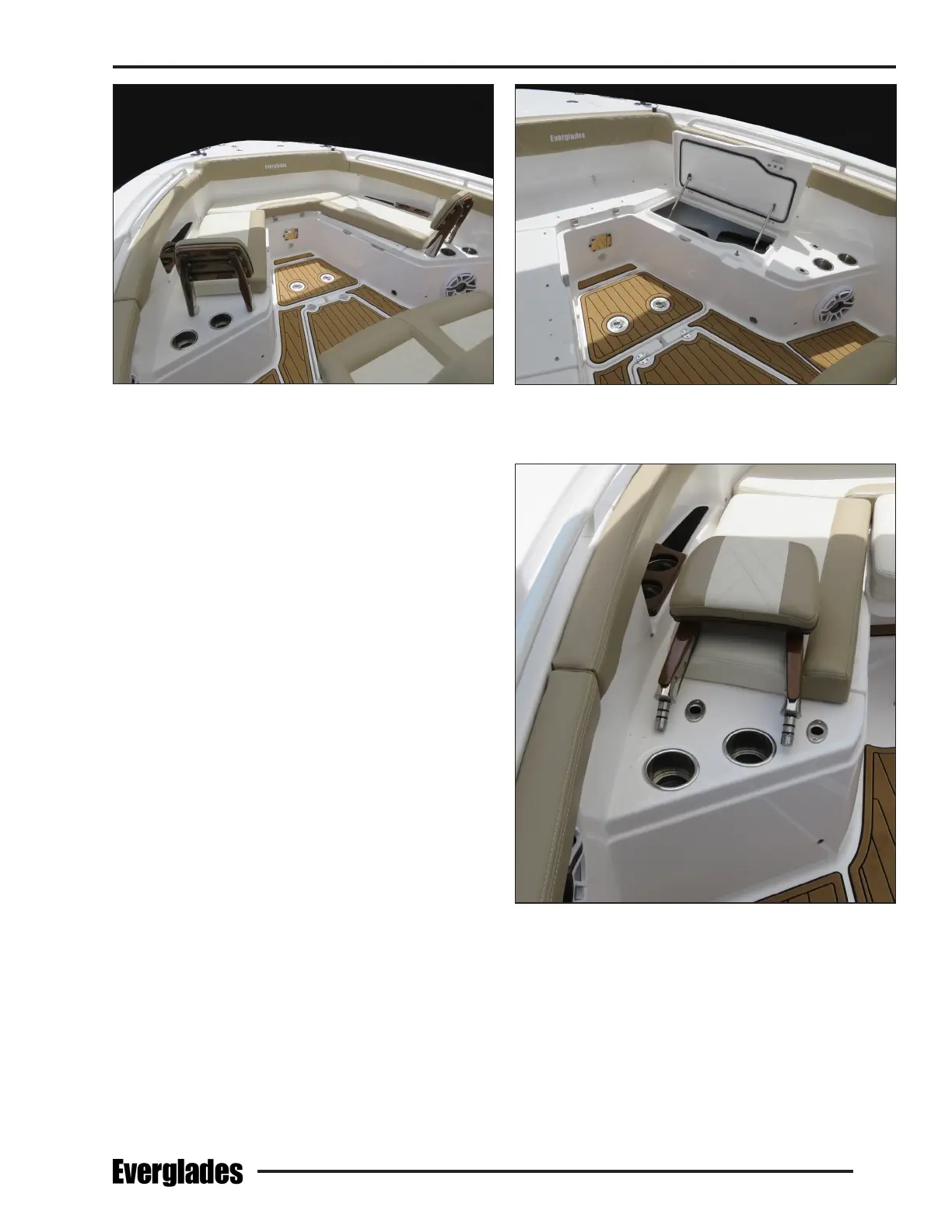

Bow Seats & Storage Compartments
Bow Seat Backrest Supports & Receivers
Bow Seat Storage Compartment
