Electrical System
6.6 12 Volt Helm
Accessory Switch Panels
Digital Switch System
Your boat is equipped with a digital switching system
that provides reduced complexity and increased
switching options for the lights and accessories the
switches control. The system consists of control out-
put modules, digital switch panels and touch screen
switches in the helm electronics display panels.
Each circuit is protected by individual circuit breakers
built into each control output module. The control
output modules are where the switching of input
and output current load to the selected accessories
takes place. Controllers in each module recognize
low voltage, digital signals from the switches and
activate the correct programed combination of cir-
cuits for each switch function (i.e. the navigation
lights switch actually forces the forward navigation
lights and the anchor light to be turned on at the
same time).

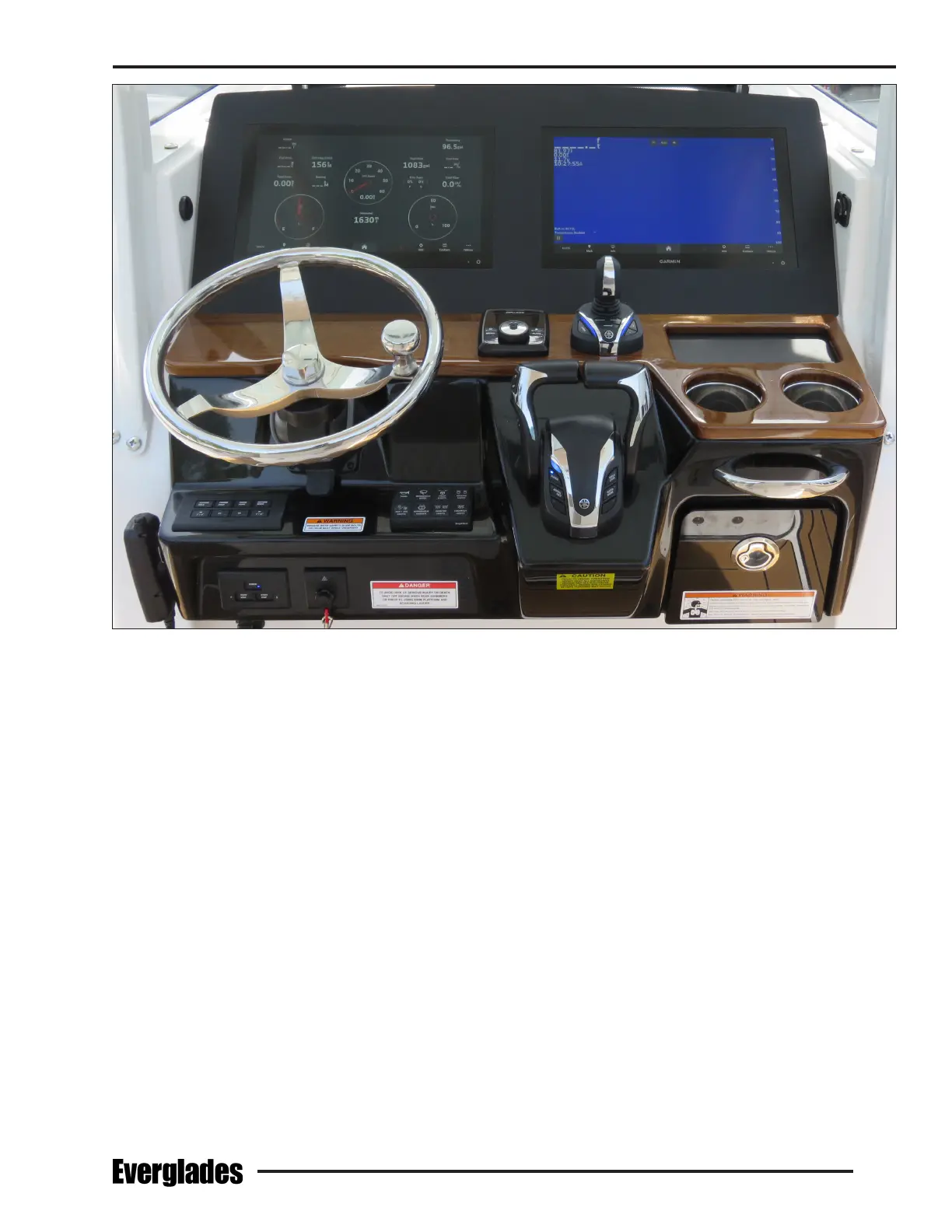

Helm Switch Panels
Interior or cockpit light switches may be programed
to activate dierent colors for multicolored LED lights
activated by the switches as well as their ON/OFF
status. All switches in the push button switch panels
are a “press to activate” and “press to deactivate”
design. LED lights in each switch indicate the circuit
is activated.
This section provides a general description of the
accessories typically activated by the digital switch
panels. Switch programing is unique to each boat,
depending on optional equipment installed at the
factory or by your dealer and display preferences
chosen at the time of manufacture. Consequently,
switch programing on your boat may be dierent.
Refer to the digital Control System section in this
chapter and the Garmin Switch system operation
manual for additional information on the digital
switching system. Your dealer will also provide you
with hands-on instructions at the time of delivery.
