116
Exterior Equipment

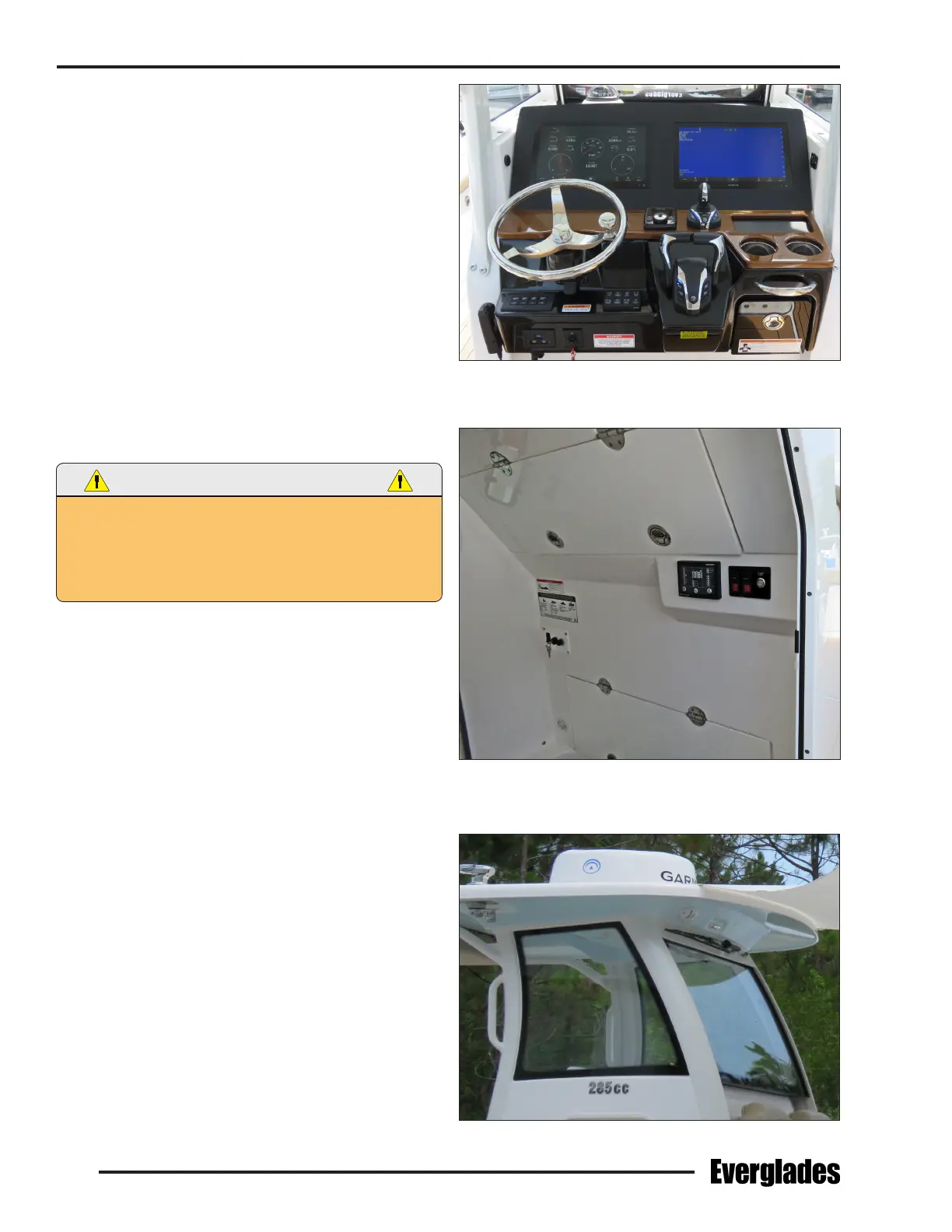

11.7 Helm & Console
Helm
The steering, engine controls, engine instruments
and switches for exterior equipment and naviga-
tion lights are located on the helm station. An area
for ush mounted electronics is located forward of
the steering and engine controls. The helm is also
equipped with cup holders, grab rails and lockable
storage. There are also 12 volt accessory plugs
and a USB plug.
Large hinged doors in the head compartment
provides access to the back of the helm panel for
servicing helm equipment and installing electronics
or other accessories. There are also fuse panels
and digital switching control modules with circuit
breakers that provide protection for electronics,
helm accessories or other equipment added by
you or your dealer.
VISIBILITY FROM THE SEATED POSITION AT THIS HELM
STATION IS LIMITED. AVOID SERIOUS INJURY OR DEATH FROM
COLLISIONS. OPERATION FROM A STANDING POSITION MAY
BE NECESSARY TO MAINTAIN A LOOKOUT AS REQUIRED BY
RULES OF THE ROAD.
Windshield
Your boat is equipped with a tempered safety glass
windshield. The front and side panels are also
tempered safety glass.
The windshield slides down to provide ventilation at
the helm and improved visibility. It is lowered and
raised by hydraulic cylinders on each side of the
windshield. The cylinders are activated by an elec-
tric hydraulic pump located in the head compart-
ment bilge that is controlled by the WINDSHIELD
UP/DOWN switches in the helm switch panels or
touch screen display.
You should always monitor the travel of the wind-
shield as it is opened or closed and be ready to re-
lease the switch immediately when the windshield
reaches the full up or full down position. Refer to
the Ventilation chapter for instructions on operat-
ing the windshield.
The windshield wiper and washer is standard equip-
ment on your boat. A special lockout mechanism
prevents the windshield wiper or washer from ac-
tivating unless the windshield is closed. You should
always make sure the windshield is in the full up
position before activating the windshield wiper.
Helm Equipment Access Doors in Head Compartment
Helm
Windshield
