Concrete or Masonry

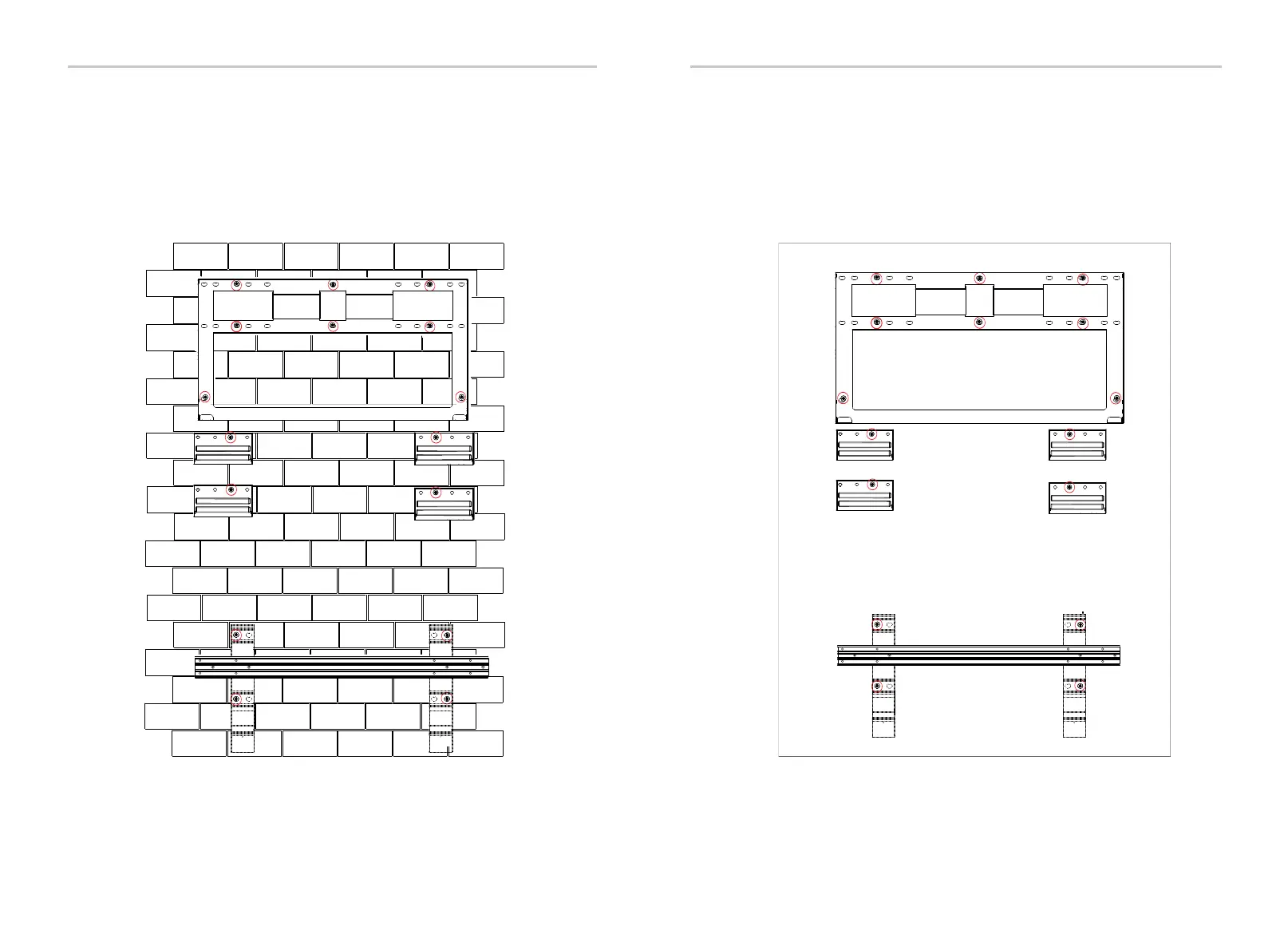

If anchoring to concrete or masonry wall, use 8 screws with washers
respectively for inverter and battery and make sure the screws are at least
1.49 in (38 mm) away from the edge of bricks or blocks. Punching holes
spaced at 24 inch is recommended.
Scheme E
Mechanical InstallationMechanical Installation
37
36
Steel material of sufficient thickness
If anchoring to steel material, use 8 screws with washers respectively for
inverter and battery. Punching holes spaced at 24 inch is recommended.
Scheme F
