Mechanical Installation
40
Front view of battery module
WARNING !
If the Base is shifted after placing a Battery Module, move it to its
original location according to the mark previously drawn.
d) Manually remove the top and bottom dust cover of the battery module and
catch hold of the handle to stack the battery module to the base. Make sure that
each connecting pole of the battery module or base is well pluged into the slot of
the next battery module which is on the bottom of the module;
WARNING !
During installation, please make sure battery port is not short-circuited.
Mechanical Installation
41

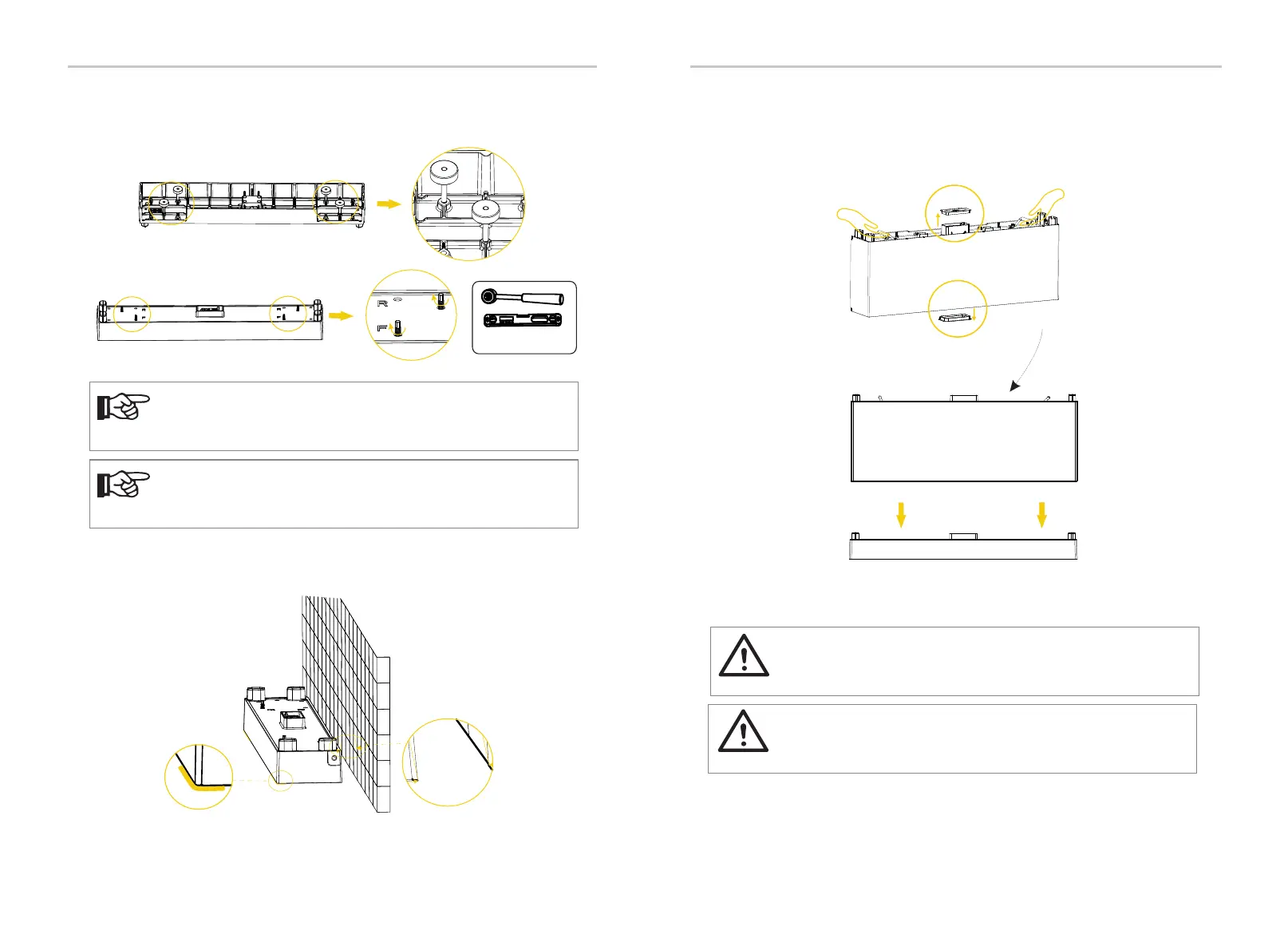

b) Insert M8*85 Adjustment Screws from the bottom of Base, to ensure
that the Base is even.
NOTE!
Clockwise turn the adjustment screws to lower down the base.
Anticlockwise turn the adjustment screws to lift up the base.
c) Locate the base 1.57 in/40 mm away from the wall, accurately mark the
location of the base on both sides with a marker;
1
.
57
in
4
0 m
m
1.5
7
in
40 mm
Mark
NOTE!
Use a spirit level to measure the sides of the Base to ensure they are
even.
Bottom view
Top view
M8*85 × 4
To Next Page
