Mechanical Installation
42

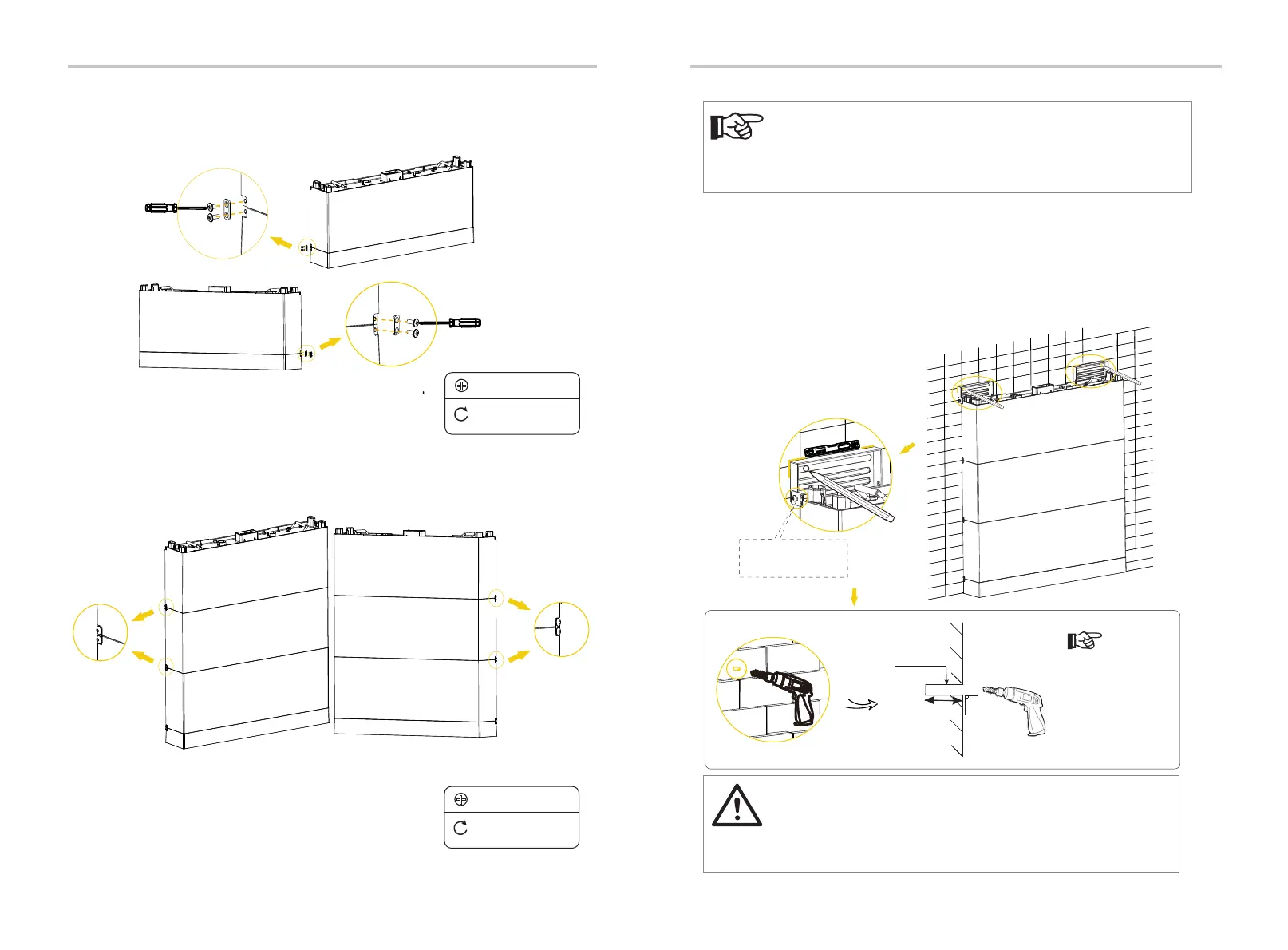

e) Mount the fixing plate (2 holes) using M5 * 10 cross screw, and secure
M5*10 screws (2 for each side) to connect Base and Battery Module;
f) Place two battery modules in turn, and secure both left and right sides with
screws (4XM5*10 countersunk screw);
M5
8.8 lbf.in /
1.0 N·m
M5
8.8 lbf.in /
1.0 N·m
Mechanical Installation
43
g) Mount the bracket of the battery module;
(1) Attach M5 * 10 screw to Wall Bracket but be sure not to tighten;
(2) Place such Wall Bracket to the wall, align its holes to the holes on the Battery
Module, and use a spirit level to measure the Wall Bracket to ensure it's even;
(3) Accurately mark the location of the Wall Bracket on both sides with a pen;
(4) Draw circles according to the actual stub spacing;
(5) Remove the Wall Bracket, and then drill the two holes (at least 3.54 in./90 mm)
by a Drill (Ø 0.39 in./10 mm).
Attach screw but
not tighten
Mark
CAUTION!
Please re-mount the dust cover to the battery module before drilling
holes to avoid dust falling into the interface and do remember to
remove the dust cover again after the installation of wall bracket
completed.
Electric drill dust
collector is
recommended.
Note!
Ø 0.39 in./10 mm
for Wall Bracket
≥3.54 in
/90mm
90°
NOTE!
In the case of the concrete wall, please perform the following
steps strictly.
In the case of the solid wood wall, please go directly to step I.
