Mechanical Installation

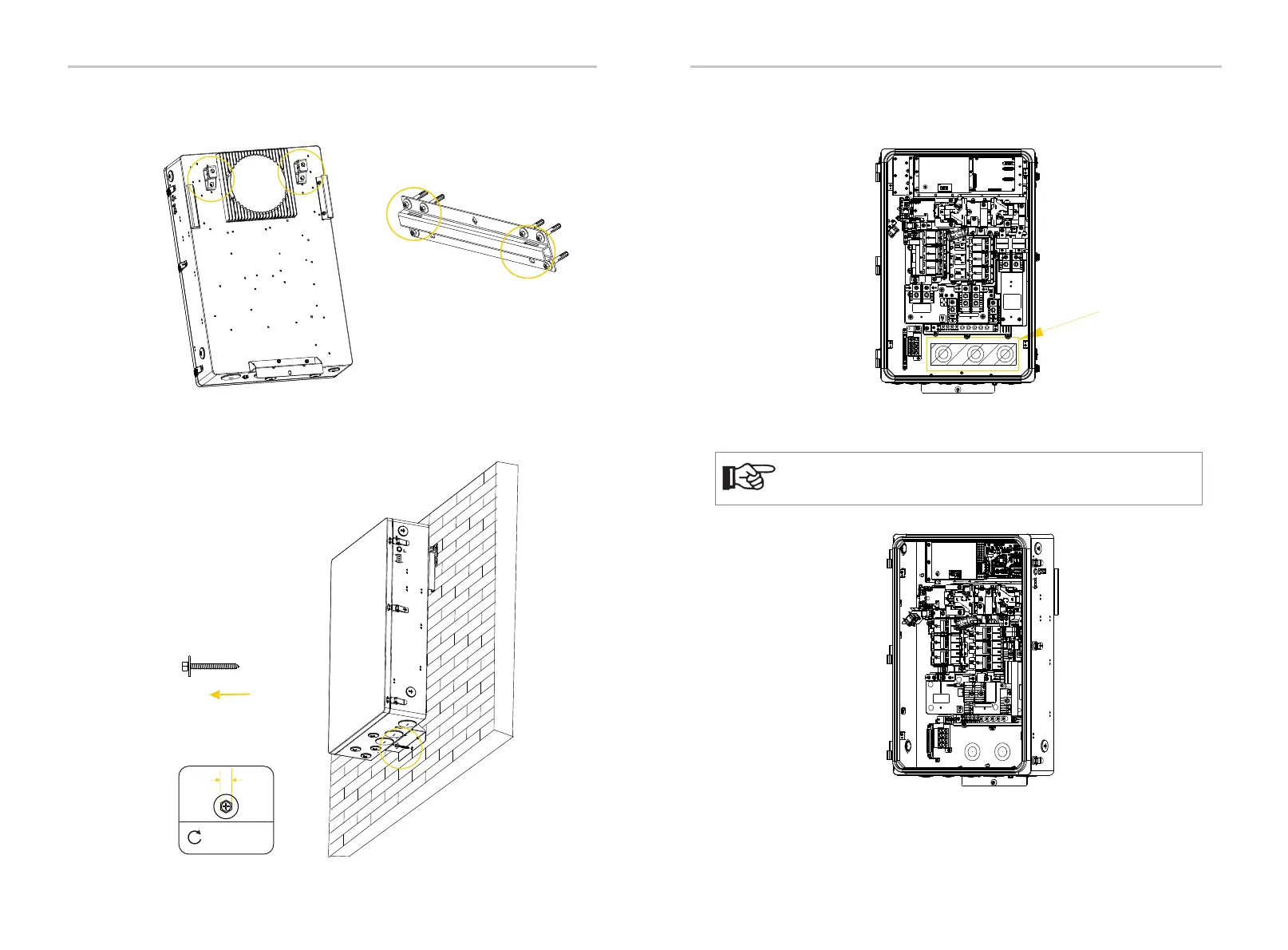

d) Hang the EV-SB on the bracket. Please make sure the cleat is well seated
on the bracket.
e) Secure the EV-SB by screwing in the tapping screw with washer on the
bottom of EV-SB.
56
Mechanical Installation
57
Rear entry knockouts are available. (If needed)
a) These three holes correspond to the holes below the perforated paper.
26.5 lbf.in /
3.0 N·m
10
mm
b) Drill the hole with a hole cutter. Choose 1 inch or 2inch size (Metal chips
must be cleaned after drilling)
NOTE!
If used, water tight fittings are required.
