Mechanical Installation
54

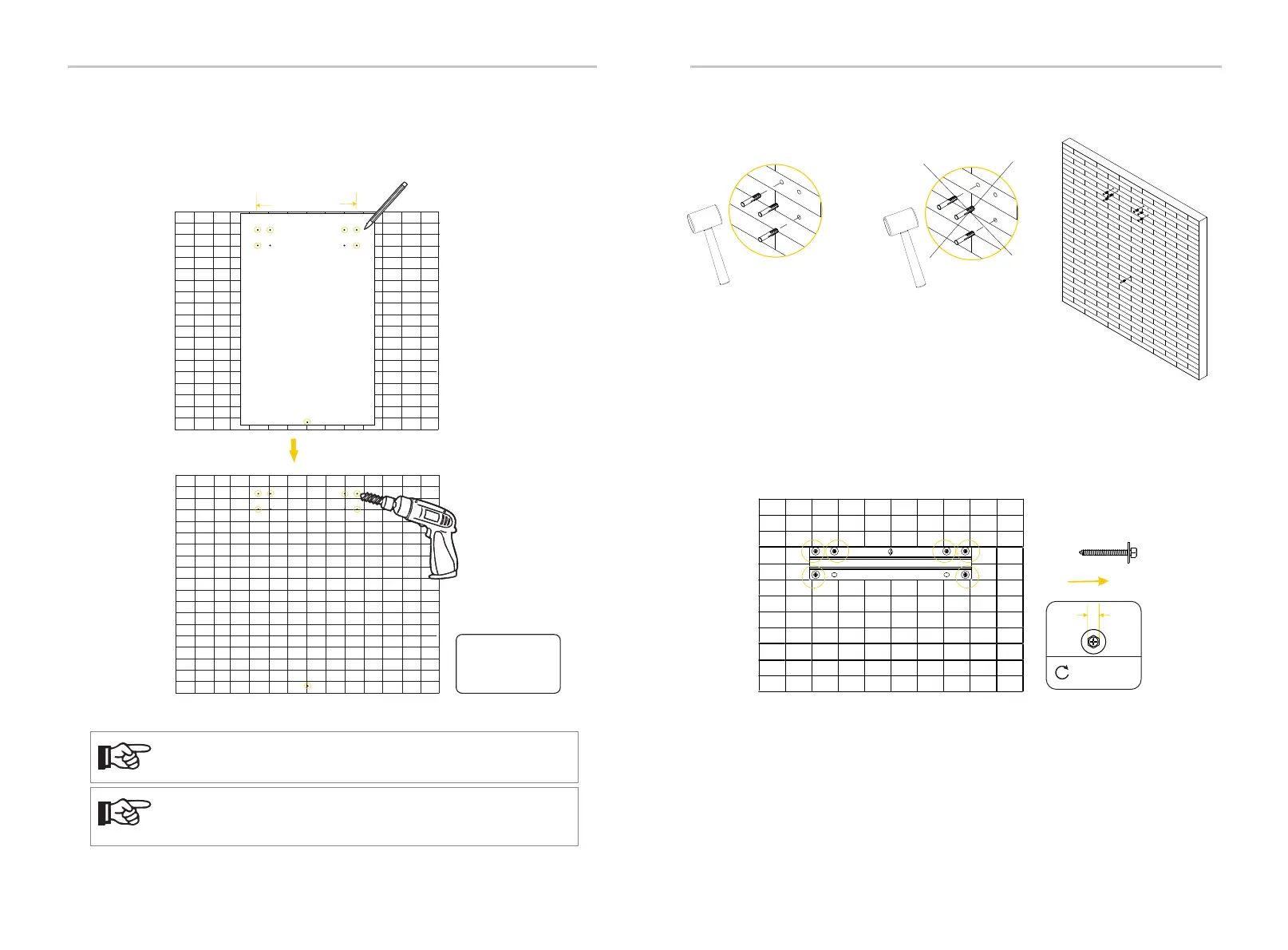

Step 3: Mount the EV-SB
a) Use the mounting reference paper as a template to mark the screw hole
location on the wall; And drill five holes on the wall.
NOTE!
The inner-side hole of the bracket is 12 in / 305 mm.
b) Use mallet to knock the five expansion tube into wall (This step can be
ignored in case of wooden wall).
c) Secure the bracket on the wall with tapping screw and washer using
torque wrench. Please hold the bracket firmly to the surface of the wall when
fixing bracket.
For solid concrete wall, please use Φ10 drill.
NOTE!
Mechanical Installation
55
16 in / 406 mm
Depth:
2.16 in / 55 mm
Φ4 drill
For wooden wall,
this step is not required.
For solid concrete wall,
this step is required.
26.5 lbf.in /
3.0 N·m
1
0
mm
