Mechanical Installation
52

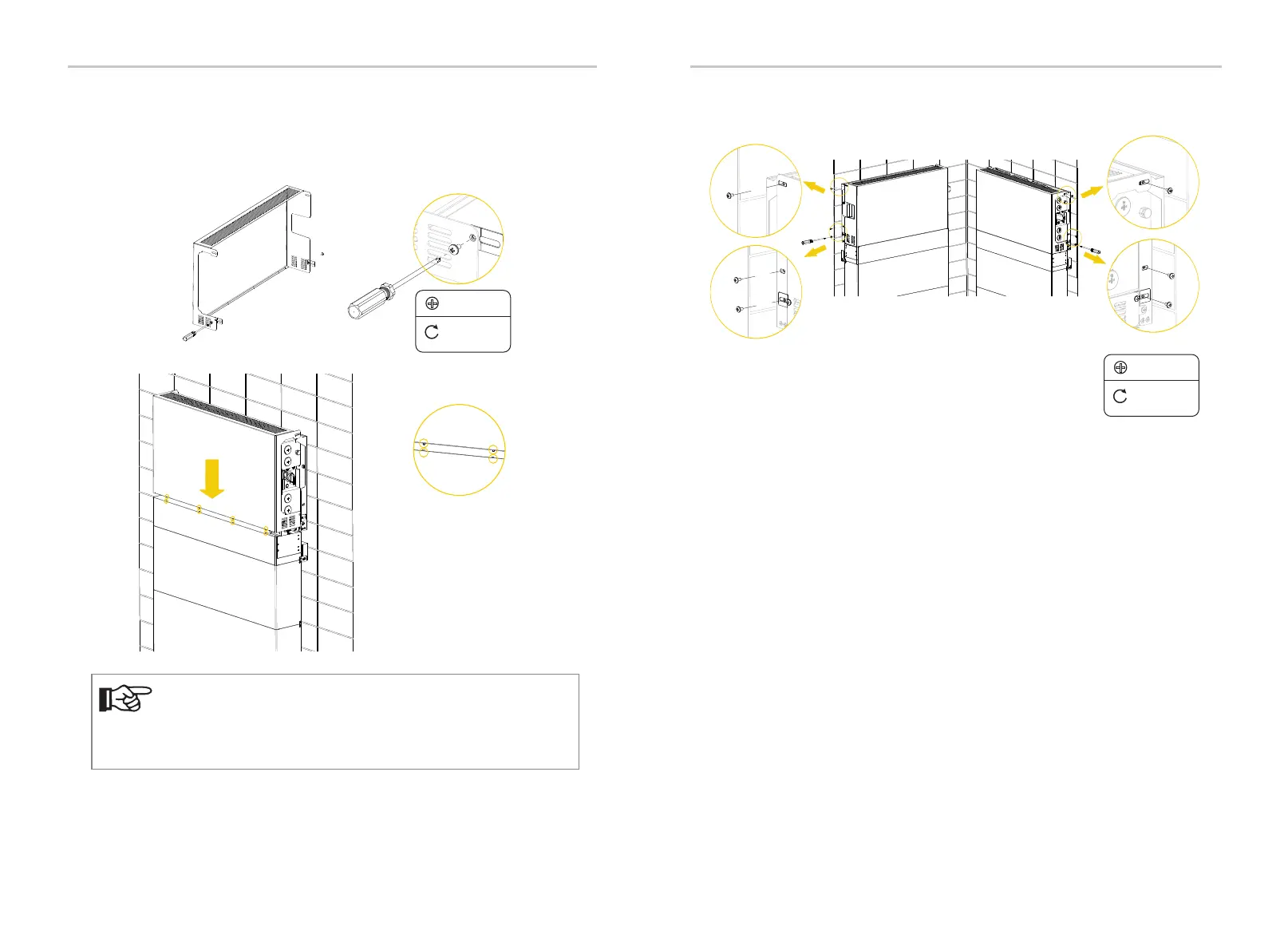

h) Pre-mount the fixing plate on the two sides of metal cover and mount
the metal cover on the inverter. Please make sure the four dowel pins are inserted
into the holes of BMS and adjust the whole system (inverter and battery) to be
leveled;
NOTE!
Before mounting the metal cover, the wiring connection between
battery and inverter must be completed. For detailed information
about how to connect the battery to the inverter, please refer to
Chapter 8 and 9 “Electrical Connection”.
Inverter
BMS
Dowel pins
Pins holes
i) Fix the metal cover with six M5 screws.
M5
8.8 lbf.in /
1.0 N·m
Left side view
Right side view
M5
8.8 lbf.in /
1.0 N·m
Mechanical Installation
53
