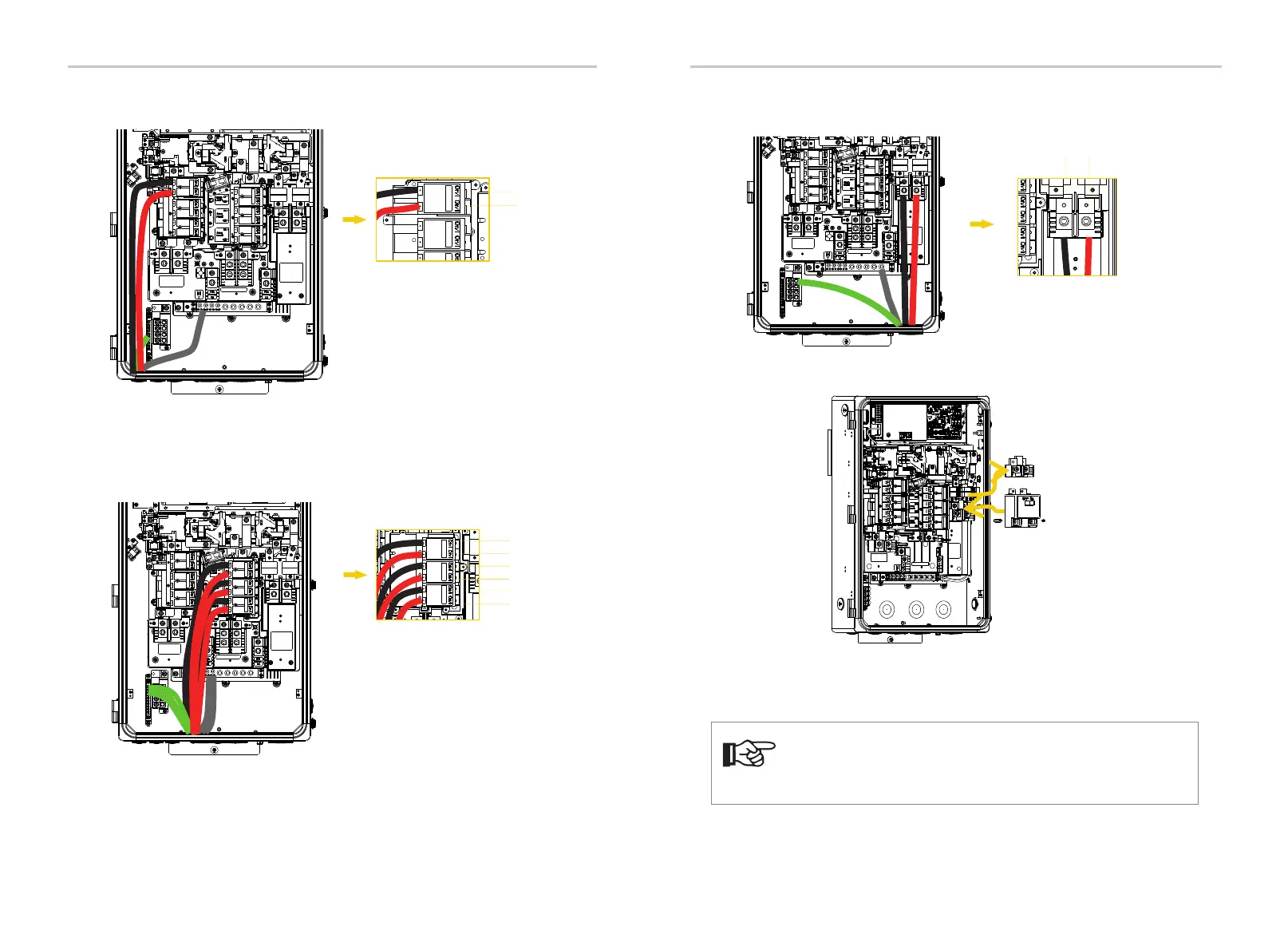

Wiring Connection on the EV-SB
Wiring Connection on the EV-SB
88
89
Ÿ Connect the generator conductors to the EV-SB terminals
L2
Connect the smart load conductors to the EV-SB terminals
Ÿ Connect the grid conductors to the EV-SB terminals
NOTE!
After installing the main breaker, lugs feed opposite bus.
L1 L2
Installing a main breaker
Before installing a main breaker
For the specific requirement of cable and torque, please refer to "Appendix A:
Wiring and Breaker Requirement".
For the specific requirement of cable and torque, please refer to "Appendix A:
Wiring and Breaker Requirement".
For the specific requirement of cable and torque, please refer to "Appendix A:
Wiring and Breaker Requirement".
L1
L2
L1
L2
L1
L2
L1
Grid Breaker
Ÿ
To Next Page
