Wiring Connection on the EV-SB
Wiring Connection on the EV-SB

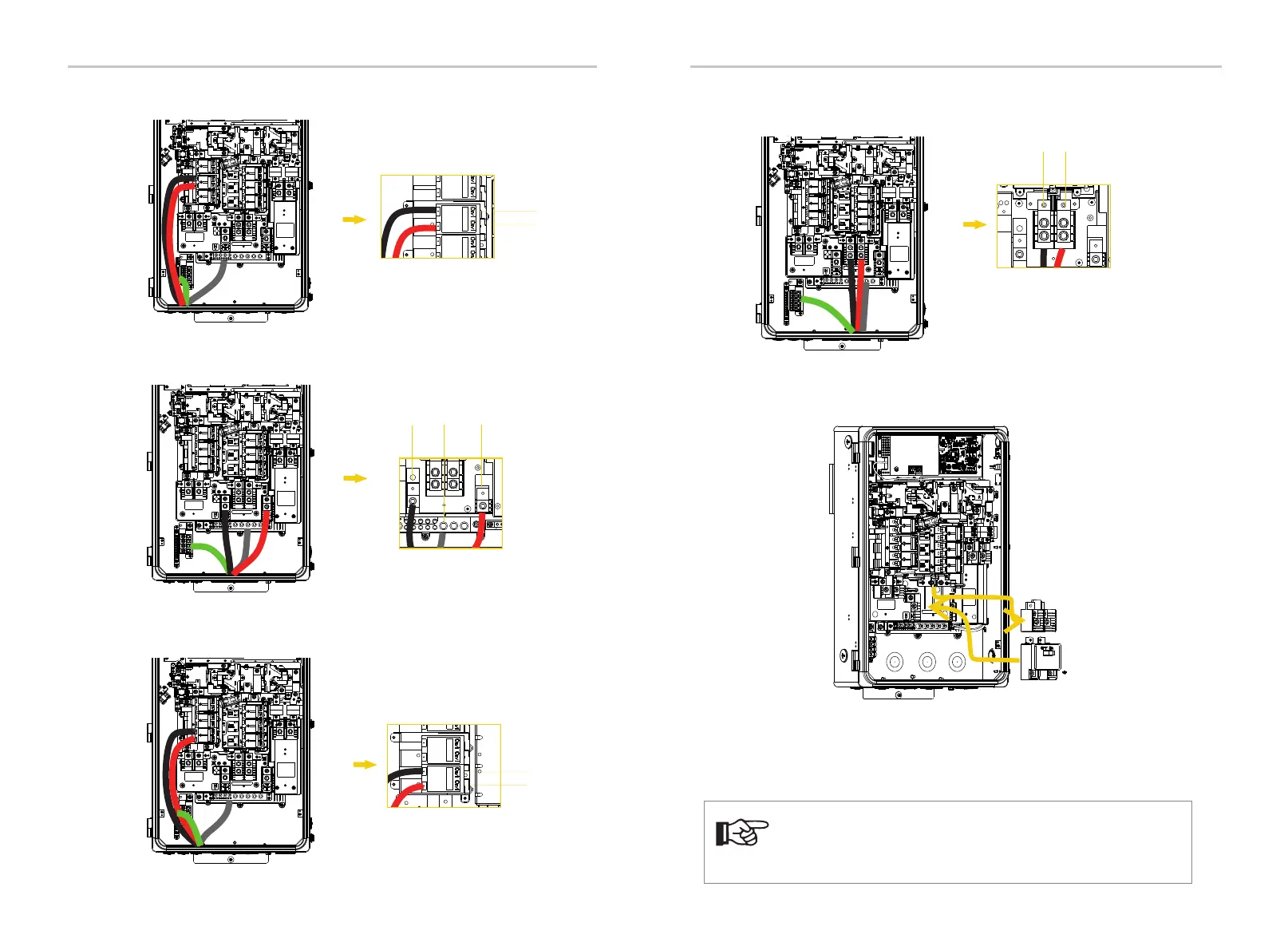

Ÿ Connect the solar conductors to the EV-SB terminals
Ÿ Connect the non-backup conductors to the EV-SB terminals
Ÿ Connect the ESS 1 conductors to the EV-SB terminals
For the specific requirement of cable and torque, please refer to "Appendix A:
Wiring and Breaker Requirement".
For the specific requirement of cable and torque, please refer to "Appendix A:
Wiring and Breaker Requirement".
L2
L1
L2
L1
L1 N L2
For the specific requirement of cable and torque, please refer to "Appendix A:
Wiring and Breaker Requirement".
Ÿ Connect the backup conductors to the EV-SB terminals
NOTE!
After installing the main breaker, lugs feed opposite bus.
Installing a main breaker
Before installing a main breaker
For the specific requirement of cable and torque, please refer to "Appendix A:
Wiring and Breaker Requirement".
Backup Breaker
L1 L2
90
91
