POWERHEAD INSTALLATION
11
Place the shift rod in the shift rod lever. Install the
retaining pin and washer. Tighten pin to a torque
of 60 to 84 in. lbs. (7 to 9.5 N·m).
IMPORTANT: Make sure the gearcase shifts
solidly into both forward and reverse and that pro-
peller shaft spins freely in neutral.
Fill exhaust valve actuator electrical connector
with Electrical Grease and install on actuator (V4
models).
IMPORTANT: Leave enough slack in harness
so that lower cover will not pull it away from actua-
tor.
Connect the power trim connectors.
Install air silencer and air temperature sensor.

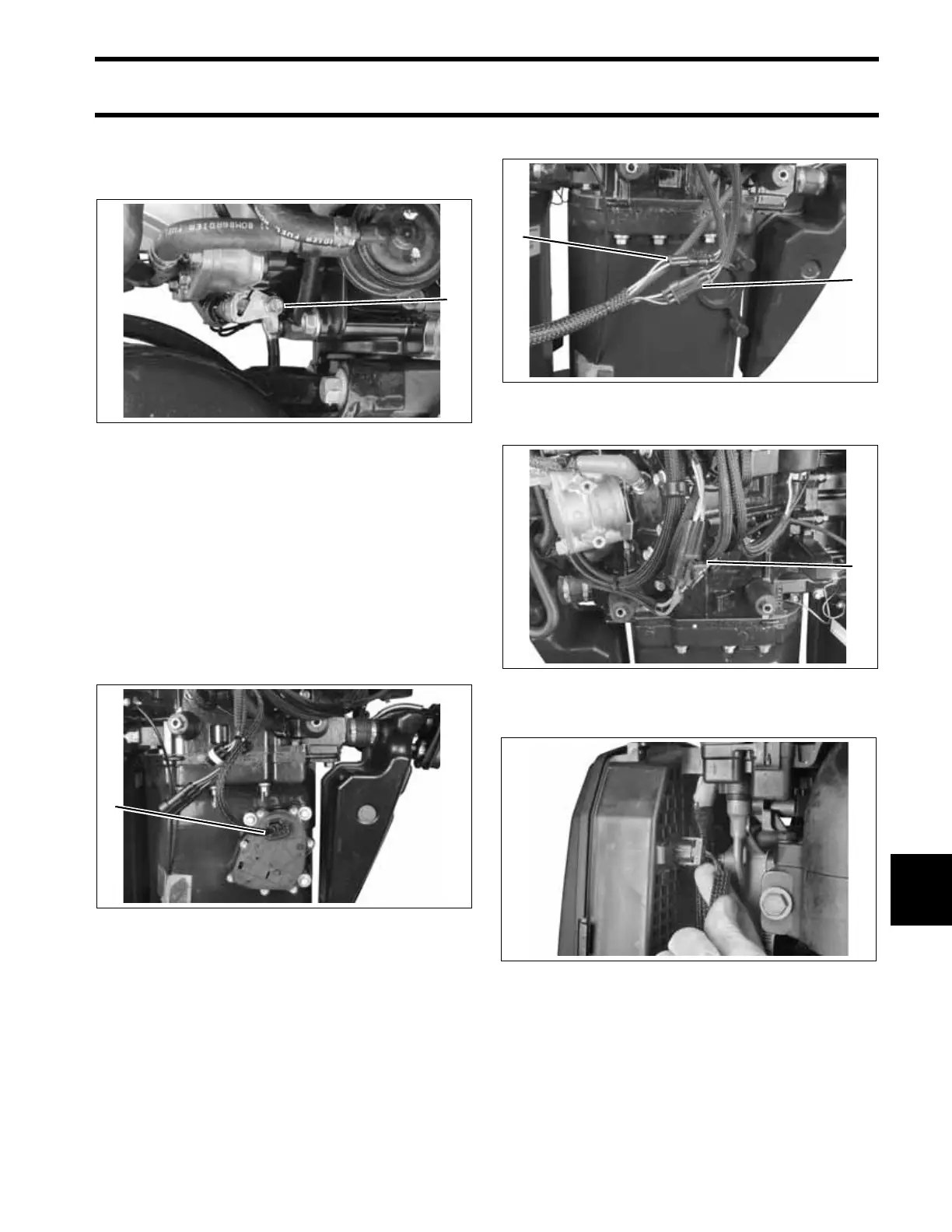

1. Shift rod screw 005253
1. Actuator connector 005247
1
1
1. Tilt limit switch connector
2. Sending unit connector
005254
1. Tilt relay connector 005255
