• The CIP pump must provide a minimum discharge pressure of at least 30 psig (2 bar)
and maximum pressure of 75 psig (5.2 bar) at the flow rate given in Table 6-1, below.

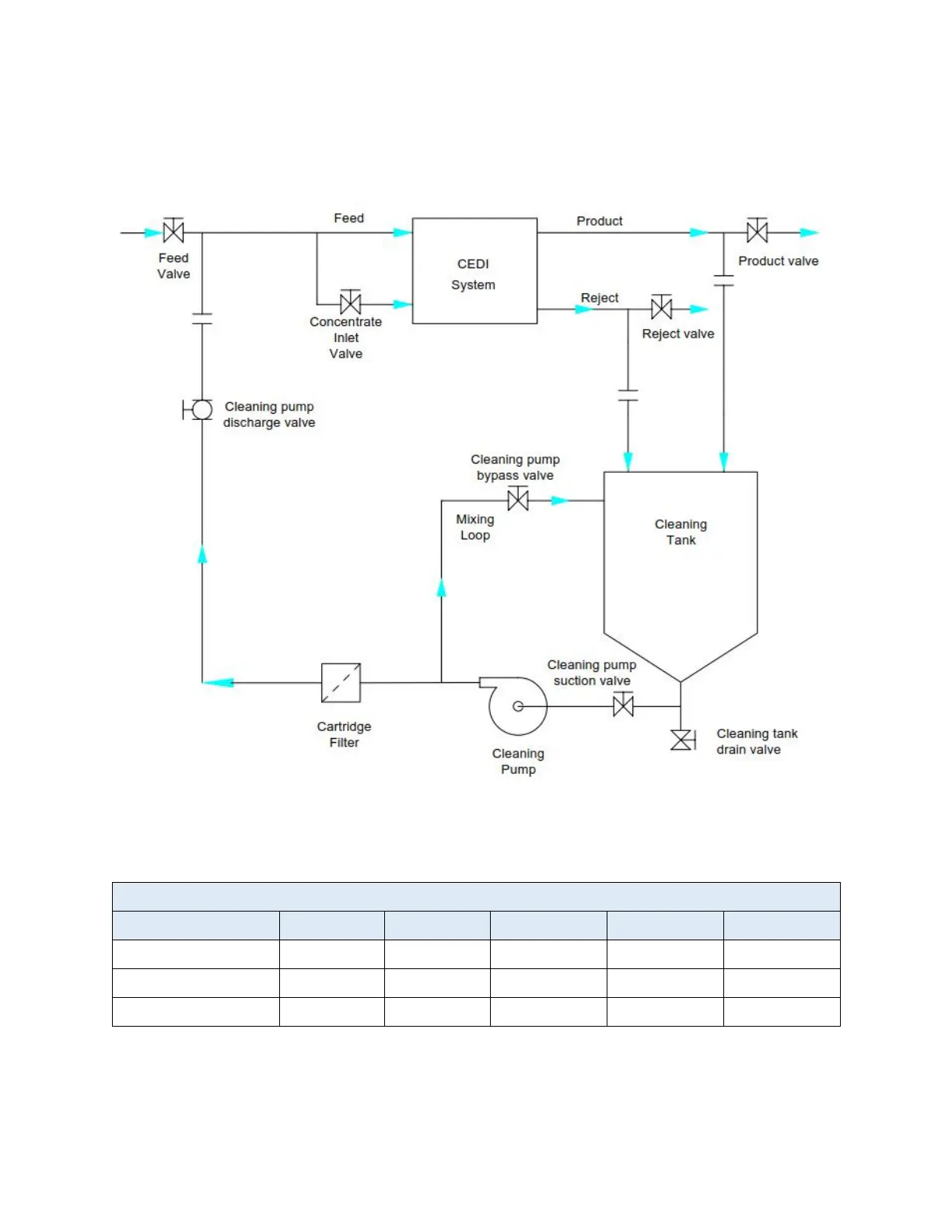

Figure 6-1: Typical CEDI CIP System
Table 6-1 MX CEDI Cleaning Flow Rates (liters/hr per module) *
IP-MX30 IP-MX60 IP-MX125 IP-MX250 IP-MX500
Product 15-30 30-60 62-125 125-250 250-500
Reject 7.5-15 15-30 31-62 62-125 125-250
Pump Capacity 45 90 187 375 750
* The preferred cleaning flow rates are nominal product flow and reject flow of 0.5 x product flow. The
same pressure should be applied to the dilute inlet and concentrate inlet, with minimal backpressure on the
outlets.
