2 Encoder Overview

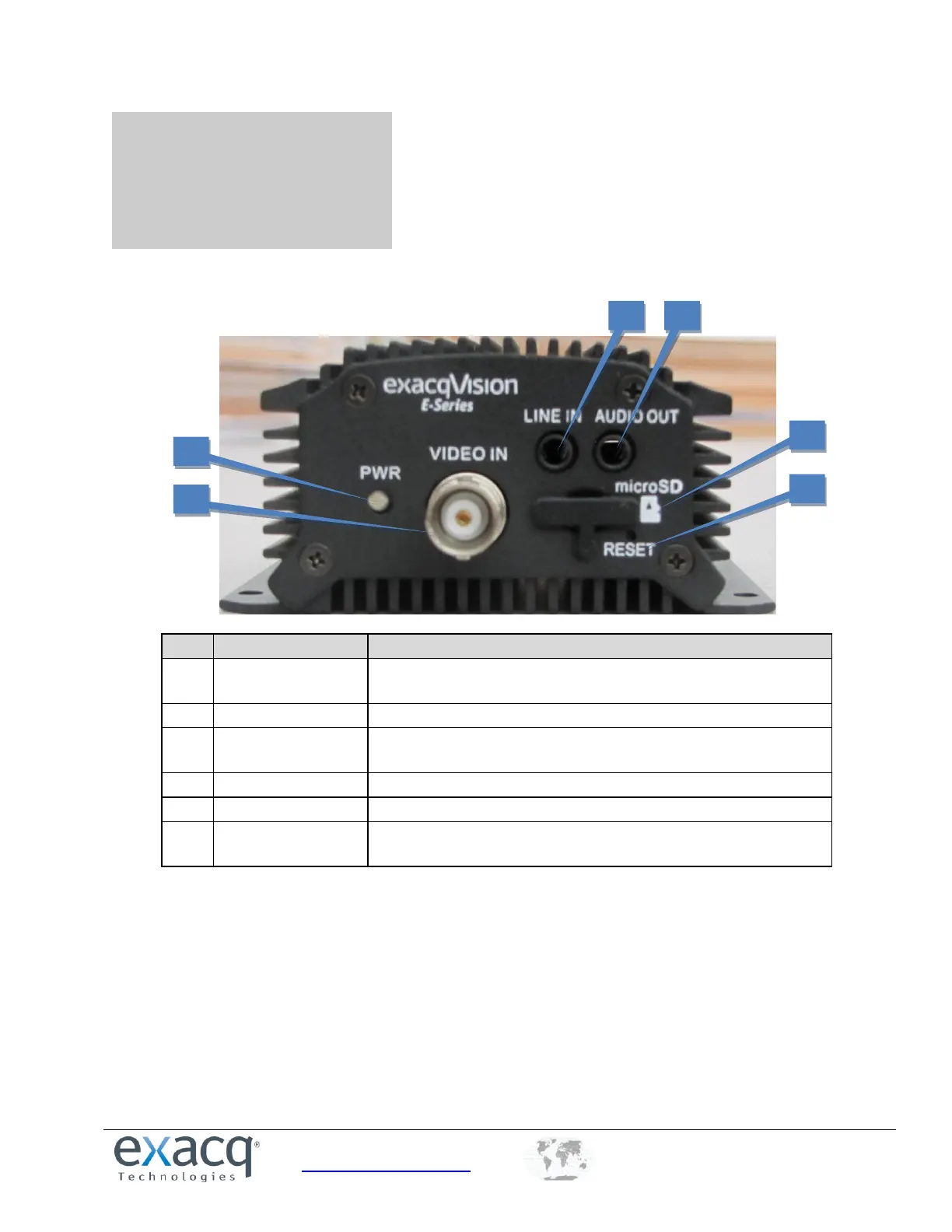

E-ADE1C FRONT PANEL
Item
Description
1
POWER LED Indicator
Red when the device is powered on; orange when the SD card is
inserted.
2
VIDEO IN
BNC connector for video input.
3
LINE IN
3.5mm interface for two-way audio input or audio input; connect to
audio input device or active pick-up, microphone, etc.
4
AUDIO OUT
3.5mm interface; connect to audio output device such as loudspeaker.
5
microSD
microSD interface for log storage.
6
RESET
Hold button for more than 15 seconds after power is turned on to
restore factory-default settings.
1
2
3
4
5
6
