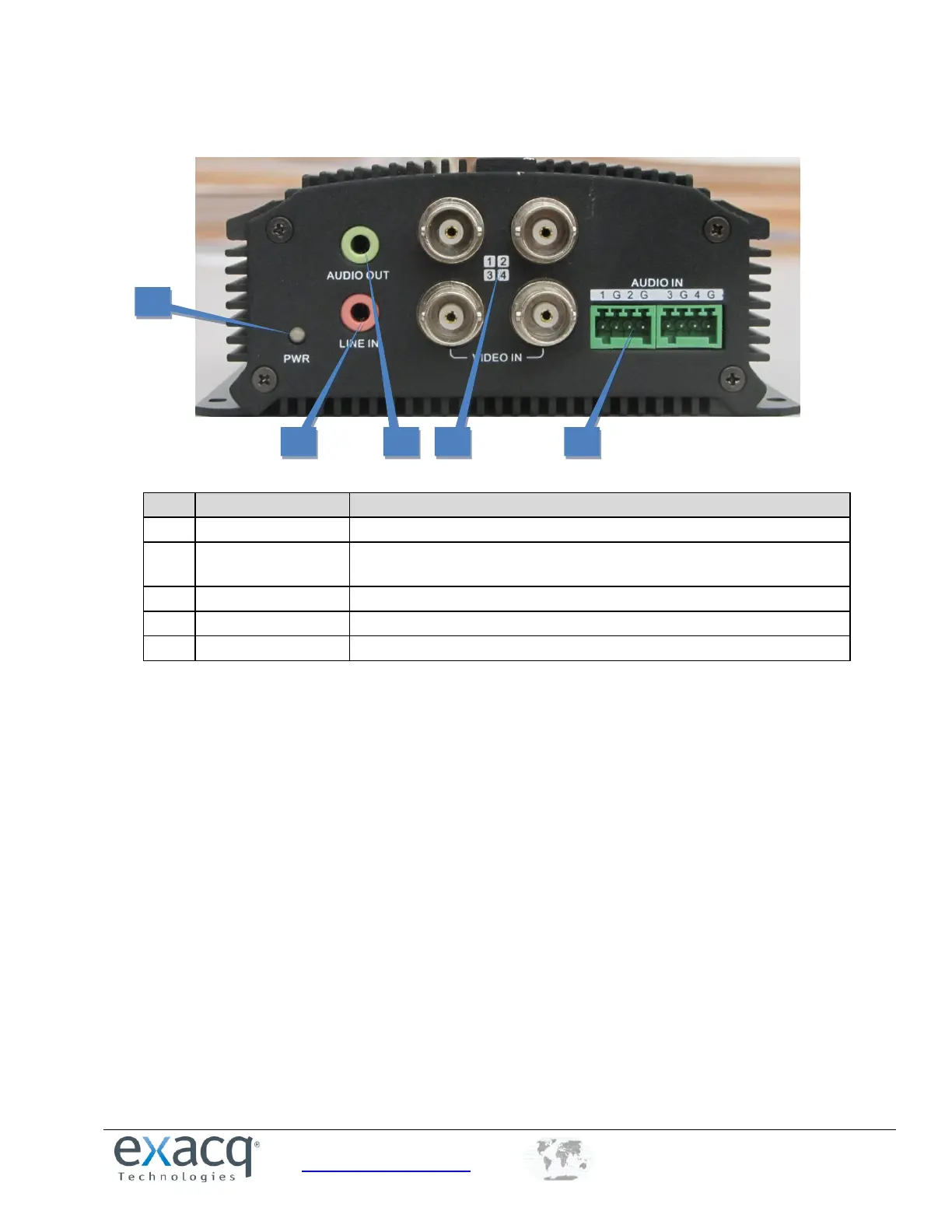

E-ADE4C FRONT PANEL
Item
Description
1
POWER LED Indicator
Red when the device is powered on; orange when the SD card is inserted.
2
LINE IN
3.5mm two-way audio input interface; connect to active pick-up,
microphone, etc.
3
AUDIO OUT
3.5mm interface; connect to audio output device, such as loudspeaker.
4
VIDEO IN
BNC interface for video input.
5
AUDIO IN
Line input interface for audio input.
1
2
3
4
5
