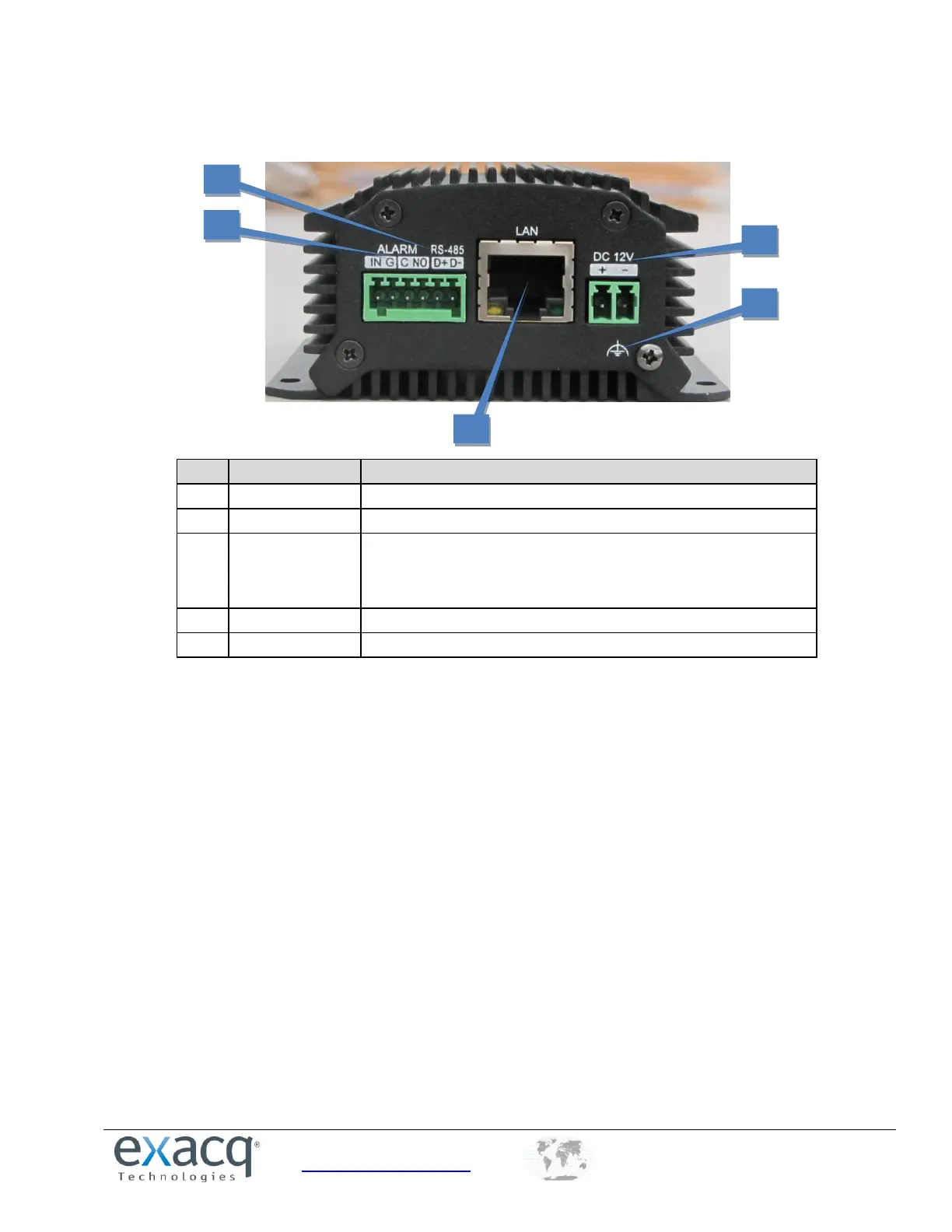

E-ADE1C REAR PANEL
Item
Description
1
ALARM IN /OUT
Relay alarm input/output. (JP2 pin not available on output.)
2
RS-485
RS-485 serial interface; connect to pan/tilt unit, speed dome, etc.
3
LAN
10M/100Mbps adaptive Ethernet interface (PoE). Right LED indicator
lights in green when the network cable is connected; left LED
indicator blinks in orange when data is transmitting/receiving.
4
DC12V
12V DC power supply.
5
GND
Grounding.
1
2
3
4
5
