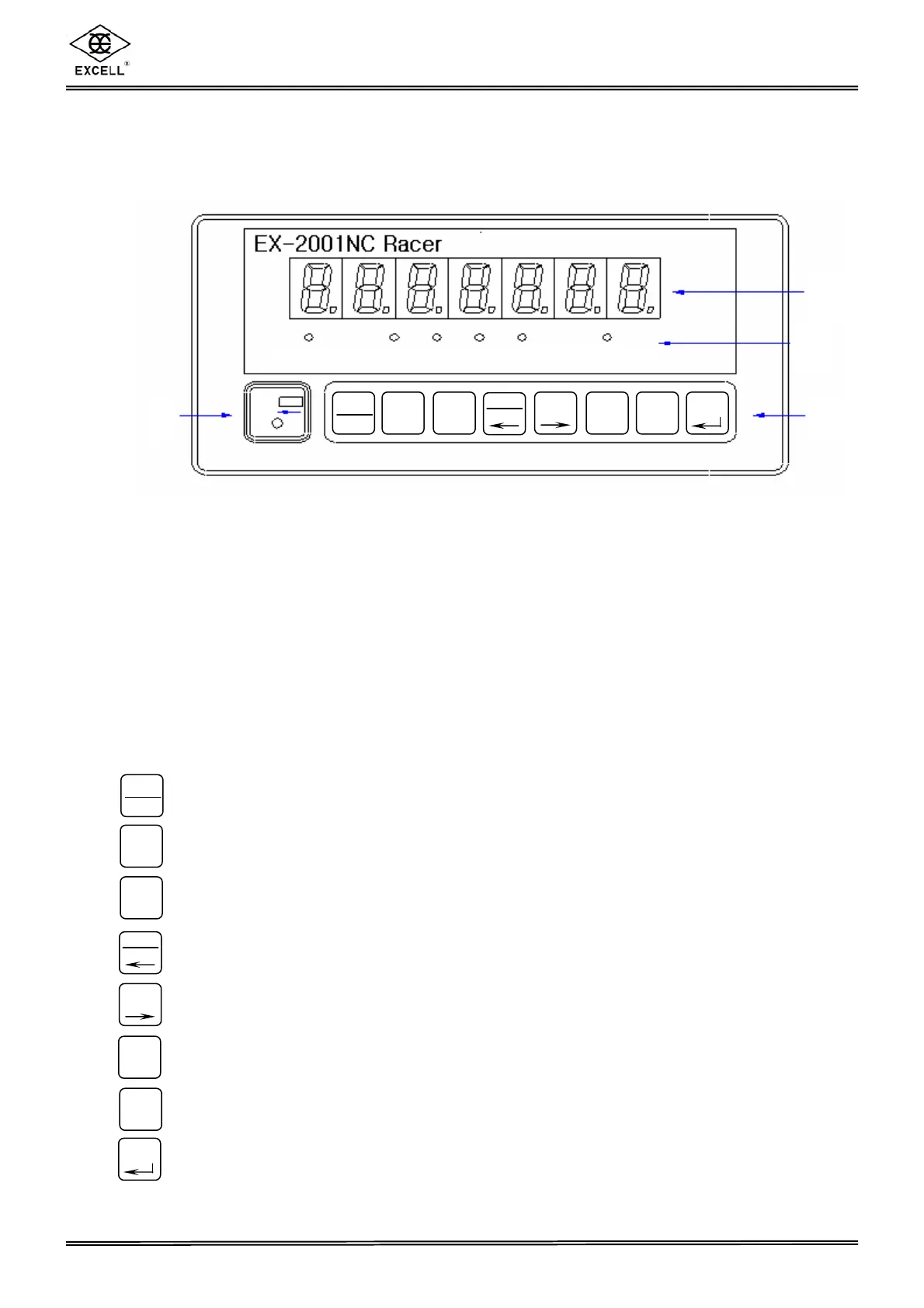

CHAPTER 3 FRONT AND REAR PANEL
3-1 FRONT PANEL
1
MAIN DISPLAY
• Displays gross weight or net weight
2 STATUS INDICATION LIGHTS
☼ POWER : Power Indication
☼ ZERO : Zero status indication
☼ MOTION : Unstable weighing indication
☼ GROSS : Main display section currently displays gross wt.
☼ NET : Main display section currently displays net wt.
☼ TARE ENTERED : Tare indication
3 KEYS
1) Standby mode ON / OFF
2) When setting the parameter or calibration, it works as quit or exit from setting
1) Sets weight back to zero
2) When setting the parameter or calibration, it cycles from 0 to 9
1) Tare function
2) When setting the parameter or calibration, it cycles from 9 to 0
1) Switches between gross wt. / net wt. on the main display
2) When setting the parameter or calibration,
it shifts the flashing character to the left
1) Manually output serial / parallel data
2) When setting the parameter or calibration, it shifts the flashing character to the right
1) Weight accumulation, sub-total function (for OP-05)
2) Sets capacity parameter
1) Weight accumulation, grand-total function (for OP-05)
2) Capacity calibration
Confirmation key
1
2
3
4
STANDBY
OPERAE
ZERO
+
GROSS
NET
TARE
—
PRINT
ENTER
F n C A L
POWER ZERO MOTION GROSS NET TARE ENTERED
ON
STANDBY
OPERAE
ZERO
+
TARE
—
GROSS
NET
PRINT
F n
C A L
ENTER
