Excell NC RACER EX-2001 User Manual

EX-2001 NC RACER ZSME300000091
33
EXCELL PRECISION CO., LTD.
1
2
3
4
DATA/
CLK
GND
FG
RxD
TxD
SG
+ AC
- AC
C.LOOP
C.LOOP
1
2
3
4
5
7
12
13

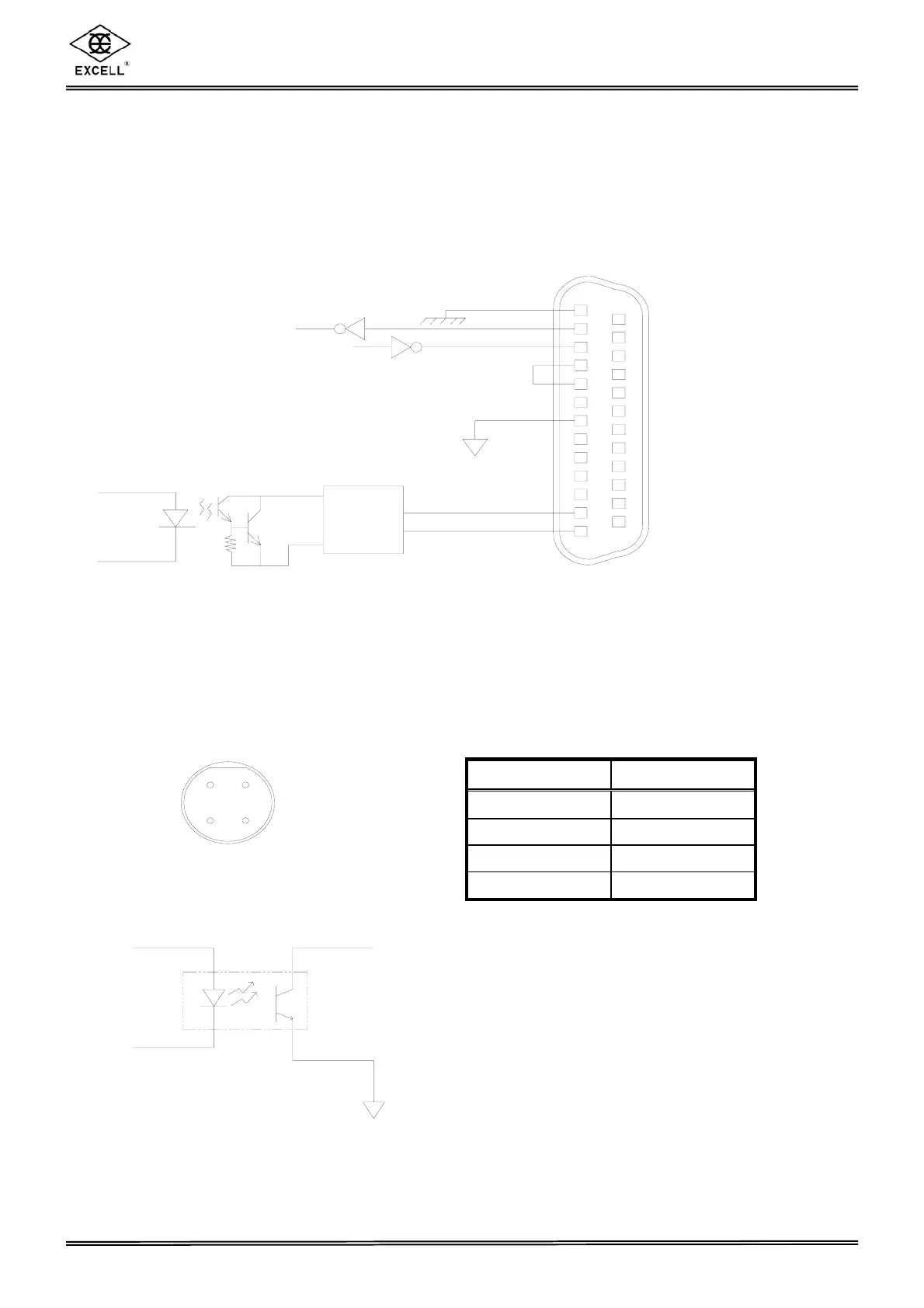

CONNECTION
7-6 OP-07 RS-232, CURRENT LOOP & DATA CLOCK OUTPUT
2
RS-232 / CURRENT LOOP
RS-232C is a bi-directional output/input; CURRENT LOOP is one-way output only,
and the output data format is the same as RS-232.
FG
RxD
TxD
SG
+ AC
- AC
C
.
LOOP
C. LOOP
1
2
3
4
5
7
12
13
接線圖
2
Data Clock serial output
FUNC. 70 should be “ 0 ”
Pin Position Function
1 + 5V
2 DATA
3 CLK
4 GND
Inner Connection
2 Refer to Chapter 9 Functions Table to set FUNC 60 ~ FUNC 69
CONNECTION
DATA / CLK
GND

Excell NC RACER EX-2001 Specifications

General

Brand	Excell
Model	NC RACER EX-2001
Category	Measuring Instruments
Language	English
