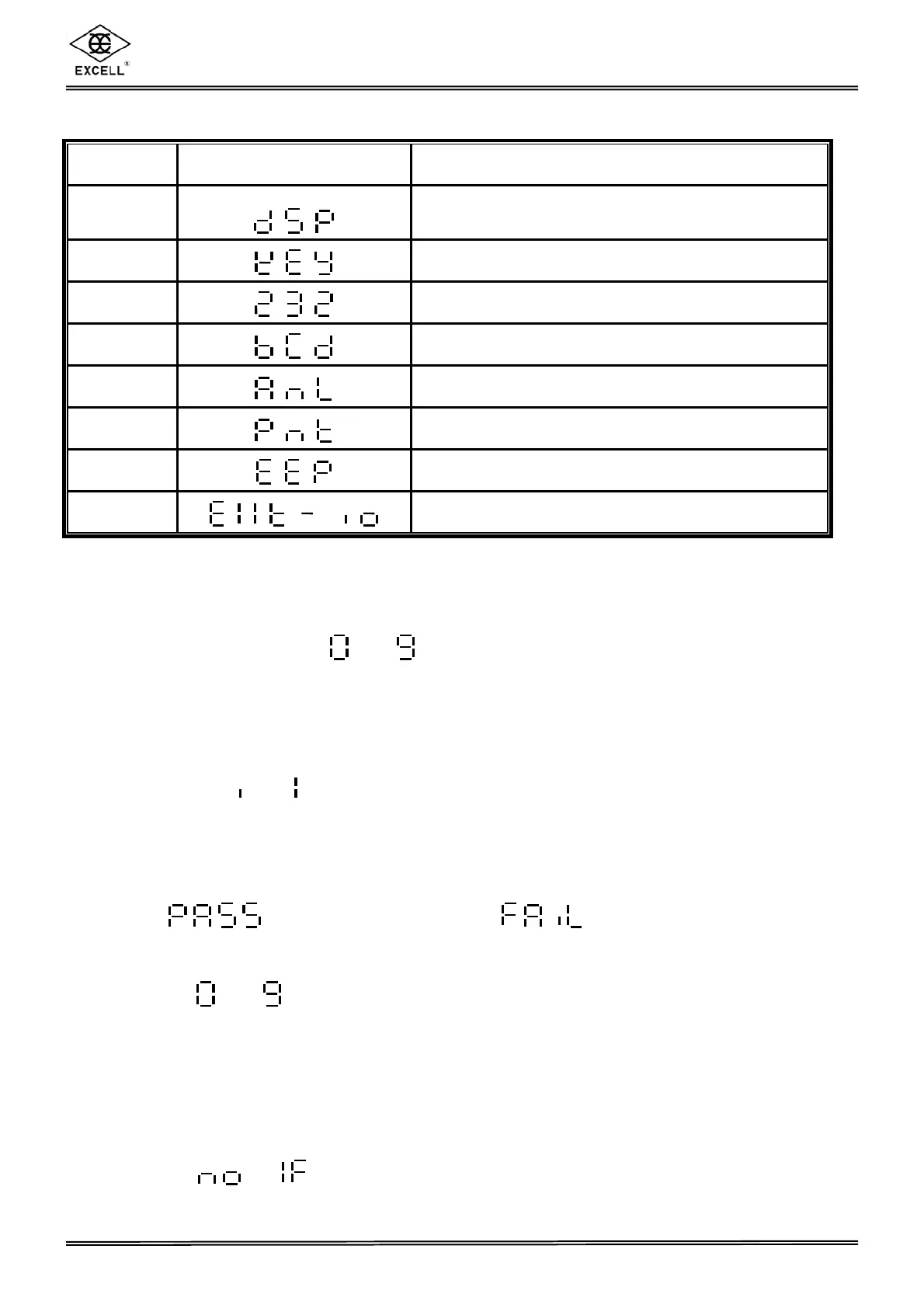

EX-2001 NC RACER ZSME300000091
39
EXCELL PRECISION CO., LTD.
No. Display Diagnosis Item
1
7 digits display and LED status lights
2
Keyboard and calibration ON / OFF switch
3
OP-06 RS-232 serial output / input interface
4
OP-02 BCD parallel output interface
5
OP-03 Analogue current output interface
6
OP-05 Parallel printer interface
7
EEPROM memory on main board
8
OP-08 Control I/O interface
8-3-1 7 Digit Display and LED Status Light Diagnosis
7 digit display shows ~ , “. And at the same time, the LED status lights
turn on and off in order.
8-3-2 Keyboard and Calibration ON / OFF Switch Diagnosis
Switch the calibration switch to “ON”, or press any keys and the corresponding digit
goes from
on the display.
8-3-3 RS-232 Serial Output / Input Interface Diagnosis ( OP-06 / OP-07 )
(1) Short circuit the 2
nd
pin and 3
rd
pin of the SER. OUT. D-SUB 25 pin connector.
= Working properly = Malfunction
(2) If connecting to a computer (The communication protocol has to be compatible),
if ~ can be read, it indicates that the RS-232 is in working order.
8-3-4 BCD Parallel Output Interface Diagnosis ( OP-02 )
(1) The decimal point flashes during the diagnosis.
(2) The program sends out OFFONOFF signals from each of BCD output bit.
(3) If is displayed, this indicates that no BCD interface is installed.
