Excell NC RACER EX-2001 - Page 14

EX-2001 NC RACER ZSME300000091
12
EXCELL PRECISION CO., LTD.
! WARNING
before opening the covers.
Isolating the ac power
LOAD CELL
AC 100V~240V
IN / OUTPUT
2
FUSE/0.5A
CONTROL
INPUT
1 2
OUTPUT
4
C2 C1
3 1
DATA IN / OUT

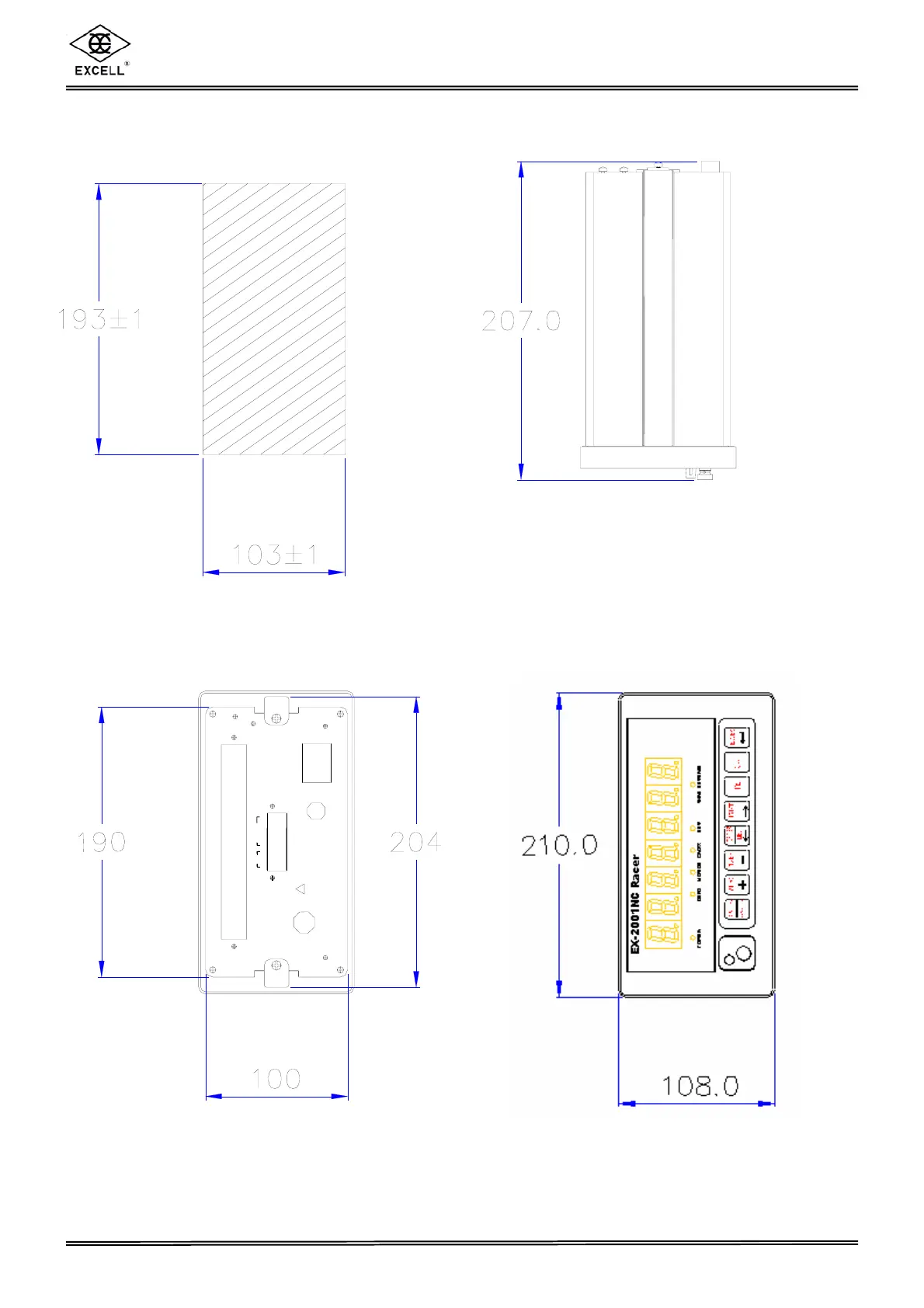

2 INDICATOR DIMENSIONS (measurement unit: mm)
