Setting Up Your FTB-1v2 and FTB-1v2 Pro

92 FTB-1v2 and FTB-1v2 Pro

Selecting the Language of Operation

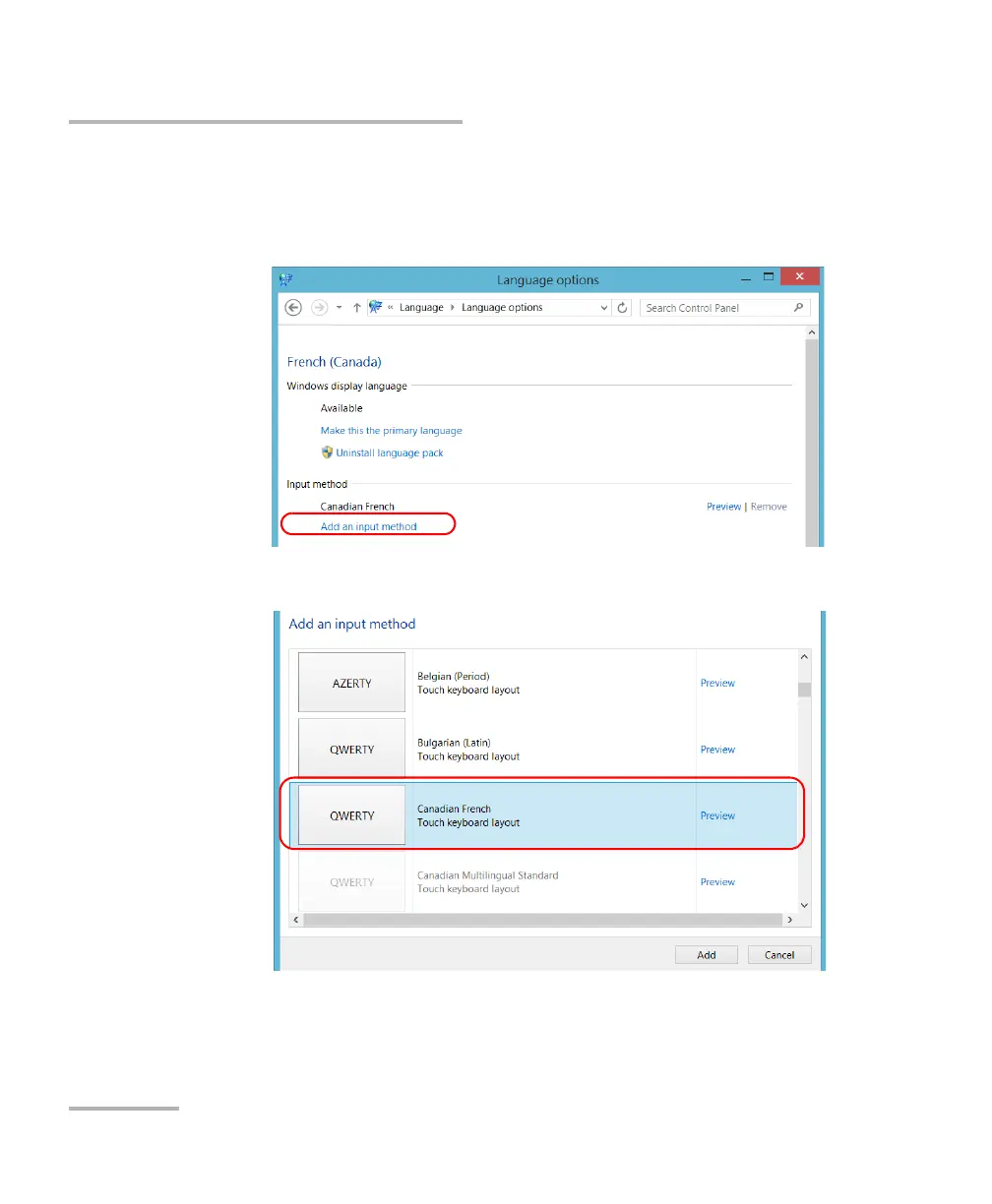

6. If you want to select another keyboard layout than the one that has

been added by default, proceed as follows.

6a. Under Input method, tap Add an input method.

6b. Select the desired keyboard layout, and then tap Add.
