Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 97

Selecting the Language of Operation

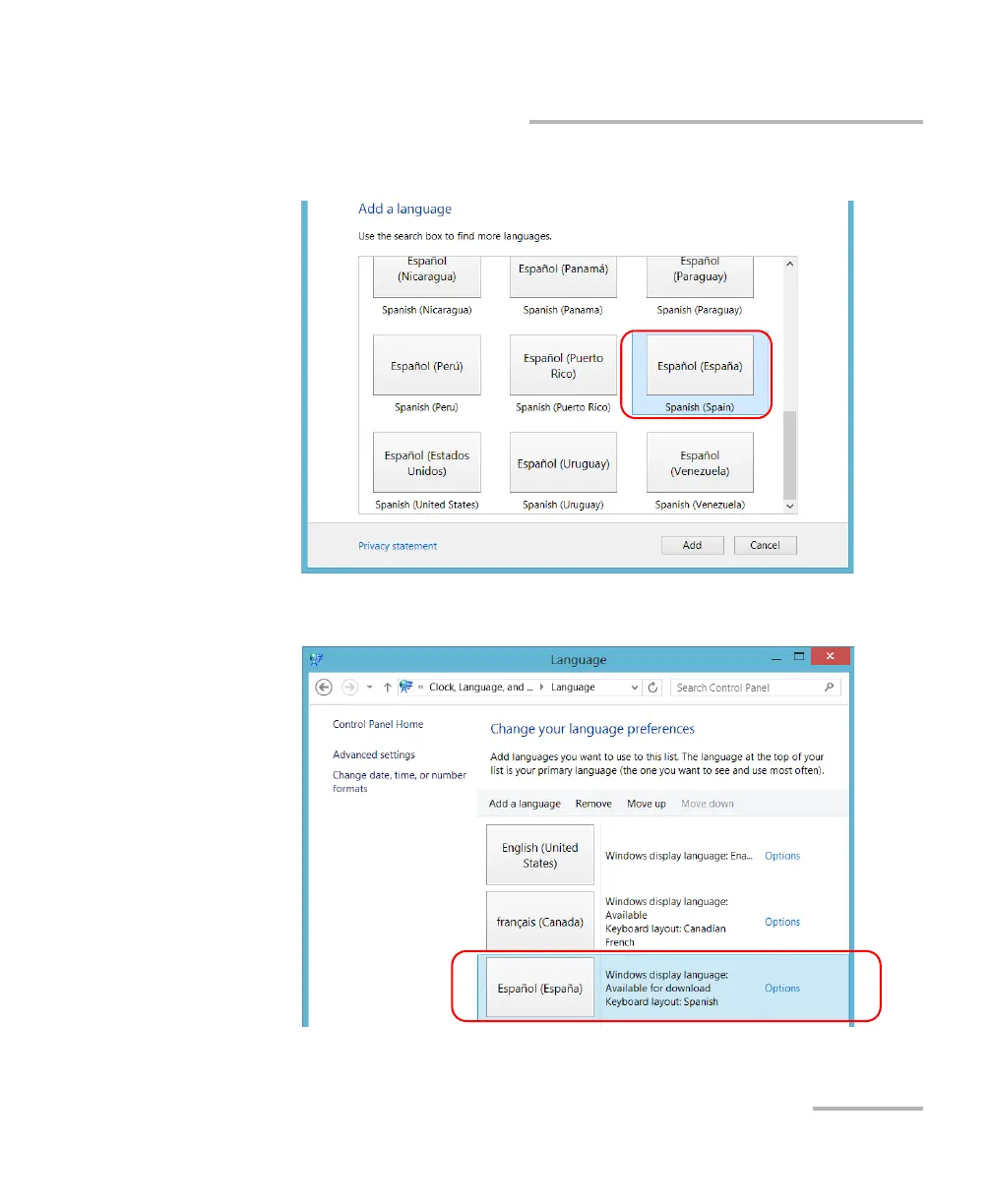

8. Select the desired sub-language, and then tap Add.

9. Select the desired language from the list.

10. Tap Options.
