Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 107

Configuring the Power Management Options

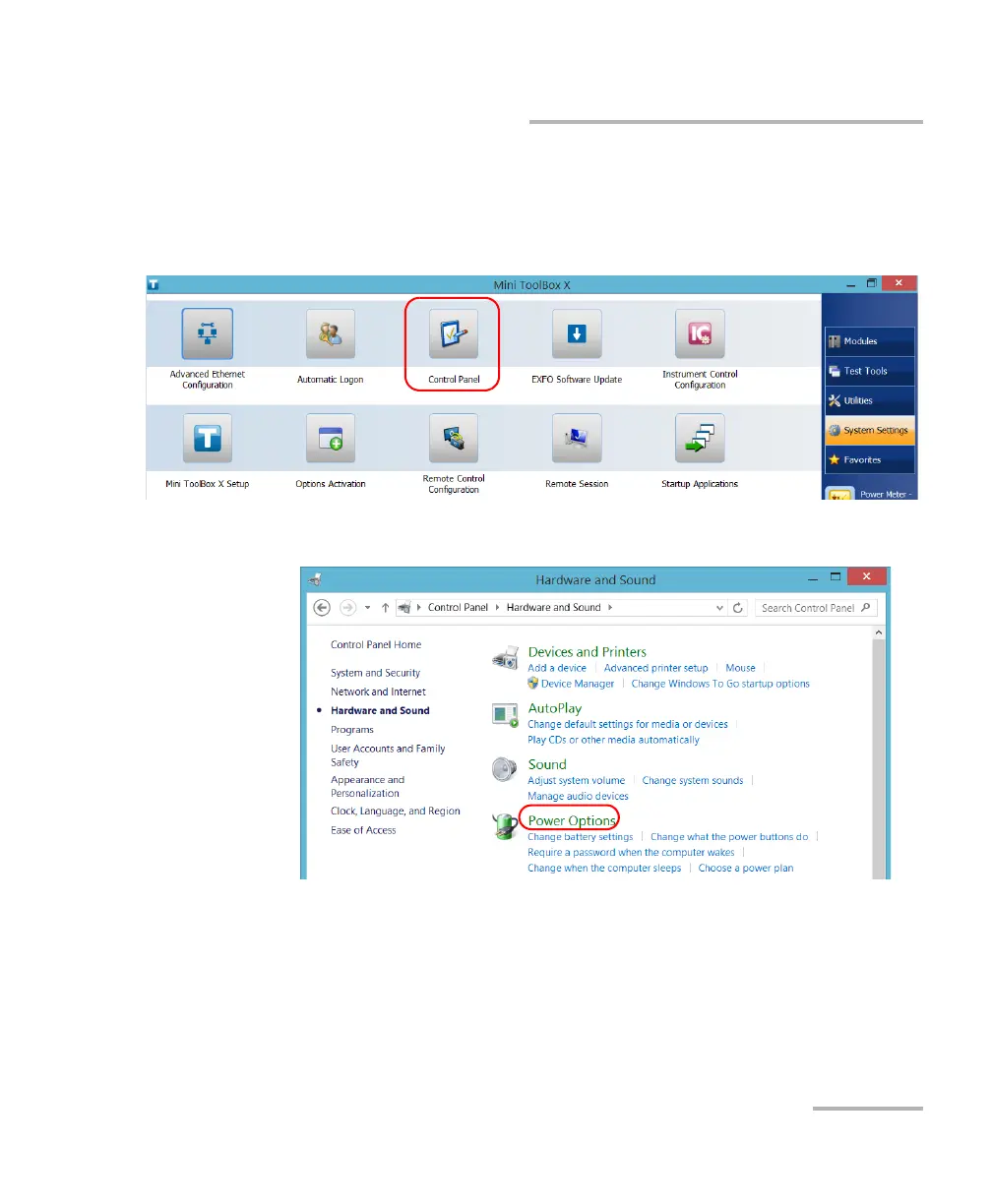

To create a power plan:

1. From the main window, tap the System Settings button.

2. Tap Control Panel.

3. Tap Hardware and Sound > Power Options.

Table of Contents3
