Setting Up Your FTB-1v2 and FTB-1v2 Pro

108 FTB-1v2 and FTB-1v2 Pro

Configuring the Power Management Options

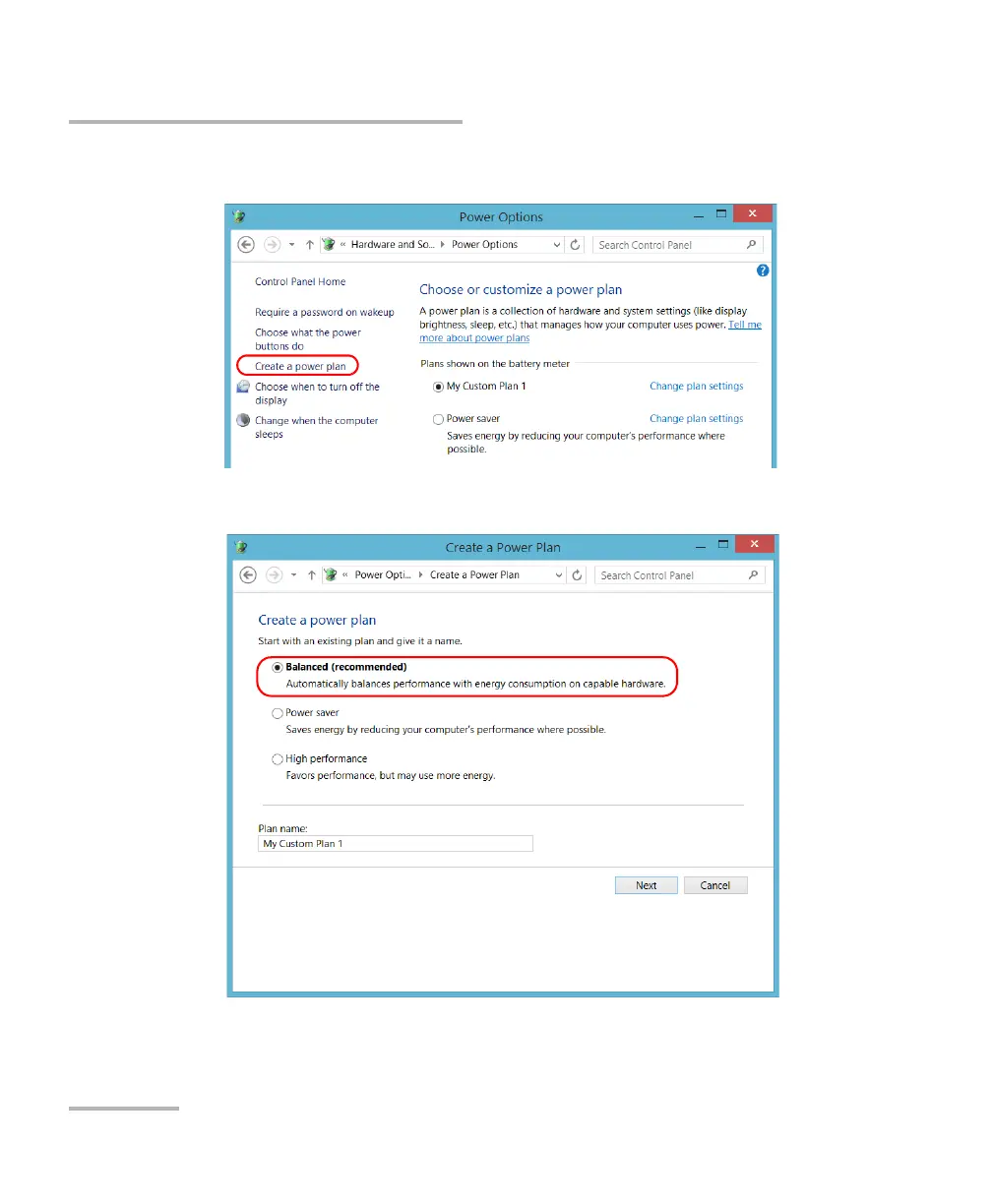

4. From the list on the left, tap Create a power plan.

5. Select a power plan that will serve as a basis.

6. Enter a name, and then tap Next.
