Maintenance

284 FTB-1v2 and FTB-1v2 Pro

Replacing the Battery (All Models Except High-Power Dual Carrier)

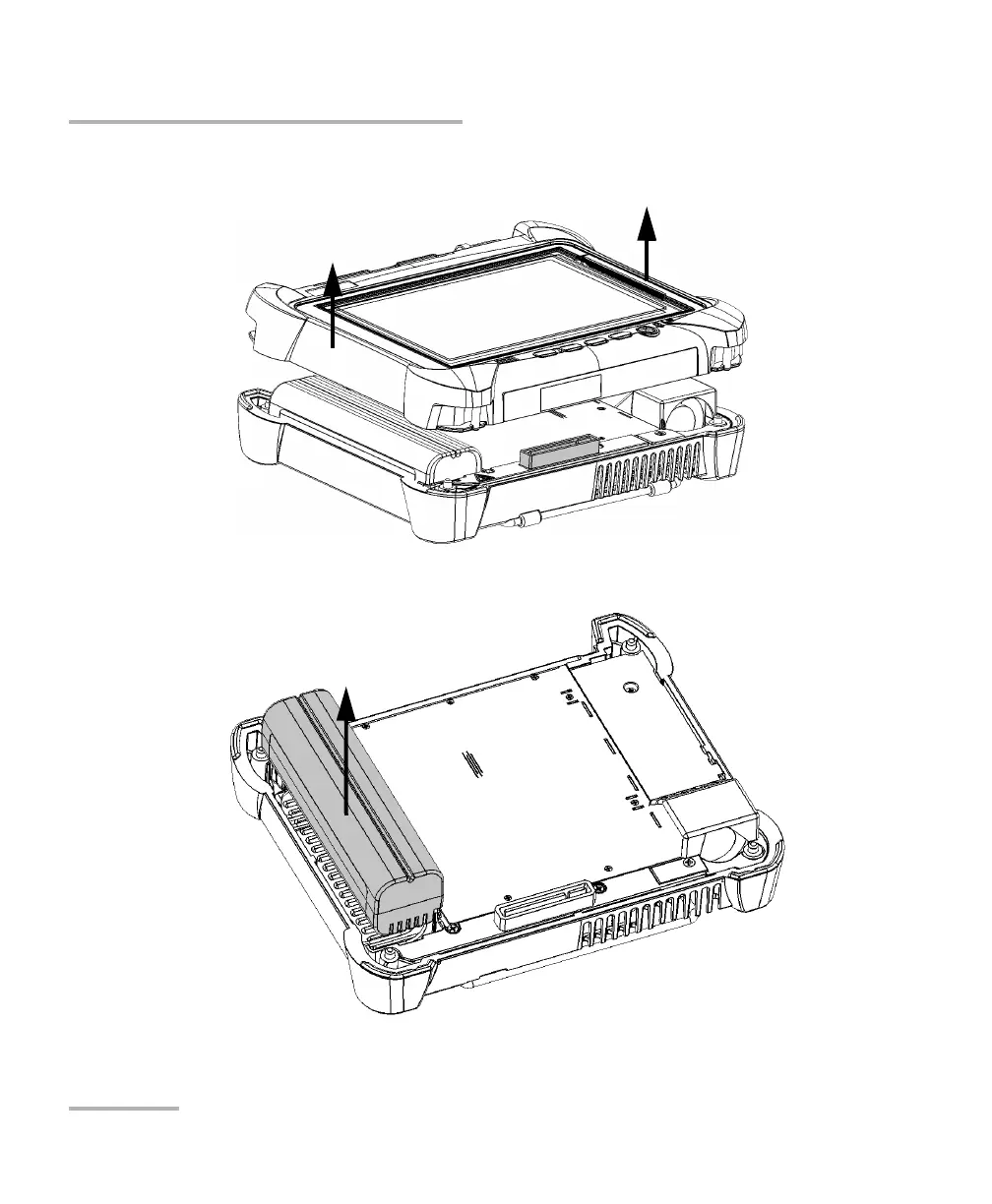

5. Hold the front panel by its sides and pull it up.

6. Pull on the battery’s tab to free it from its socket.

You are now ready to replace the battery.
