Troubleshooting

318 FTB-1v2 and FTB-1v2 Pro

Restoring Your Unit to Normal Operation

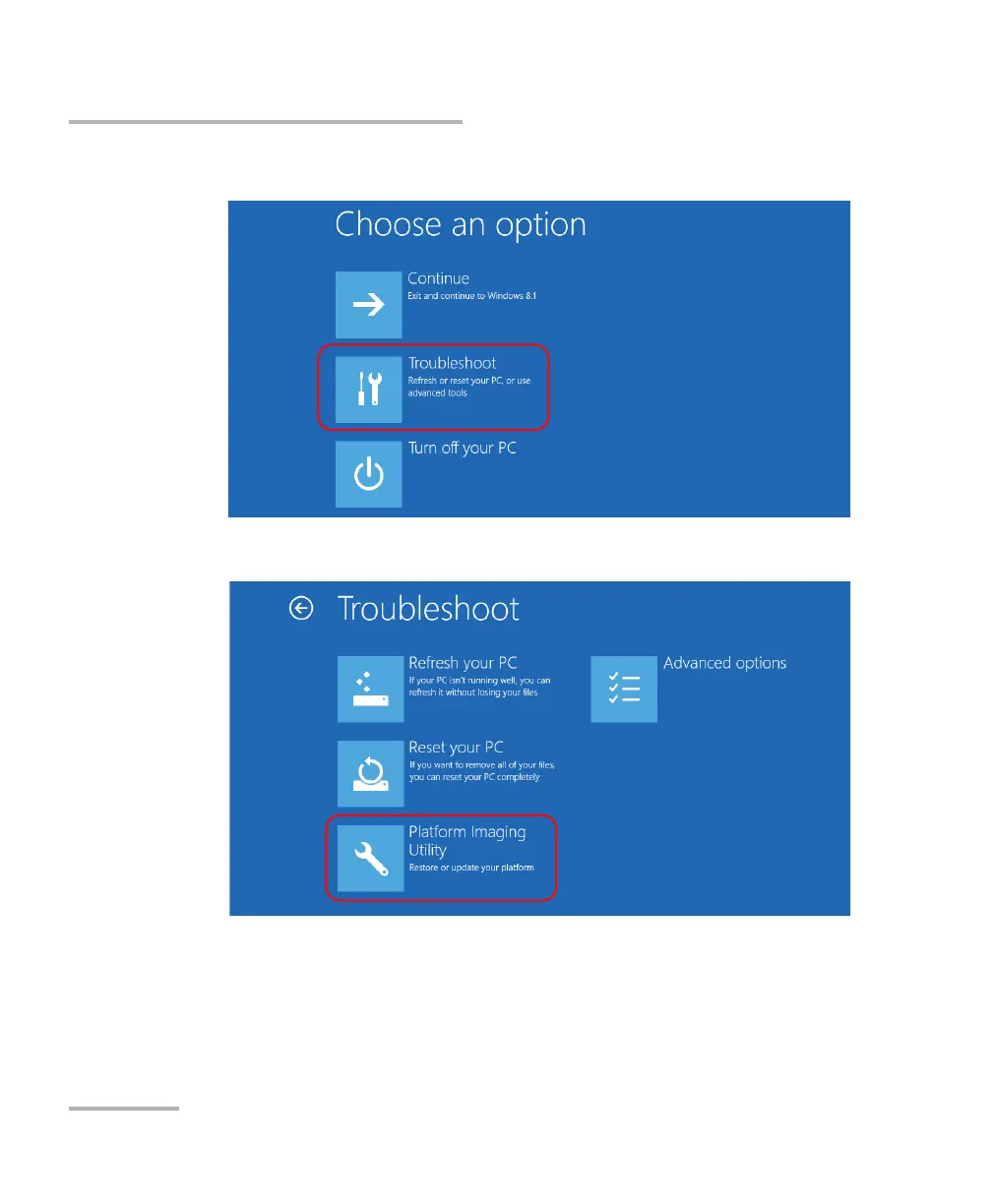

5. Under Choose an option, tap Troubleshoot.

6. Tap Platform Imaging Utility to display the corresponding application.

7. Connect a USB key to your unit.
