Troubleshooting

FTB-1v2 and FTB-1v2 Pro 317

Restoring Your Unit to Normal Operation

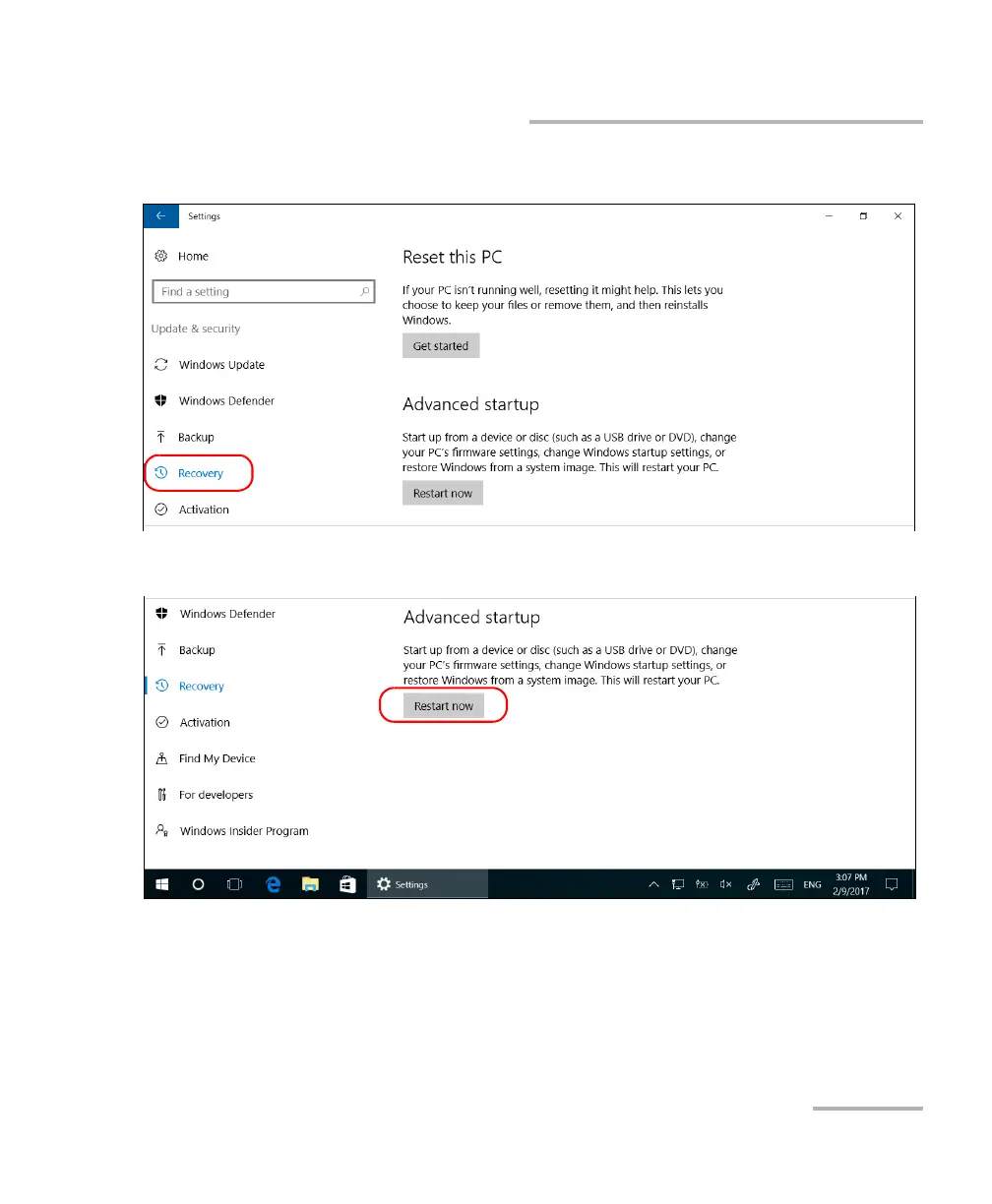

3. Select Recovery.

4. Under Advanced Startup, tap Restart now.
