EXFO FTB-1v2 User Manual

Communicating Through TCP/IP Over Telnet
FTB-1v2 and FTB-1v2 Pro 459

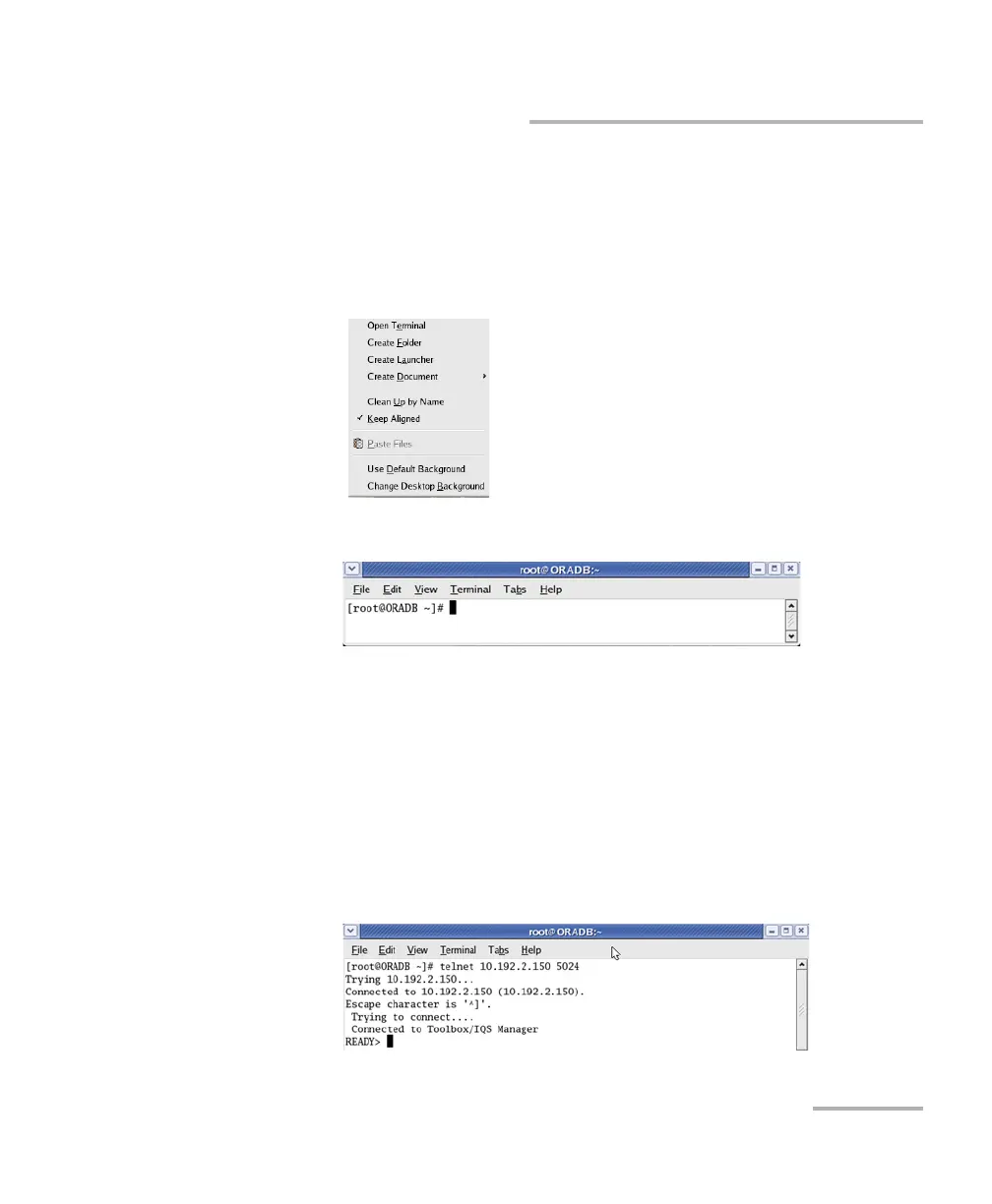

Executing SCPI Commands Over Telnet
To execute SCPI commands over Telnet from a remote
Linux client:
1. Establish a connection to the Telnet service as follows:
1a. From your computer, right-click on the desktop, and then click
Open Terminal.
The command prompt is displayed in the Telnet editor window.
1b. Connect to the TCP/IP Telnet Service by typing the
OPEN <IP_ADDRESS_OF_TELNET_SERVER> <PORT>
command:
Example: open 10.192.2.45 5024
Note: Port 5024 is designated for sending SCPI commands in the Telnet protocol.
The connection is established when the message Connected to
Toolbox/IQS Manager is displayed in the Telnet editor window.

EXFO FTB-1v2 Specifications

General

Brand	EXFO
Model	FTB-1v2
Category	Measuring Instruments
Language	English
