Getting Started with Your Unit

38 FTB-1v2 and FTB-1v2 Pro

Attaching and Removing FTB Test Modules

4. While holding the front panel and the module firmly together, turn the

unit over, and position it so that the module (back panel) rests on a flat

surface such as a table.

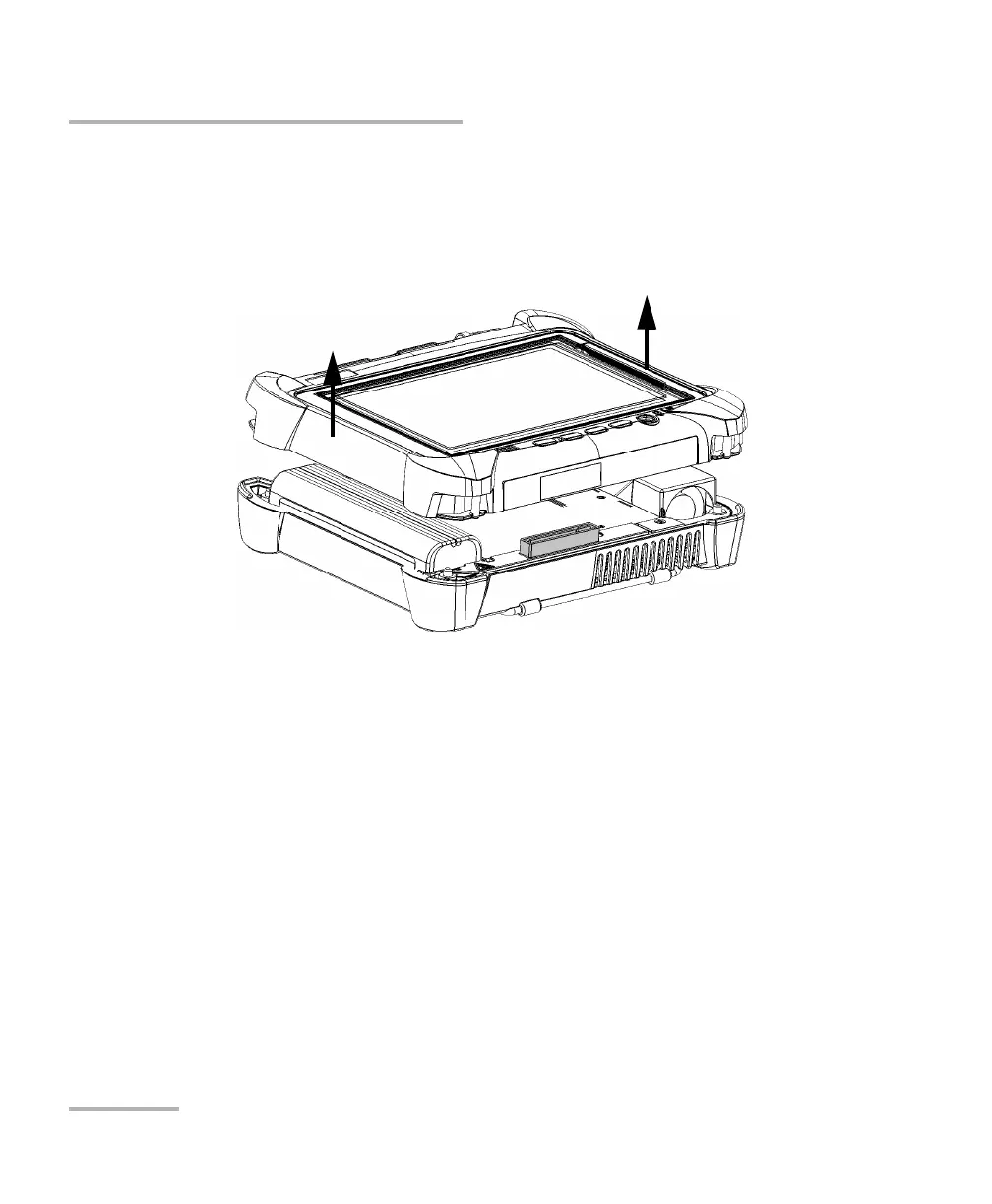

5. Hold the front panel by its sides and pull it up.

Table of Contents3
