Structure and function
14 Dok-ID:EXPERT-0003-EN-2011
Pos: 4.1 / S martT ur n/Sm artT urn- Neu- 02.2011/4 aufbau + funktion - übersiocht @ 3\mod_1311931545664_38.doc @ 28180
4 Structure and function

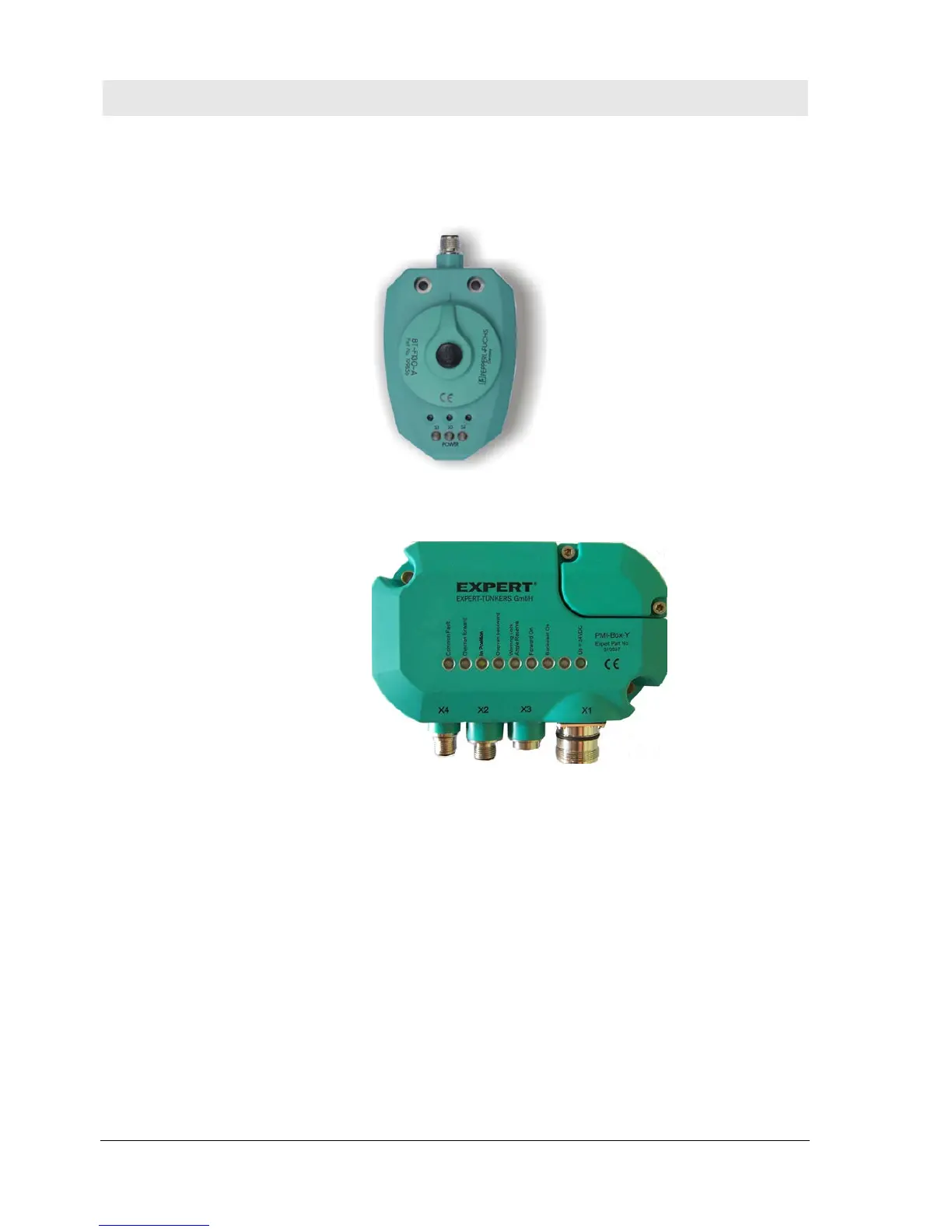

4.1 Overview
Sensor
Fig. 1 Sensor
Control unit
Fig. 2 Control unit
The SmartTurn turntable controller consists of the components:
Inductive sensor, incl. Position encoder.
Control unit.
Sensor cable.
Diagnostics cable (optional).
PLC interface cable (optional).
Connecting cable power unit (optional).
