5.3 Electrical installation
Connect the sensor and control unit via sensor cables. Only use
the specified sensor cable.
Connect control unit and plant controller via cable to X1 and X2.
Install the cables separate from high-voltage cables.

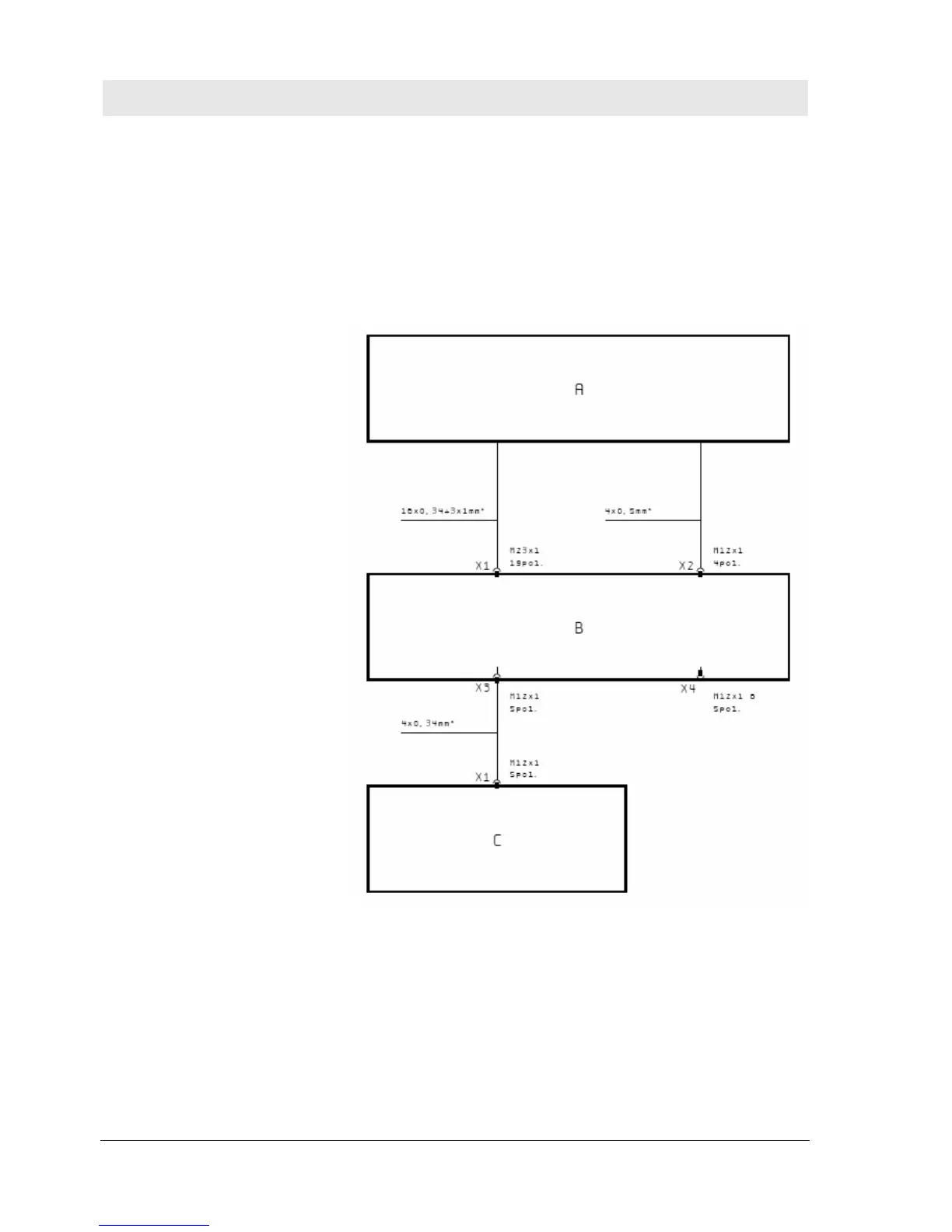

SmartTurn installation overview
Fig. 14 Installation overview
