Turntable control SmartTurn
Structure and function
Dok-ID:EXPERT-0003-EN-2011 27
4.3 Connections
Supply voltage
The control unit is operated with 24 V DC. The power is supplied
via the PLC interface. The inputs/outputs have 24 V DC level, the
outputs are short-circuit resistant.
4.3.1 Control unit, see Fig.
Designation Connection Description / plug-in connector
X1 PLC
Flange plug-in connector, M23x1,
19-pin
X2 Power Flange connector M12x1, 4-pin
X3 Sensor Flange socket, M12x1, 4-pin
X4 Diagnostics
Flange connector M12x1, 5-pin,
B-coded

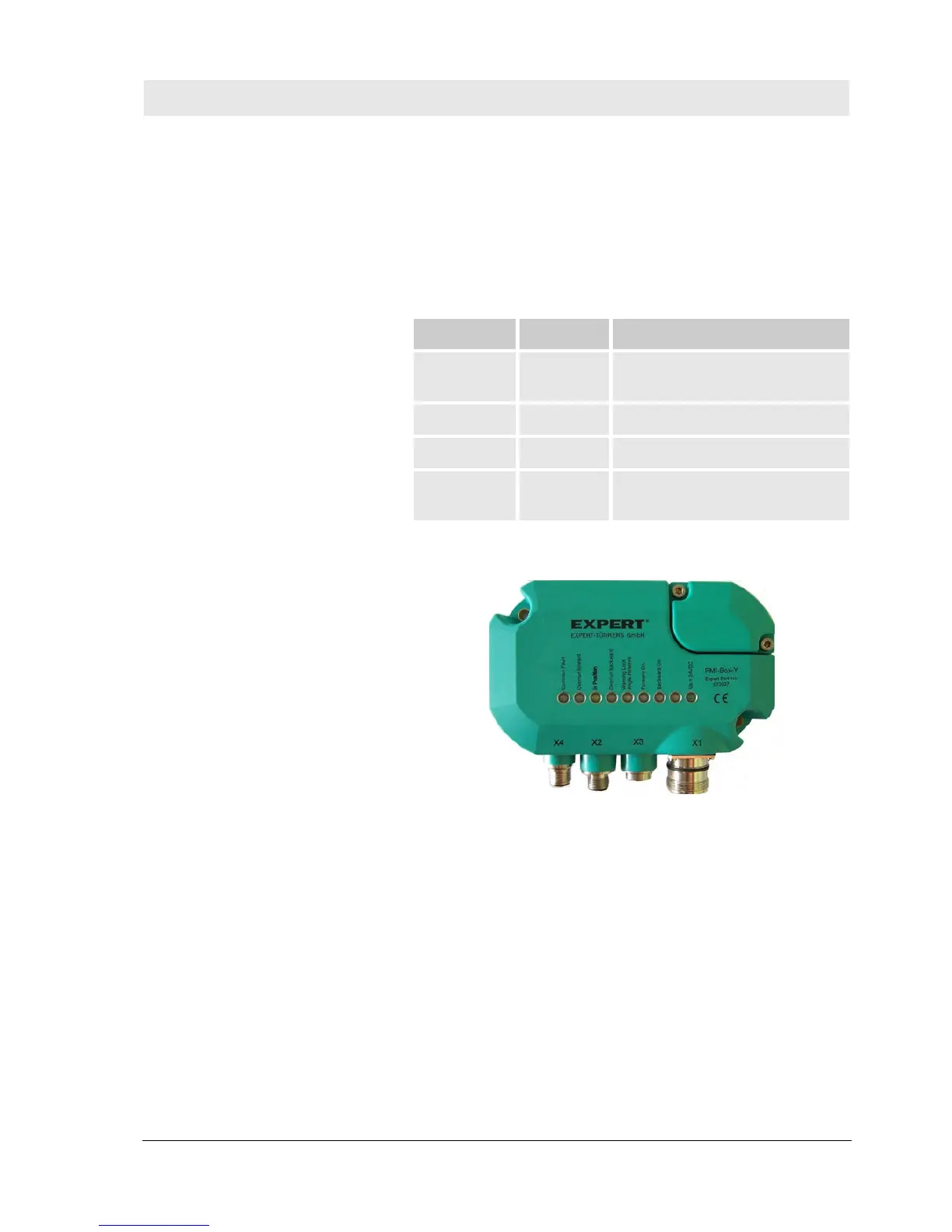

Fig. 8
Pos: 4.22 /SmartTurn/SmartTurn-Neu-02.2011/4.3.1.1 Pin Belegung -Steuereinheit @
3\mod_1296814485562_38.doc @ 25984
