Turntable control SmartTurn
Structure and function
Dok-ID:EXPERT-0003-EN-2011 25
Pos: 4. 18 /Smar tTur n/4.2. 5_b S 3 @ 1\mod_1219401222930_38.doc @ 7251
S3 Rotary direction clockwise rotation - counter-clockwise
rotation, drive roller

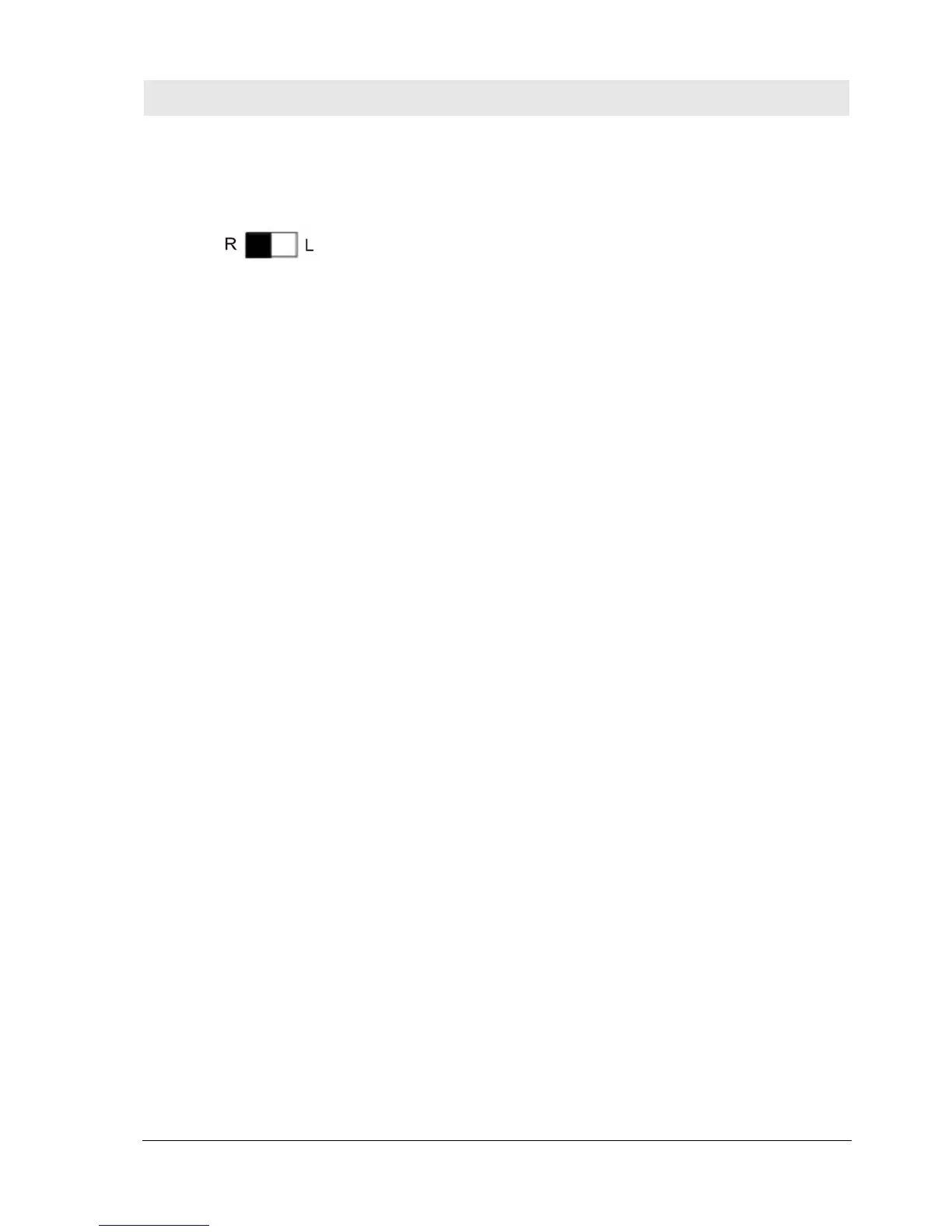

Fig. 6
R = clockwise rotation (default value)
L = counter-clockwise rotation
The rotary movement of the turntable plate depends on the rotary
direction of the drive motor, and on the incline of the drive roller.
The turntable controller checks whether the forward/backward
activation and the rotary direction of the drive roller agree.
Clockwise In this setting the turntable controller expects drive roller / position
encoder rotation to the right (clockwise) at "Forward on".
For "Backward on" left (counter-clockwise) rotation of the drive
roller / position encoder is expected.
Counter-clockwise In this setting the turntable controller expects drive roller / position
encoder rotation to the left (counter-clockwise) at "Forward on".
At "Backward on" right (clockwise) rotation of the drive roller /
position encoder is expected.
