1 = 100/1000BASE-X MACsec capable SFP
ports
3 = Micro-B USB console port 5 = VIM port (covered)
2 = USB 1 port 4 = Stacking/QSFP28 ports
The rear panel of the switch includes:
• 3 fan modules
• Grounding lug
•
1 Type-A USB port
• 2 power supply slots

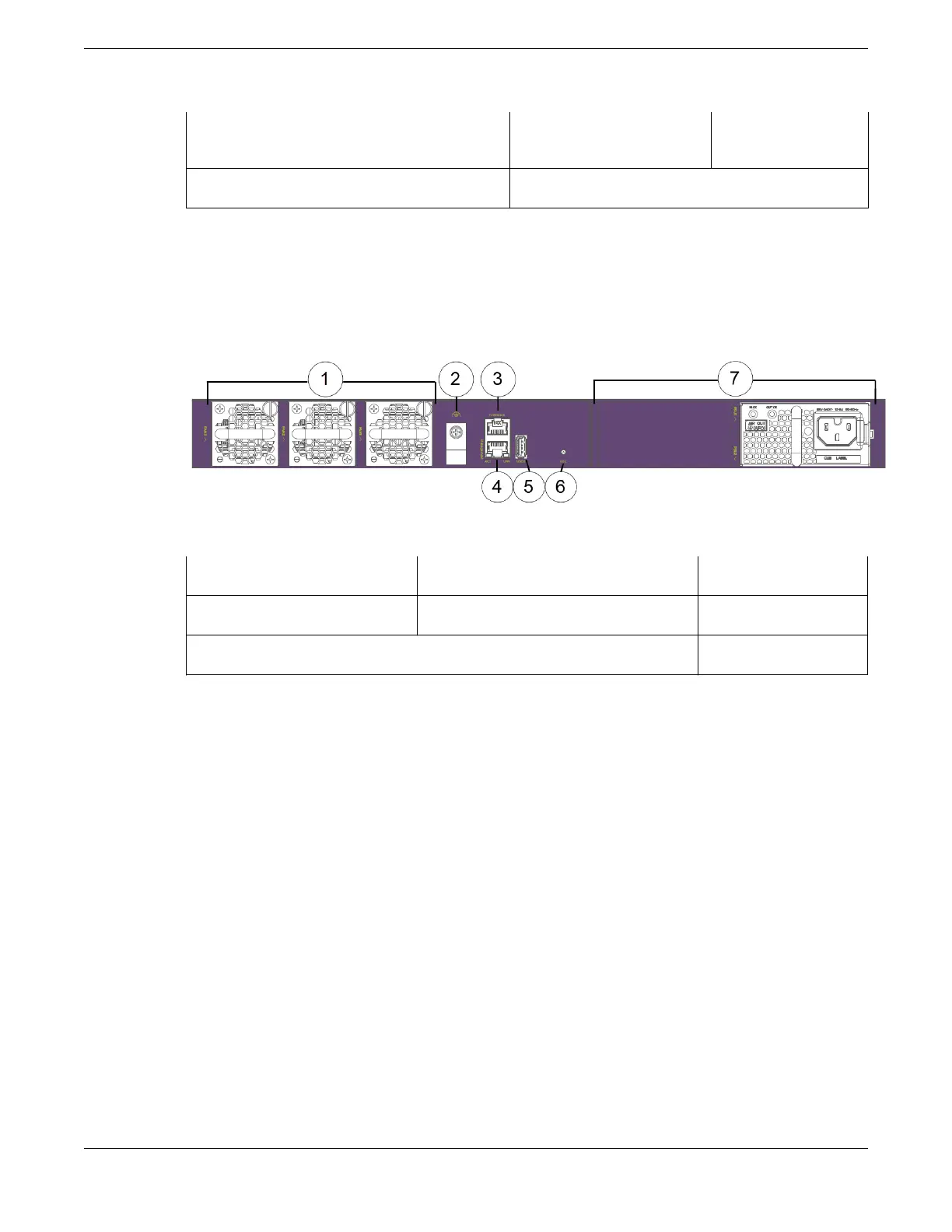

Figure 14: 5520-48SE Rear Panel
1 = Fan modules 3 = Serial console port 5 = USB 2 port
2 = Grounding lug 4 = OOB management port 6 = Locator LED
7 = Power supply slots
