links or downstream cascade ports to other V400 units. The SFP+ ports are the only ones that can be
used as uplink ports in a cascading configuration.
The V400 Virtual Port Extender requires that ExtremeXOS (EXOS) version 22.5 (or later) be installed on
the switch to which it is attached. For more information about configuring EXOS for use with this
equipment, see the ExtremeXOS 31.1 User Guide.

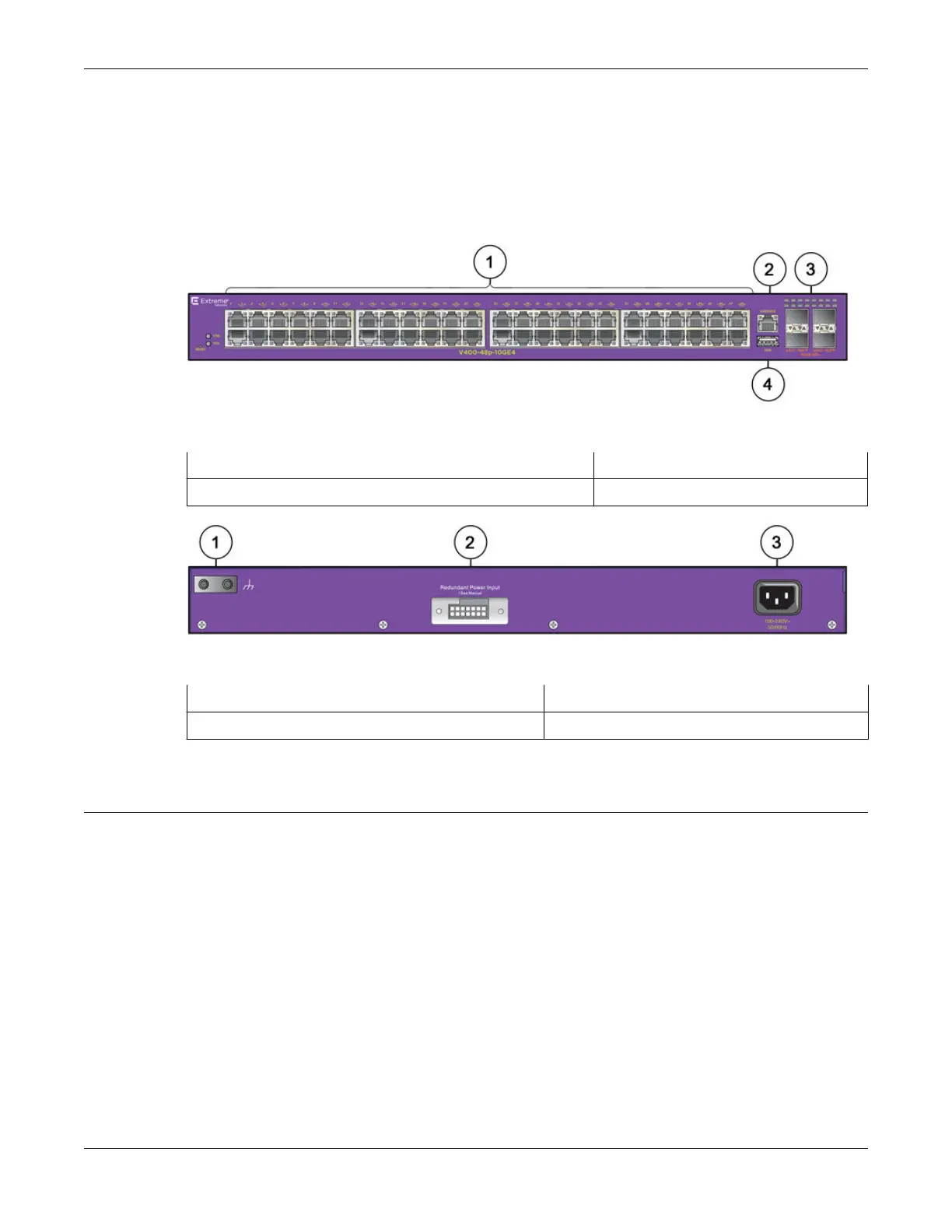

Figure 25: V400 Virtual Port Extender Front Panel (48-port Model Shown)
1 = 10/100/1000BASE-T ports 3 = 10Gb SFP+ ports
2 = Console/management port 4 = USB port
Figure 26: V400 Virtual Port Extender Rear Panel
1 = Grounding lug
3 = AC power input connector
2 = RPS connector (some models
Versatile Interface Modules for the ExtremeSwitching 5520 Series
Switches
You can install a versatile interface module (VIM) in a dedicated slot in the front panel of the
ExtremeSwitching 5520 Series switch to provide 10/25G dedicated high speed ports. The front panel of
every 5520 Series switch provides one slot to install the following:
• 5520-VIM-4X versatile interface module that provides four 10-GbE (SFP+) ports.
• 5520-VIM-4XE versatile interface module that provides four 10-GbE (SFP+) ports, LRM/MACsec
capable.
• 5520-VIM-4YE versatile interface module that provides four 25-GbE (SFP28) MACsec capable ports.
The 5520-VIM ports are 1-4 on the 5520-VIM faceplate.
In VOSS, the 5520-VIM slot number is 2.
5520-VIMs are ordered separately. Each VIM label can be found on the bottom side of the device, as
seen in the following
figure:
Expansion Modules
Versatile Interface Modules for the ExtremeSwitching
5520 Series Switches
ExtremeSwitching 5520 Series Hardware Installation Guide 33
