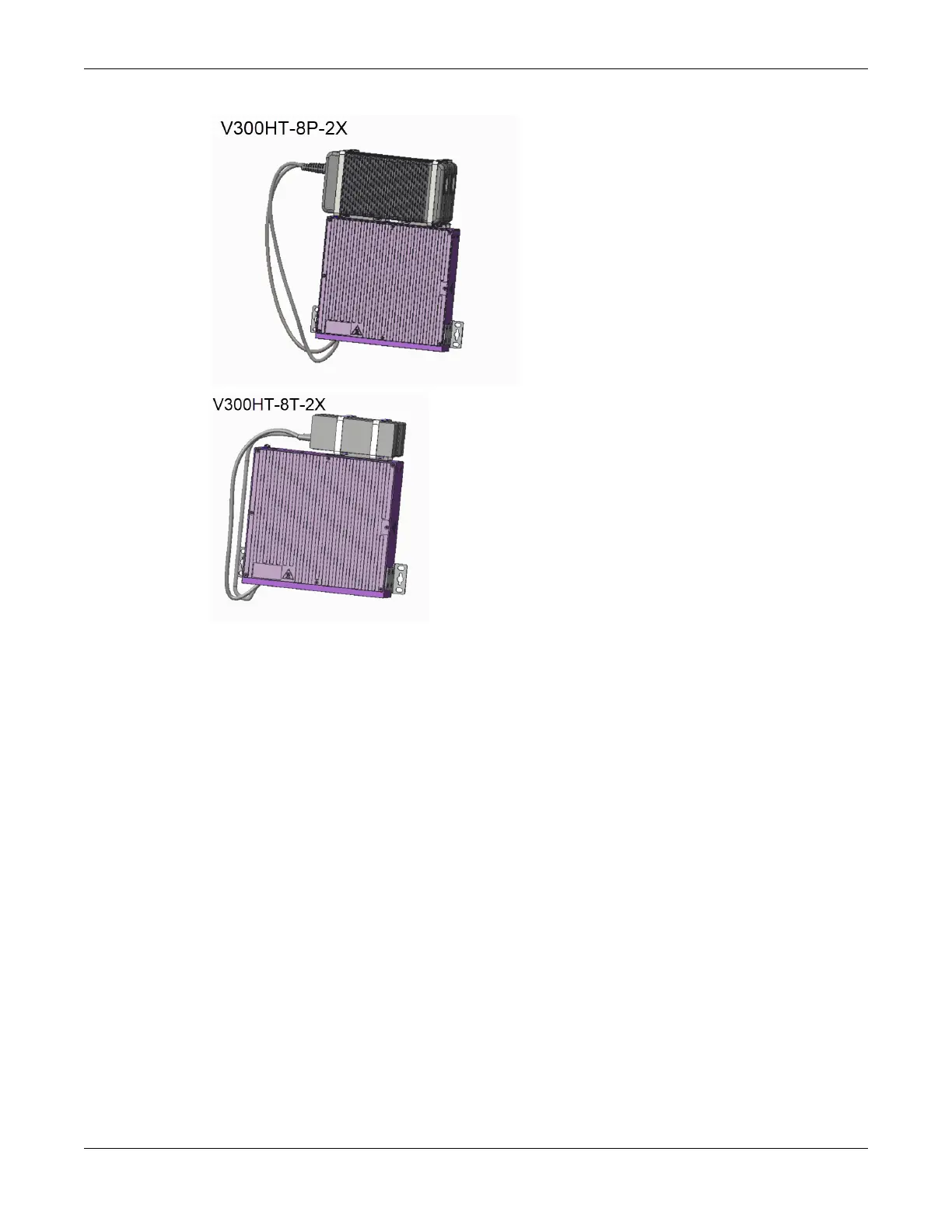

Figure 55: V300HT-8P/8T-2X Wall Mount with PSU
4. Drill the holes and attach the bracket using the provdied woodscrews and anchors.
5. Connect the LAN/Ethernet cables to the extender.
6. When power is connected, verify that the SYS LED on the port extender turns green.
Install a V300 Virtual Port Extender Under or on a Table Surface
The following tools and materials are required to install a V300 Virtual Port Extender under a table:
• ESD-preventive wrist strap
• M3.5 #2 Phillips screwdriver (magnetic screwdriver recommended) for PoE model
• M4 #2 Phillips screwdriver (magnetic srewdriver recommended) for non-PoE models
Typical installation for the V300-8P-2T-W model include wall or table installations, in addition to VESA
mounting.
For table surface or other
flat surface installation, attach the rubber feet to the underside of the virtual
port extender, then place the device to the table or flat surface:
Installing Expansion Modules
Install a V300 Virtual Port Extender Under or on a Table
Surface
ExtremeSwitching 5520 Series Hardware Installation Guide 91
