V300-8P-2T-W Model
The Virtual Port Extender V300-8P-2T-W model oers the following features:
• 8 10/100/1000BASE-T half duplex PoE+ ports
• 2 1000/BASE-T 802.3bt Type 4 ports
• PoE power
• Fanless
The V300-8P-2T-W model requires that ExtremeXOS (EXOS) version 30.2.2 (or later) be installed on
the switch to which it is attached. For more information about
configuring EXOS for use with this
equipment, see the ExtremeXOS 31.1 User Guide.

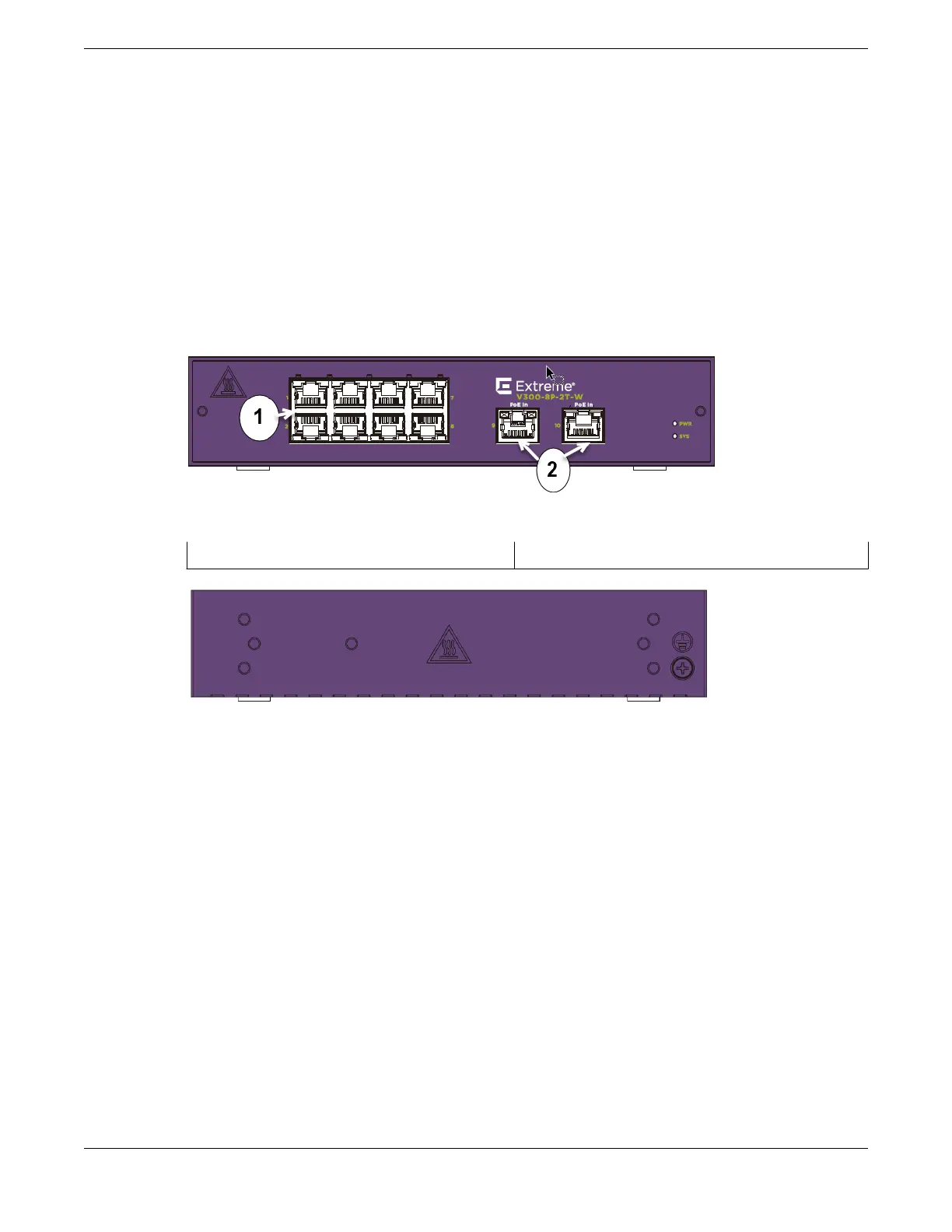

Figure 19: V300-8P-2T-W Front Panel
1 = 10/100/1000BASE-T PoE ports 2 = 1000/BASE-T 802.3bt PD up-link
Figure 20: V300-8P-2T-W Rear Panel
V300HT-8P-2X Model
The Virtual Port Extender V300HT-8P-2X model is a high-temperature model that oers the following
features:
• Eight 10/100/1000BASE-T half/full duplex PoE+ ports
• Two 10Gb SFP+ ports
•
One USB port
• One console/management port
• Two DC input ports
The V300HT-8P-2X model requires that ExtremeXOS (EXOS) version 30.5 (or later) be installed on the
switch to which it is attached. For more information about
configuring EXOS for use with this
equipment, see the ExtremeXOS 31.1 User Guide.
Expansion Modules
V300-8P-2T-W Model
ExtremeSwitching 5520 Series Hardware Installation Guide 29
