Extron electronics Quantum Elite Series - Quantum Elite 408 and Quantum Connect Rear Panels

Quantum Series Videowall Processing Systems • Installation and Maintenance 22
Quantum Elite 408 and Quantum Connect Rear Panels
The Quantum Elite 408 and Quantum Connect 84 and 82 rear panels have 11 slots in
which cards are installed:
• Quantum Elite 408 — Has eight slots in which cards can be installed to order, plus
three slots in which cards are permanently installed. The rear panel also contains the
power connector and vents.
• Quantum Connect 82 and 84 — Have eight slots that contain HDMI input and
output cards. Connect 84 has four HDMI input cards and two HDMI output cards.
Connect 82 has four input cards and one output card.

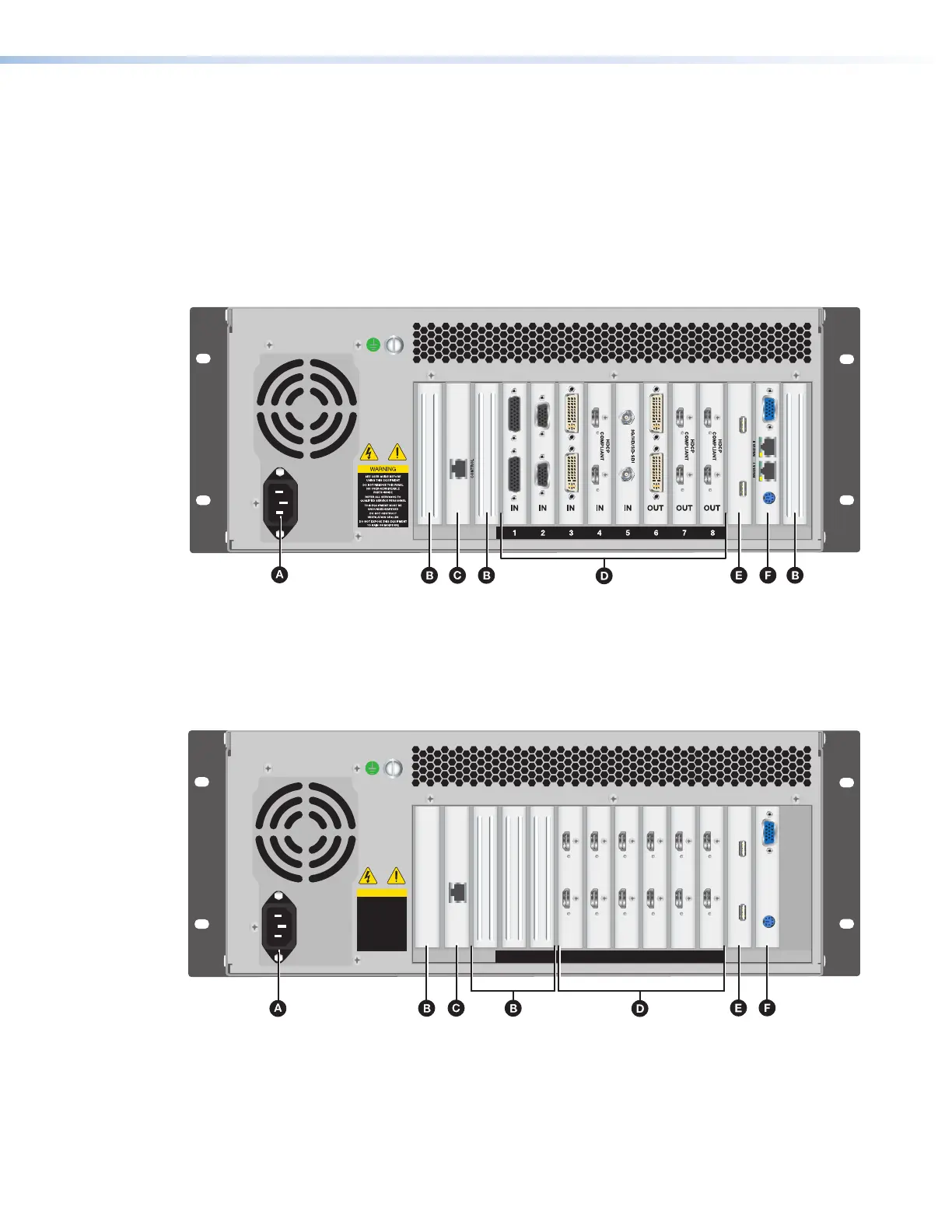

Figure 15. Quantum Elite 408 Rear Panel
A
Power connector
D
Input and output cards
B
Unused slots
E
USB card
C
Control card
F
Monitor, Media I and Media II network,
and keyboard and mouse ports
12345678
CONTROL
WARNING
SEE USER GUIDE BEFORE
USING THIS EQUIPMENT
DO NOT REMOVE THIS PANEL
NO USER-SERVICEABLE
PARTS INSIDE
REFER ALL SERVICING TO
QUALIFIED SERVICE PERSONNEL
THIS EQUIPMENT MUST BE
GROUNDED/EARTHED
DO NOT OBSTRUCT
VENTILATION GRILLES
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
OUT
HDCP
COMPLIANT
OUT
HDCP
COMPLIANT
IN
HDCP
COMPLIANT
IN
HDCP
COMPLIANT
IN
HDCP
COMPLIANT
IN
HDCP
COMPLIANT
Figure 16. Quantum Connect 84 Rear Panel
A
Power connector
D
HDMI input and output cards
B
Unused slots
E
USB card
C
Control card
F
Keyboard and mouse ports
