12. Place the top clamp(s) on the rear side of the gas generator(s) to secure the gas
generator(s) in the rear cradle.

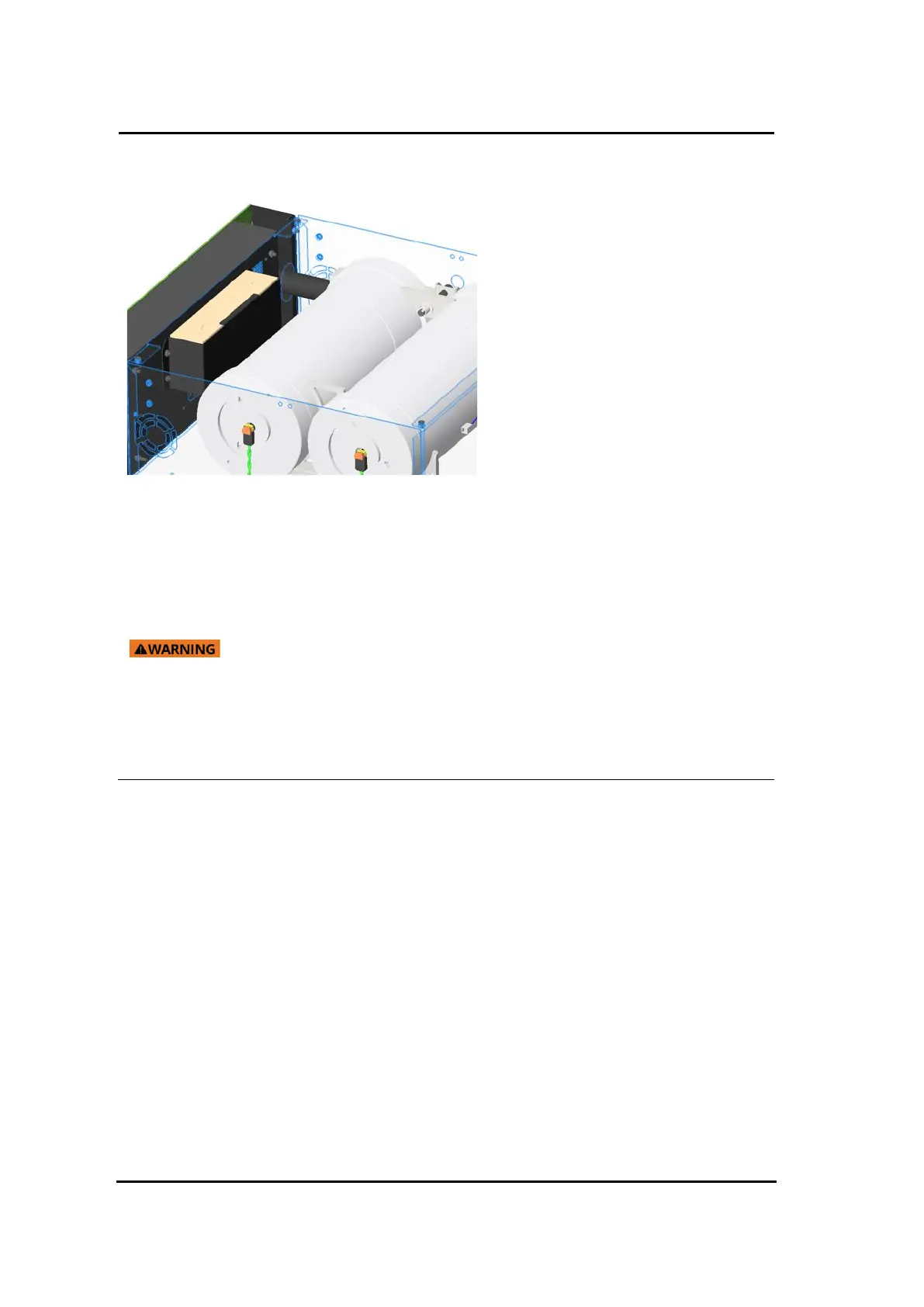

Figure 20 Squib connection
13. Connect squib cables (you will hear a clicking sound) and press the orange locking buttons
on the squib connectors
14. Place the top cover again and fasten with the screws.
• A damaged product (e.g. when dropped) results in a hazardous situation! Leakage of
chemicals, toxic release is possible! See: 0 how to handle in a hazardous situation.
• In case of activation of the CGG: see 2.2 Operational
