version 4.7.2 – July 10th, 2022 Firmware version V2.1.7 and higher
EXXFIRE Installation and Service Manual 39

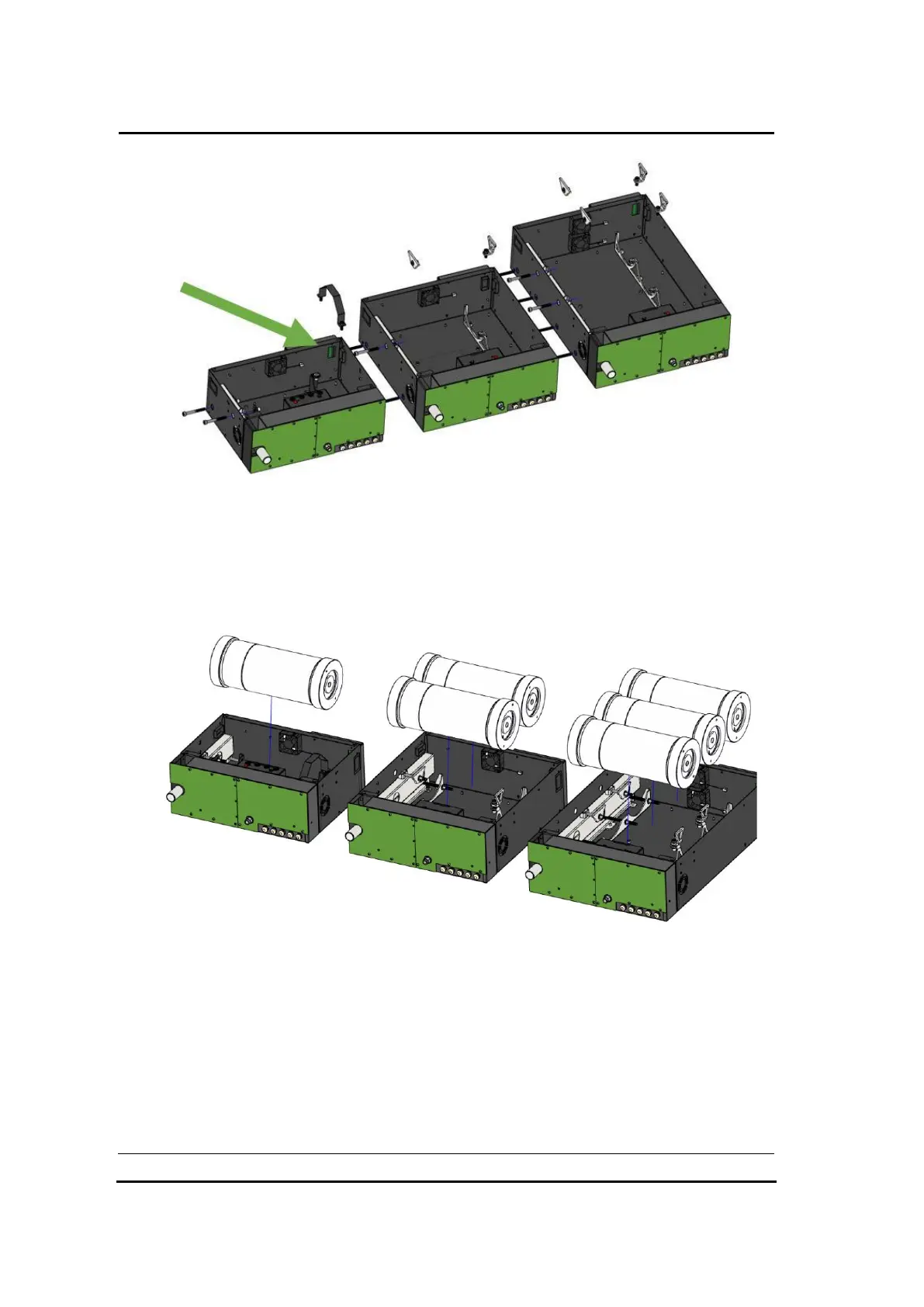

Figure 18 Removing CGG clamp
7. Remove the CGG clamp screws and clamps and other material that was needed for
transportation (e.g. PE Foam in between the clamps and manifold puller).
Figure 19 CGG mounting
8. Place the CGG’s with tight compression of the gasket on to the manifold!
9. Start with tightening the bolts of the front puller until there is just a small spacing between
manifold and the gas generator(s) (< 1mm).
10. Place the top puller(s) and place and tighten the bolt until the generator (s) touch(es) the
manifold.
11. Re-tighten all bolts at the frontside just enough until there is no visible spacing between
generator(s) and manifold.
