version 4.7.2 – July 10th, 2022 Firmware version V2.1.7 and higher
EXXFIRE Installation and Service Manual 42
17. Install the mounting plate according to the drilling template after determining the best position
for the gas pipe and aspiration tube (for some cabinets it may be useful to first determine what
the best possible place is for the aspiration tube. So strictly following the drilling template will
not always be the best solution).

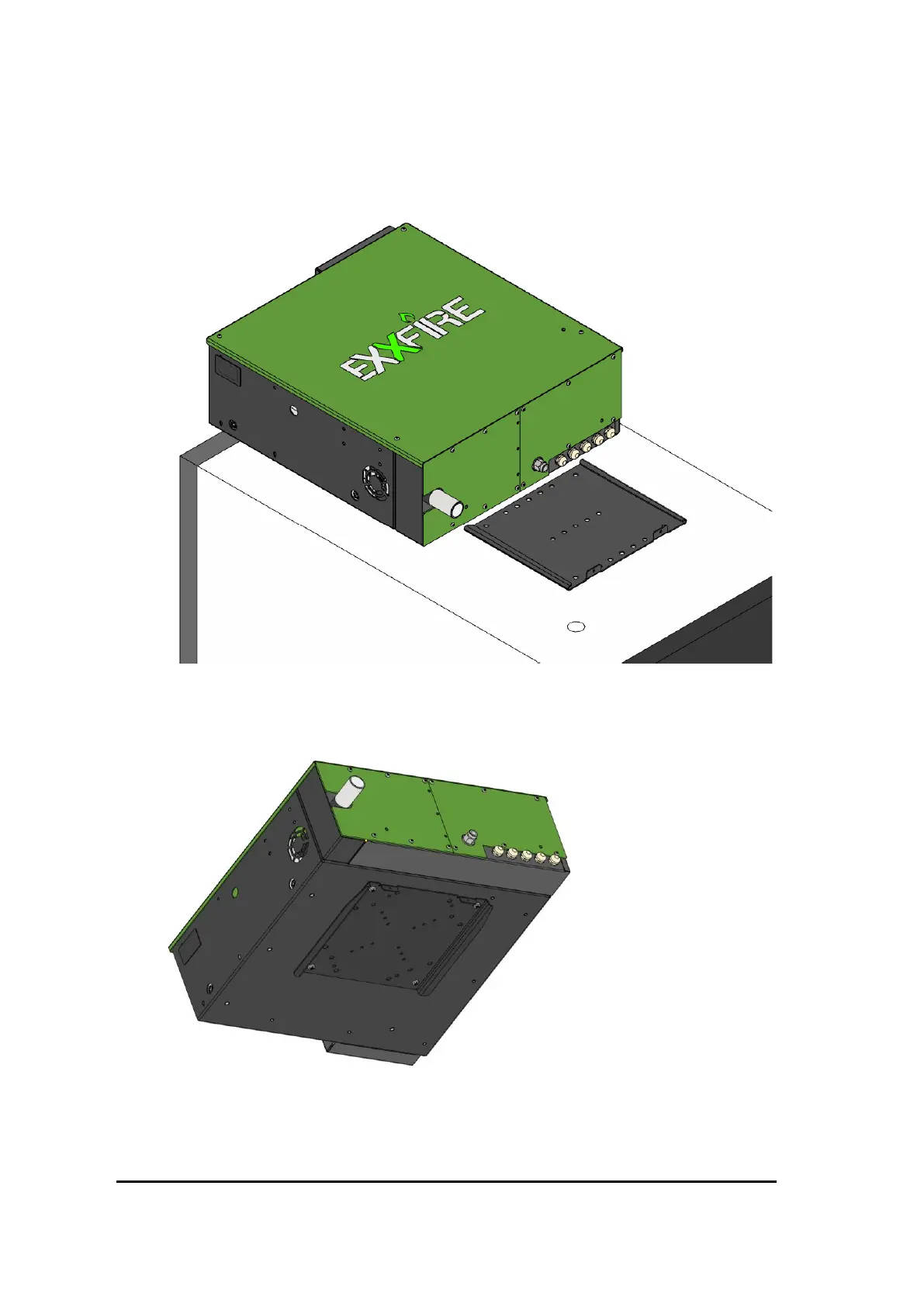

Figure 23 Installing ExxFire onto mounting plate
18. Mount the EXXFIRE unit to the mounting plate. (one part to the Exxfire + one plate on the
cabinet)
Figure 24 Bottom view mounted ExxFire
