EXXFIRE 750CNF - Page 43

version 4.7.2 – July 10th, 2022 Firmware version V2.1.7 and higher
EXXFIRE Installation and Service Manual 43
19. Place the pipe grommet in the 32-mm hole, mount and secure the system on the receiving part
of the mounting plate.

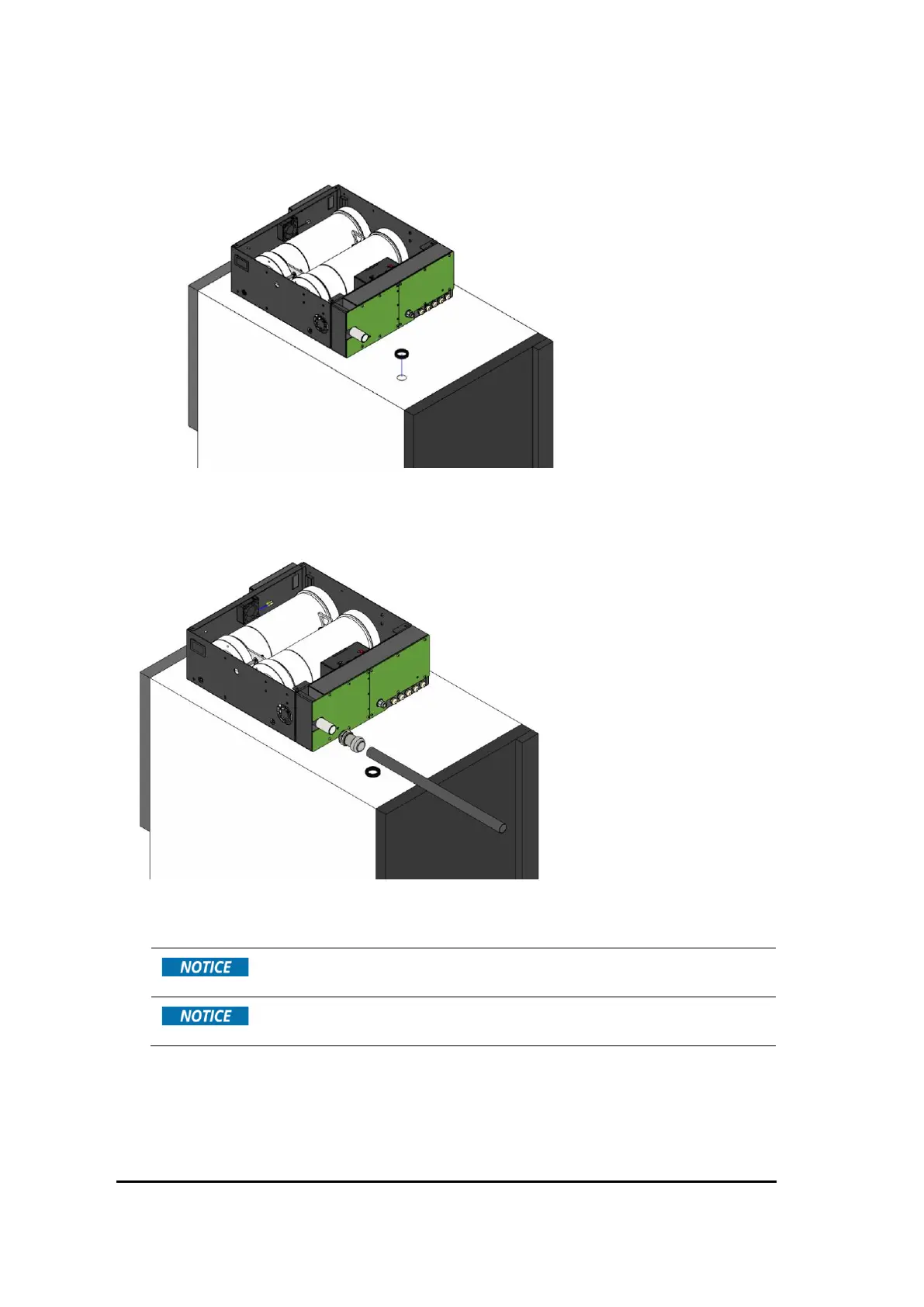

Figure 25 Grommet installation
Figure 26 Connecting gas pipe
20. Install the extinguishing pipe(s).
Saw the horizontal pipe to length if necessary.
Firmly push the straight connector onto the outlet pipe of the unit.
