version 4.7.2 – July 10th, 2022 Firmware version V2.1.7 and higher
EXXFIRE Installation and Service Manual 48

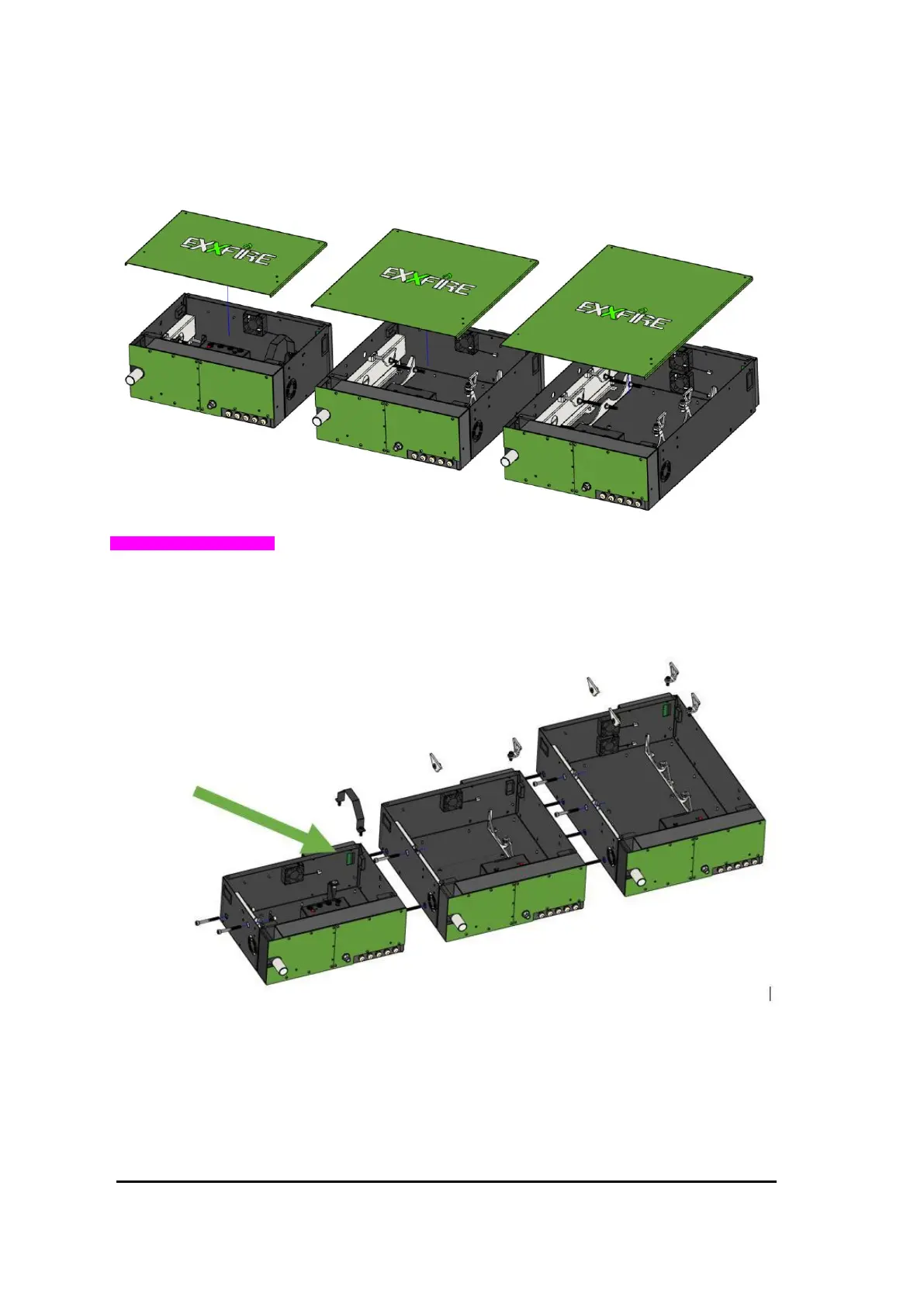

8. Remove screws of top cover
9. Remove the top cover and disconnect the earth cable to the top cover.
Figure 33 Removing CGG clamp
10. Remove the CGG clamp screws and clamps and other material that was needed for
transportation (e.g. PE Foam in between the clamps and manifold puller).
