1.1.1 Connectors

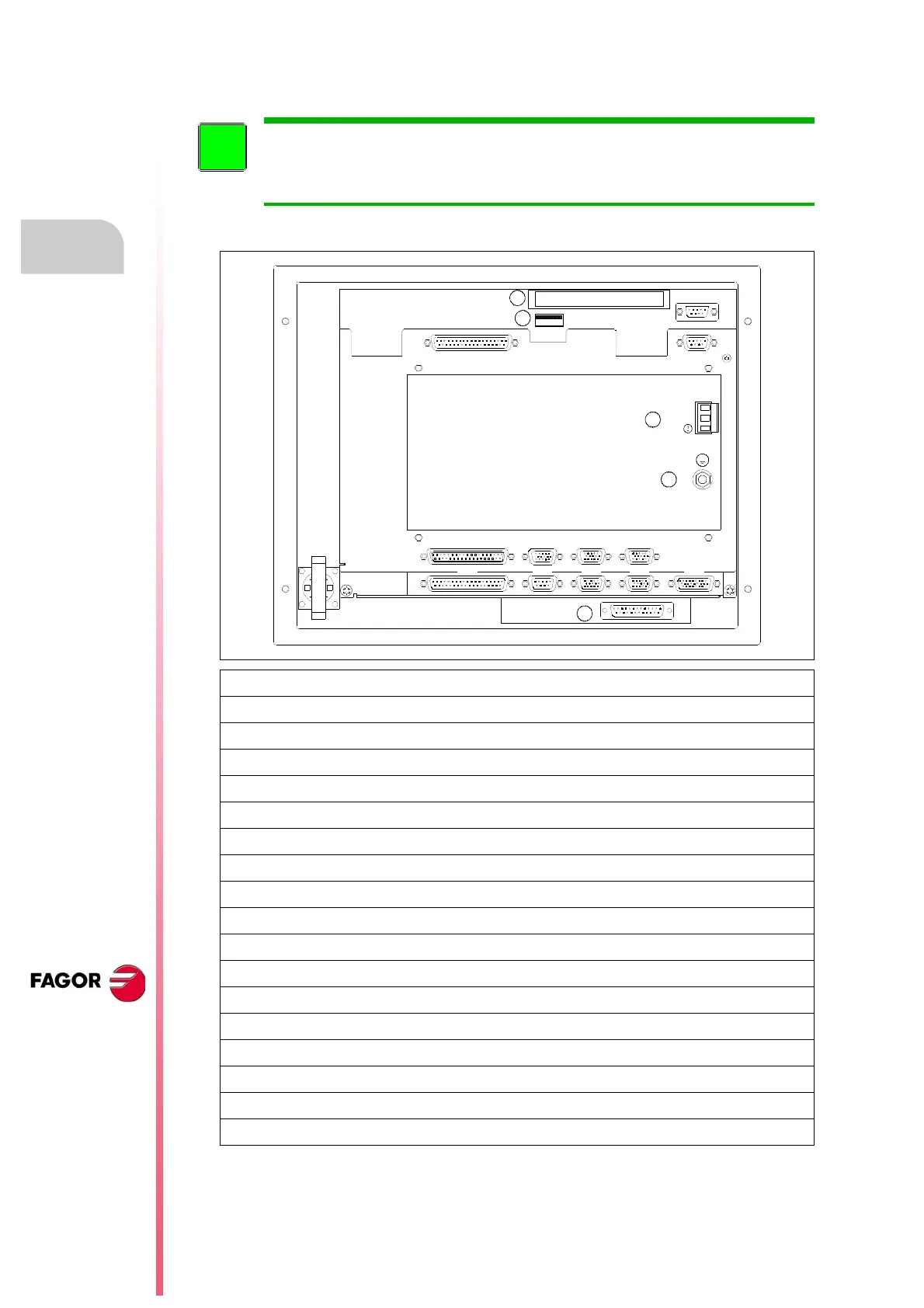

The connectors are located in the rear of the CNC.
From versions V11.1x and V12.1x on, there is a new axes board that includes the
recognizance of 24V at the inputs and outputs. This board will appear in Diagnosis
> Configuration > Hardware with the name of "Axes 3". This board is not compatible
with previous software versions.
(A) Power supply.
(B) Ground connection.
(C) To connect the USB hard disk (Pen Drive).
(D) Operator panel.
(E) To connect the communications board.
X1 For RS232 serial line connection.
X2 For digital I/O connection (I1 through I16 and O1 through O8).
X3 For probe connection.
X4 For analog spindle connection.
X5 For electronic handwheel connection.
X6 For Operator Panel connection.
X7 For digital output connection (O33 to O48).
X8 For axis velocity command connection.
X9 For digital input connection (I65 to I88).
X10 For feedback connection of the first axis.
X11 For feedback connection of the second axis.
X12 For feedback connection of the third axis.
COMPACT FLASH Slot for the local hard disk (KeyCF).
+24V
0V
X9 X11X10 X12
X2 X3 X4 X5 X6
X8
X7
X1
B
A
C
D
E
