Fargo DTC1250e User Manual

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 107

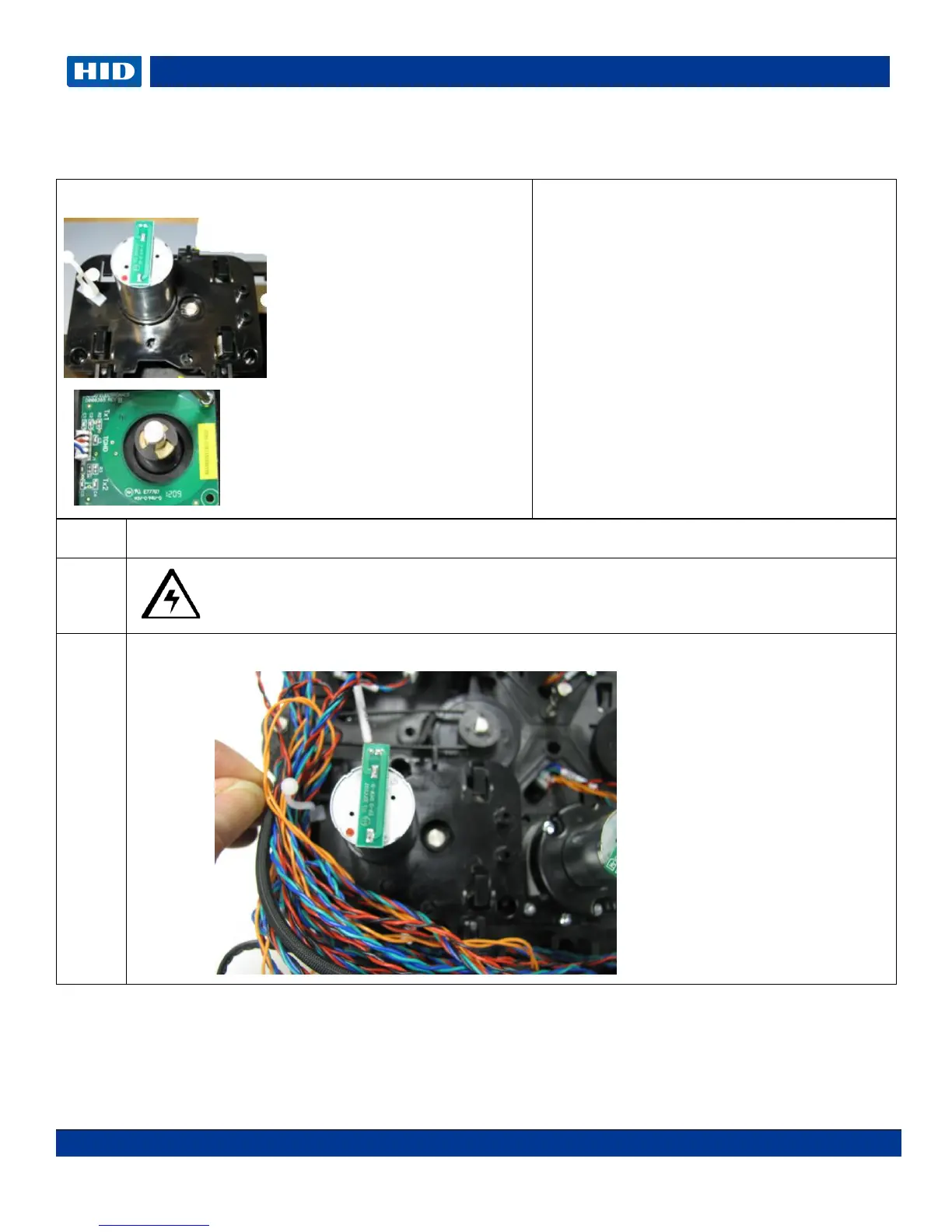

Remove/Replace the Rewind Motor Assembly RFID Board A000365-01
Encoder Sensor A000126
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Unclip the Wire bundle for better access.
A000126
A000365-01
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 30 min
Preparation: Remove the Lamination
Module Covers.
Important: This procedure can only be
performed by authorized service personnel.
NOTE: The Dual Side Lamination Module
uses 2 Rewind Motor Assemblies.
**Picture shown below is the LOWER
Rewind Assembly.

Fargo DTC1250e Specifications

General

Print Technology	Dye-Sublimation / Resin Thermal Transfer
Print Resolution	300 dpi
Card Capacity	Input Hopper: 100 cards; Output Hopper: 30 cards
Card Sizes	CR-80, CR-79 Adhesive Back
Connectivity	USB 2.0
Memory	32 MB RAM
Card Thickness	9 mil to 40 mil
Operating System Support	Windows 7, 8, 10
