Fargo DTC1250e - Remove;Replace the Flipper Assembly Stepper Motor - E001192

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 84
.

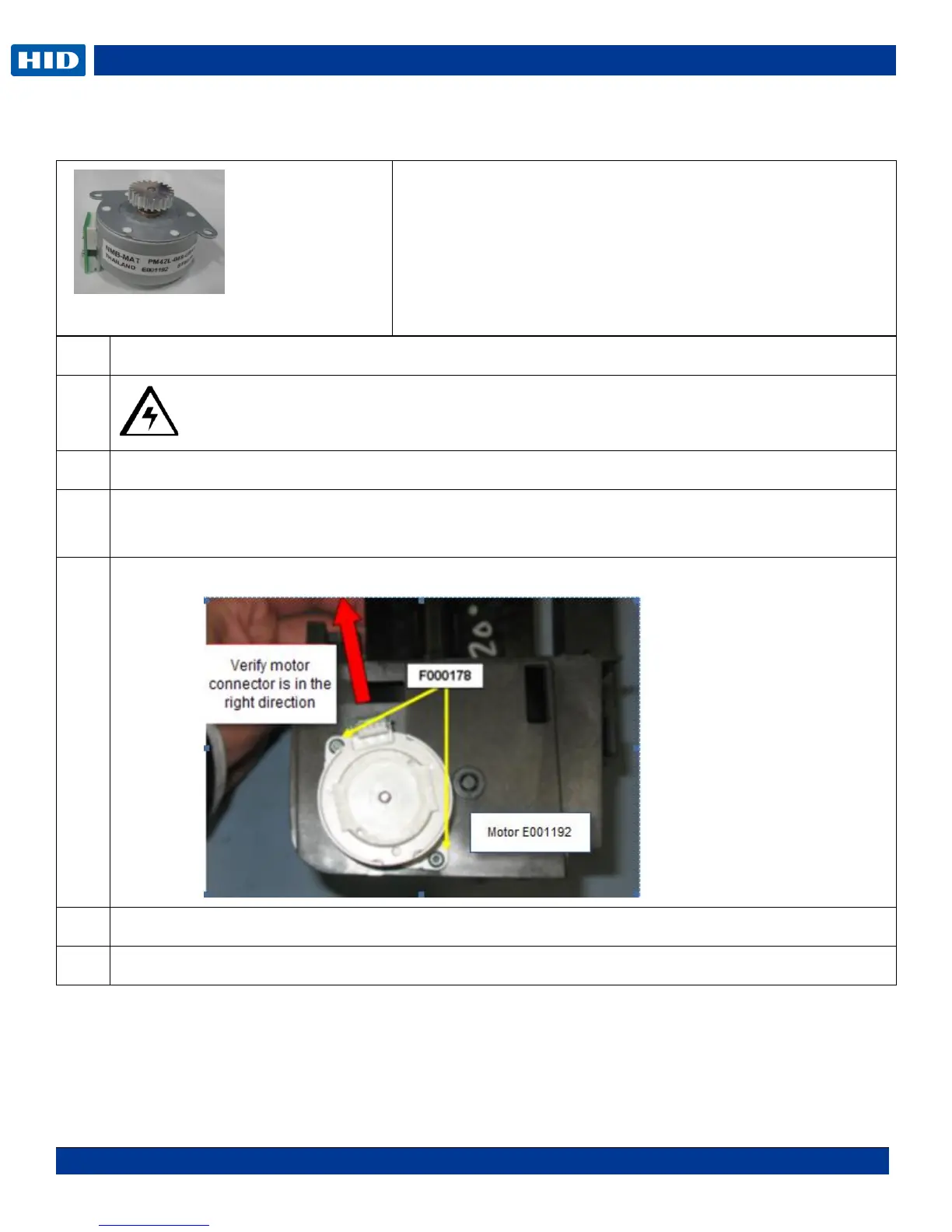

Remove/Replace the Flipper Assembly Stepper Motor – E001192
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the Flipper Covers.
3
Disconnect the cable (D930610) from J5 on the PCB.
If replacing this cable make NOTE: of how the wire is routed.
4
Remove the 2 screws (F000178) that hold the motor to the frame.
5
Replace with new motor
6
Procedure is complete
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 20 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
Stepper Motor Cable (D930610)
